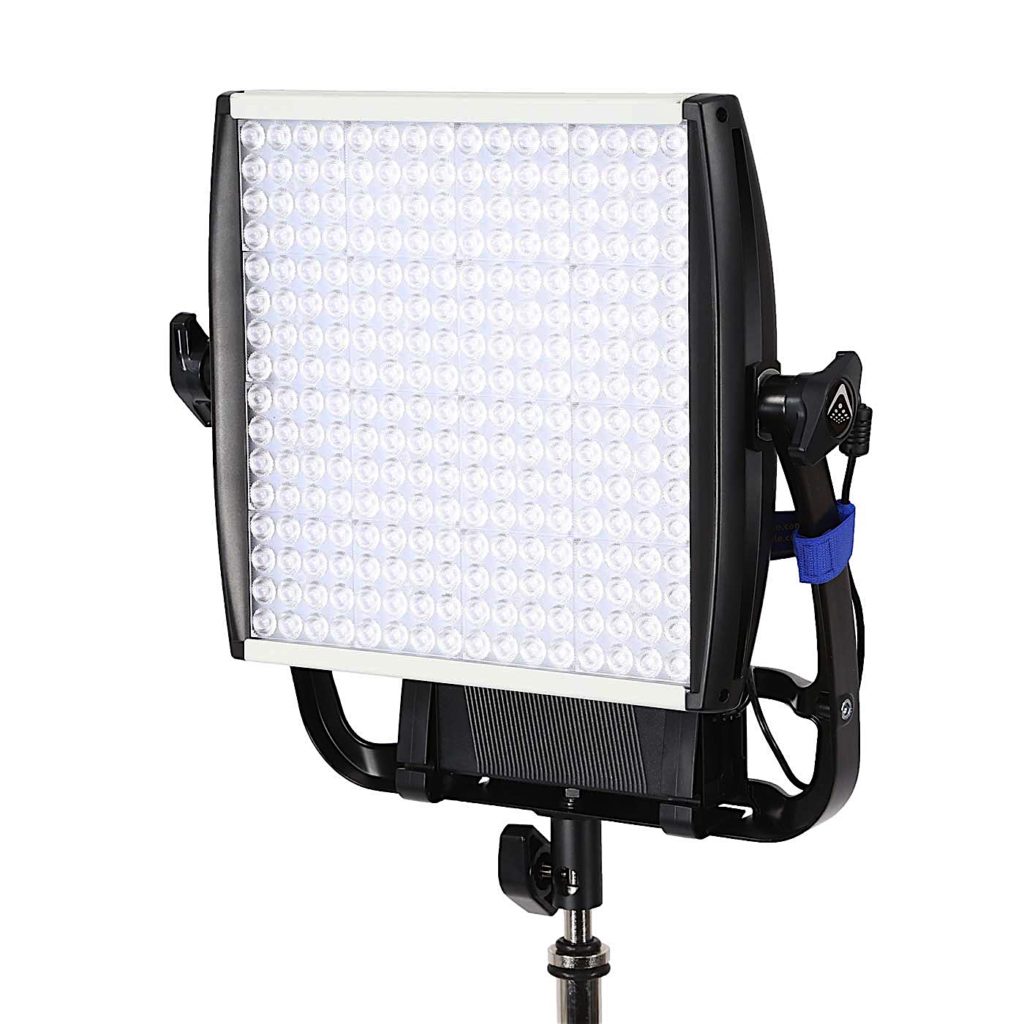

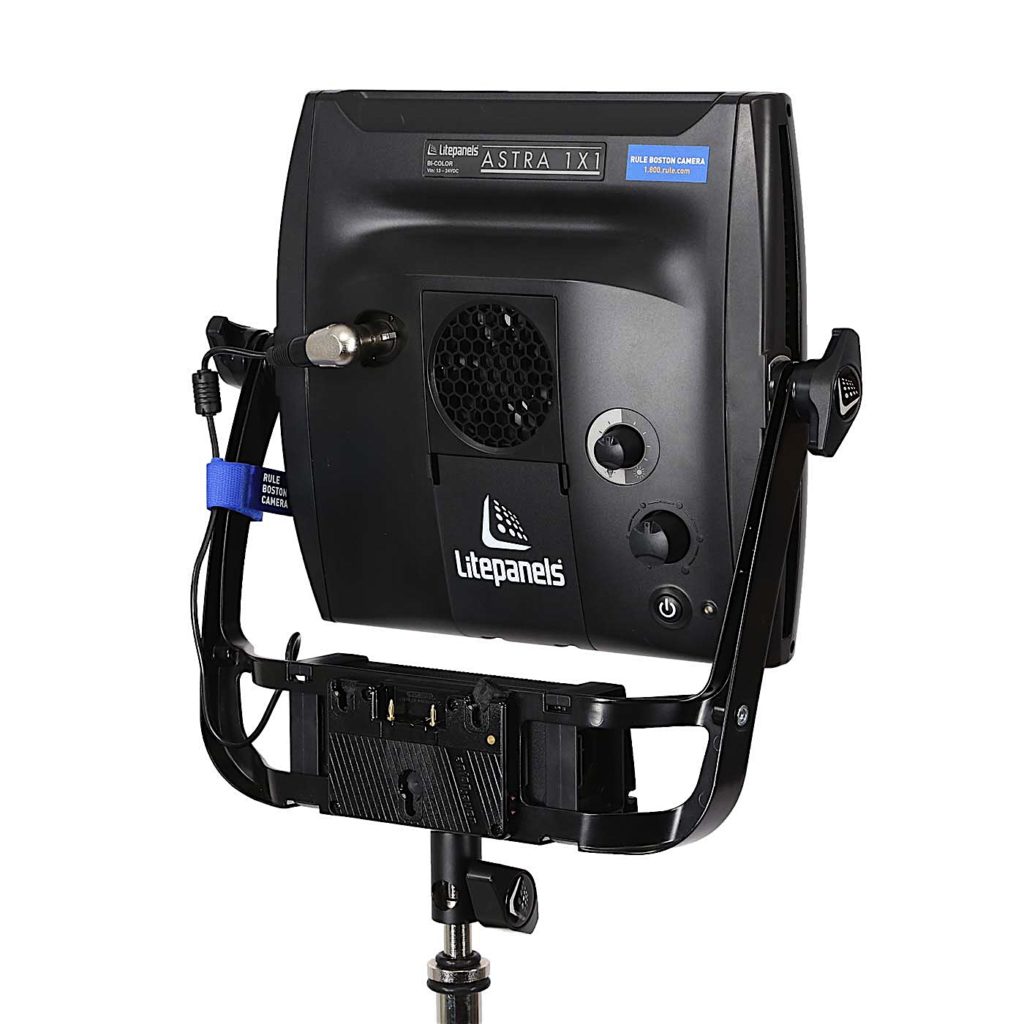

Litepanels Astra 1×1 Bi Color Flood Light

The ASTRA 1×1 Bi-Color panel builds on the legacy of the original 1×1 fixture, which revolutionized the lighting industry. This innovative daylight to tungsten tunable color model was years in the making, with every design element of this next generation panel being meticulously crafted. Following the Litepanels tradition of a one square foot form factor, the ASTRA series is designed with select premium quality, high CRI, surface mount LEDs and paired with custom designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the ASTRA 1×1 with superior color reproduction and a light output that is up to four times brighter than traditional LED panels. This higher intensity results in a longer throw and illuminates a wider area, allowing the panel to compete with strong exterior light sources or illuminate a large area effectively with just a single fixture.

An optional Chimera Softbox is available for this ligh. Please request this with the rental department when placing your order.



  • Output is 4X brighter than the original 1×1 LED panel
  • Superior color reproduction
  • Efficient thermal management with user selectable dual cooling mode
  • Ultra-smooth dimming from 100% to 0
  • Flexible, modular concept
  • Modern fixture design
  • Custom curved yoke design
  • Fixture type: Panel Lights
  • Color temperature: Bi-color
  • Beam angle (degrees): 45
  • Max. power draw (Watts): 110
  • Comparative output: 575W HMI 2kW Tungsten Softlight
  • Optics: Custom TIR Lens
  • Weight: 7 lbs
  • Power supply: AC/DC 120-240VAC

Astra 1×1 LED Fixture
AC Power Adapter with AC Cable
Anton Bauer Batter Plate
DTap to FXLR3 Power cable
Opal Frost Diffusion Gel

Litepanels Astra 1×1 Bi Color Flood Light
