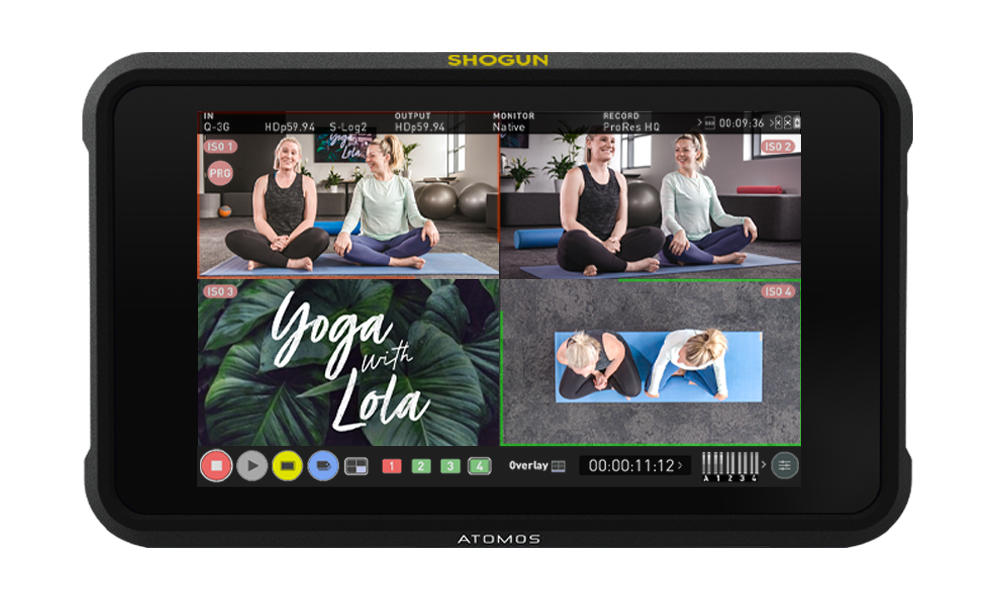

Functioning as a monitor, recorder and switcher, the Atomos Shogun 7 is a versatile tool for any type of filmmaker. The 7″ HDR full HD display is impressively bright with deep contrast and renders color accurately in a variety of color spaces. It can also record up to 6K raw (SDI only), including 60fps DCI 4K raw to a 2.5″ SSD via either SDI or HDMI, preserving metadata and audio in the process. For live events, the Shogun 7 can also be used as a 4 channel switcher. It can record all 4 channels in 1080 HD simultaneously, as well as a 5th “program” channel, which can be outputted for live streaming as well.

• Full HD HDR, high bright display
• Monitoring and color adjustment tools
• Record up to 6k raw via SDI and 4K raw via SDI/HDMI
• live, 4 channel + program switching
• Battery, DTap or DC powered

• 7.2″ 1900 x 1200 HDR Display
• Brightness: up to 2,000 nits
• Resolutions (record/monitor): 6K RAW (SDI only), 4K DCI/UHD, 2K DCI, 1080, 720
• Recording Codecs: CDNG (SDI RAW), ProRes RAW, ProRes LT/422/422HQ, DNxHD, DNxHR
• Switching: up to 4x inputs + program
• Input: HDMI, quadlink 3G SDI with 2x 12G SDI
• Video Conversion: SDI – HDMI, HDMI – SDI
• Power: Sony L Series Batteries, DTap

Shogun 7 Recorder
(2) DC Plug to A/B DTap Cable
Hyperthin HDMI Type (A) – (A)
USB 3.1 Type A to SATA Adapter
Noga Articulating Arm
Mini 15mm Rod Clamp Widget
AC Power Supply
Sony NP-F “L” Charger & AC Cable
(4) NP-F970 Battery
