Description

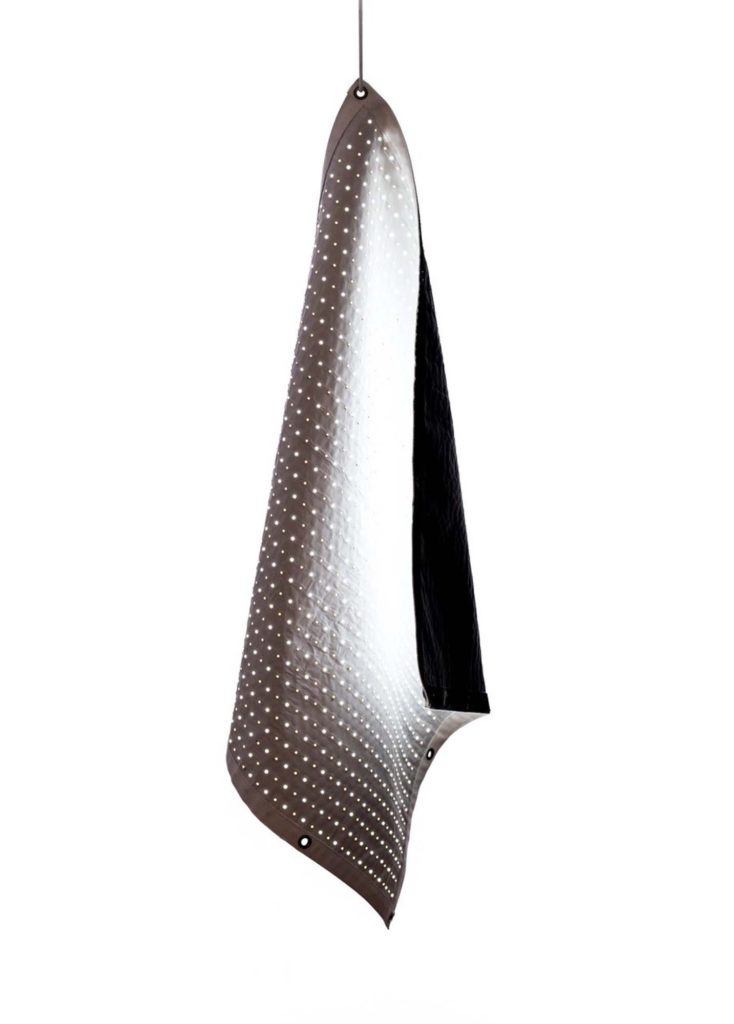

The Aladdin Fabric-Lite is a completely lightweight, flexible, and foldable 3×3 foot cloth of light. The fixture is Bi-Color and the color temperature can be adjusted from 2900K to 6300K.
The Fabric-Lite is incredibly portable and can be folded up for easy transport.

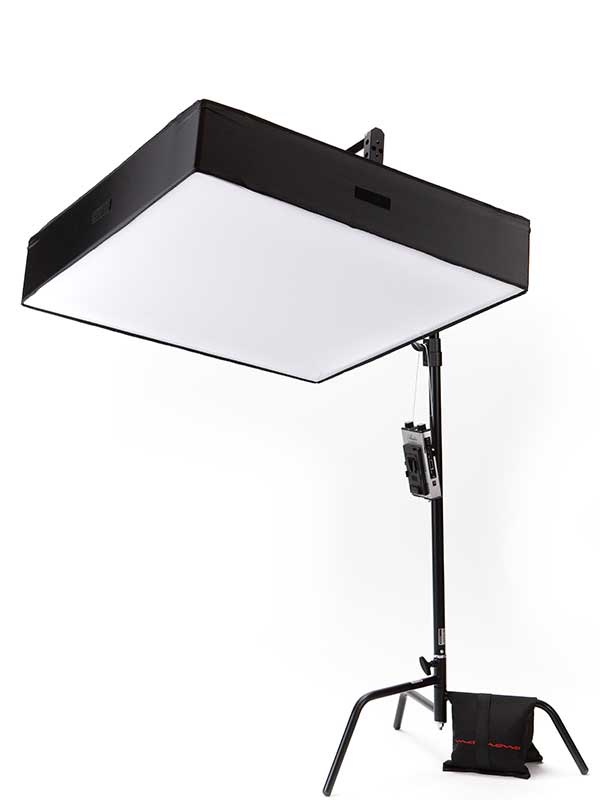

Mounting options for the Fabric-Lite are only limited to your imagination, but a frame with grid and diffuser is provided for using the Fabric-Lite as a more traditional, but still compact soft source.
The 350 watt light may be powered by AC or a pair of Anton Bauer gold mount batteries. You can control the light wirelessly by Lumen Radio or via wired DMX512.
The light has a high TLCI of 97 for very accurate color rendering.
Features
• Foldable design makes it easy to carry around or neatly fold away for transport
• Can be used in a frame with Diffuser and Grid as a traditional but lightweight fixture
• High Output, High Quality LED – TLCI 97
Specifications
Super high CRI Power LED’s: 350W
CRI 97 / TLCI 97
Color Temperature: 2900°K – 6200°K
Beam Angle: 140°
Square sheet dimension: 900mm x 900mm
Square sheet LED array: 30 x 40
Output Power: Up to 350W
Dimming step: 0.5% – 100%
Dimming resolution: 0.1%
Input Power: DC48V or 2x26V Battery
User Display: Graphic OLED (128×64)
Wired DMX: DMX512 protocol with In/Out port / 2 Channels
Wireless DMX: LumenRadio
CRI Daylight: 97
Bi-Color: 97
Tungsten: 98
TLCI Daylight: 98
Bi-Color: 98
Tungsten: 98
Lux Tungsten to Daylight:
60cm / 2ft 15400-17800 lux
1m / 3,3ft 7910-8940 lux
2m / 6,6ft 2340-2670 lux
3m / 9,9ft 1150-1300 lux
Includes
• Fabric-Lite 350W
• Fabric-Lite Storage Bag
• Frame:
(8) Corner Pieces
(4) Short Tubes
(6) Long Tubes
(2) Positioning Tubes
Mounting Tube
(6) Ball Bungees
• Dimmer Unit
• Gold Mount Battery/AC Unit
• (2) AC Power Supply w/(2) AC Cable
• Dimmer to AC Unit Jumper Cable
• 6’ Header Cable
• 16’ Header Cable
• Diffusion Screen
• Grid with Storage Bag
• (2) Gold Mount Power Supply Plate
