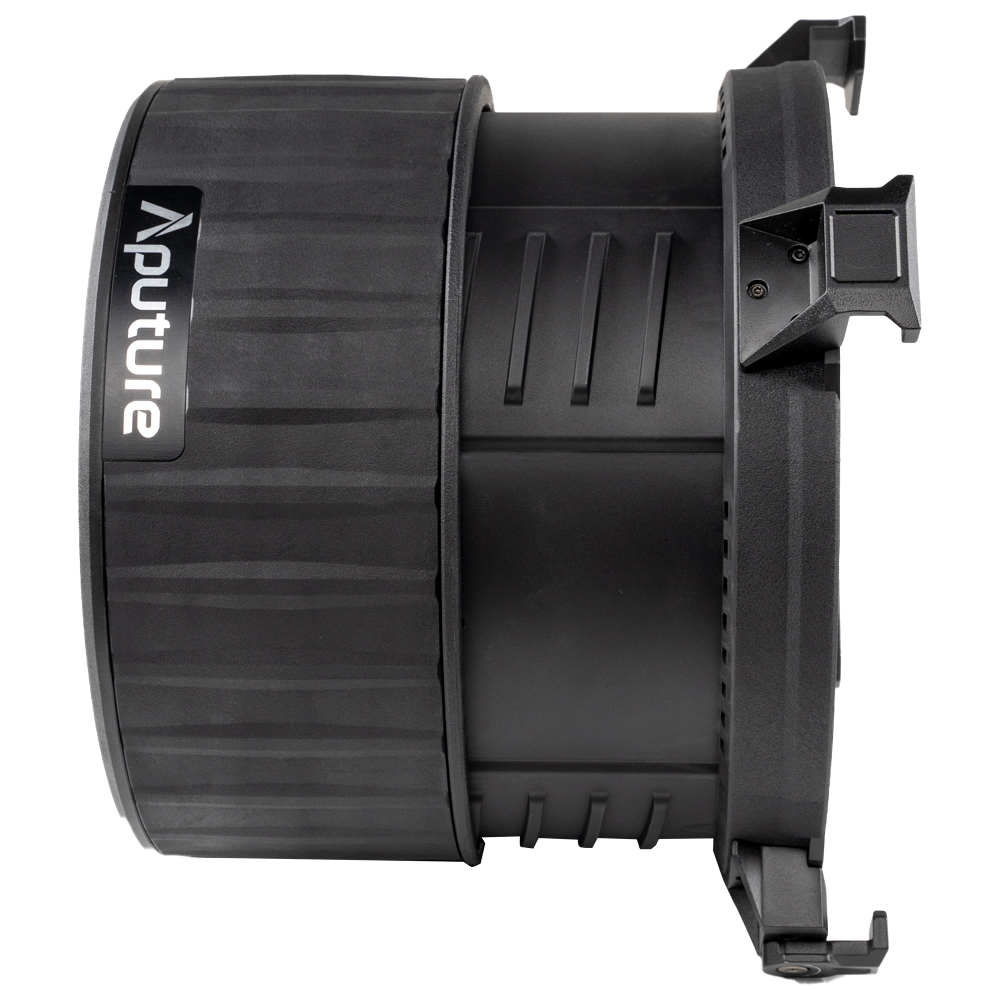

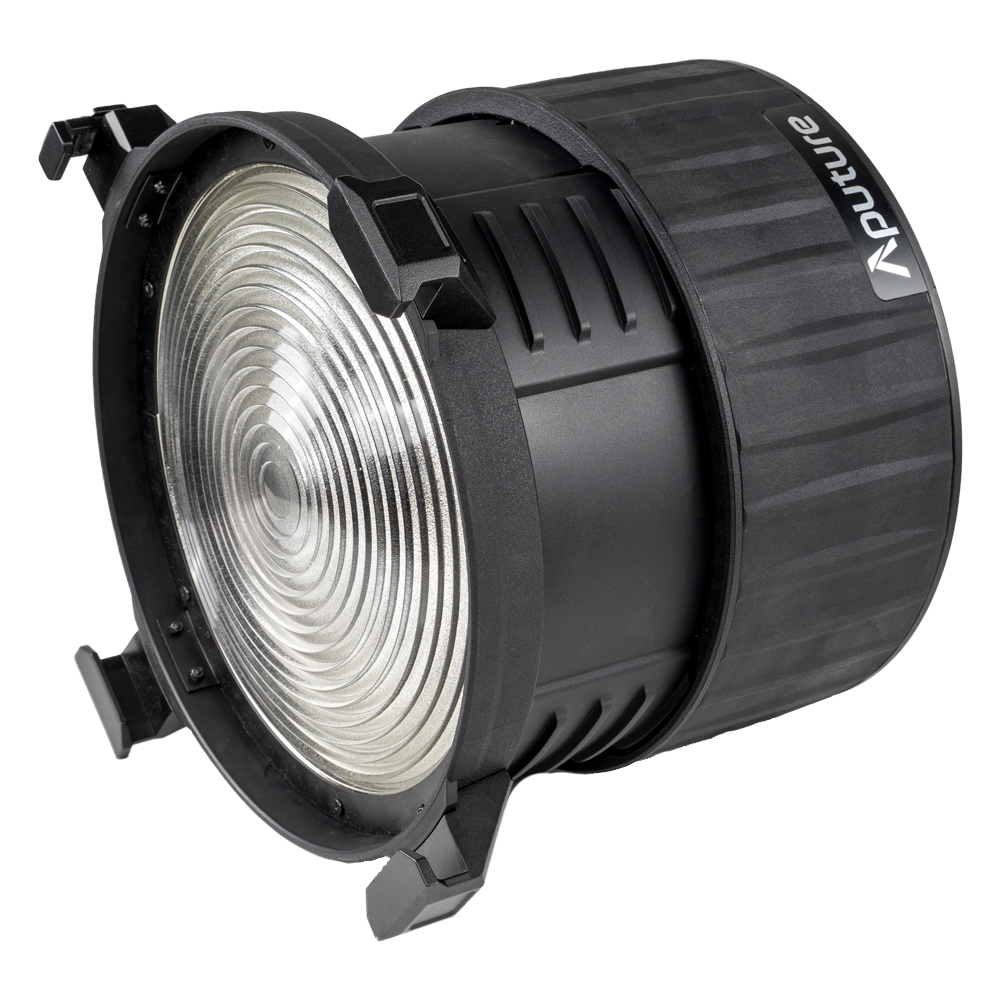

Aputure F10 Fresnel

The Aputure F10 Fresnel is the first industry-standard 10-inch Fresnel made for modular Bowens Mount fixtures. With its wide 250mm (9.84in.) glass Fresnel, the F10 both immensely intensifies the output of a point-source LED, but also results in a quality of light lighting technicians will find similar to a Tungsten 5K or Studio 2K. It uses a two-stage optical system to maximize light output.

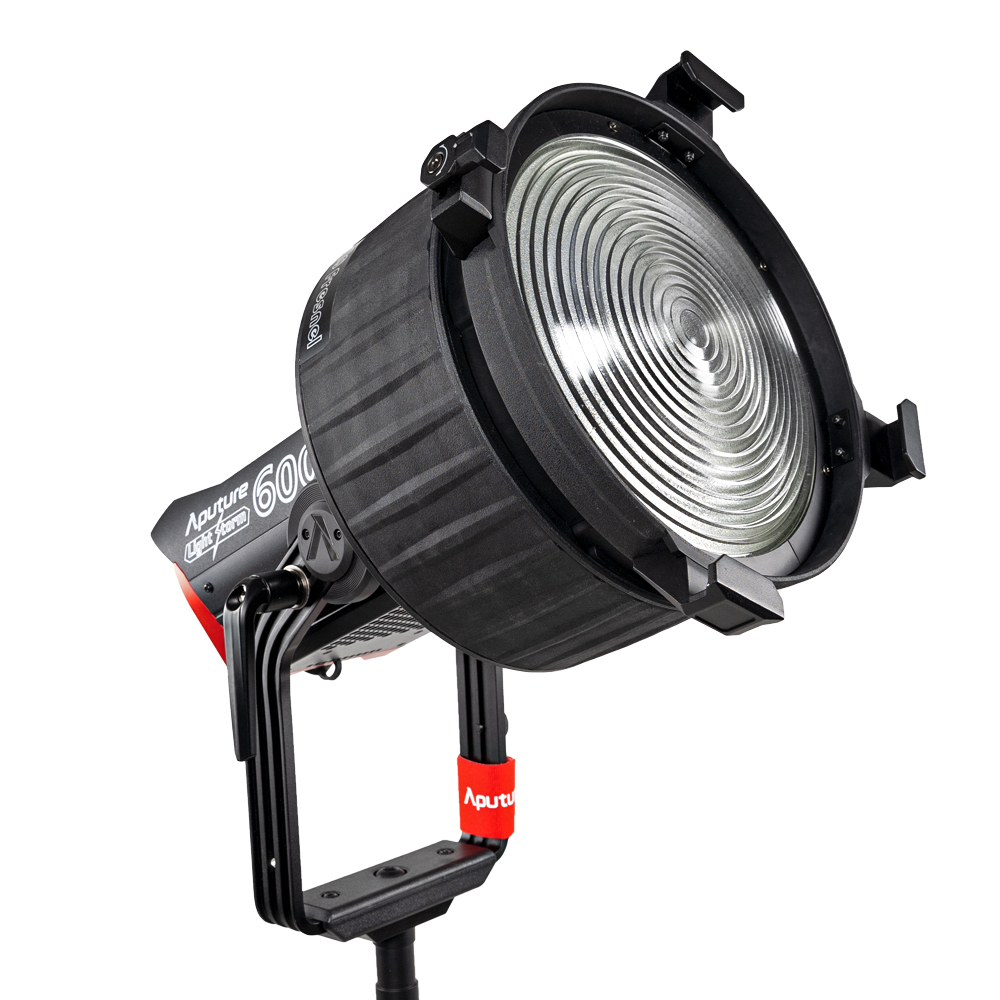

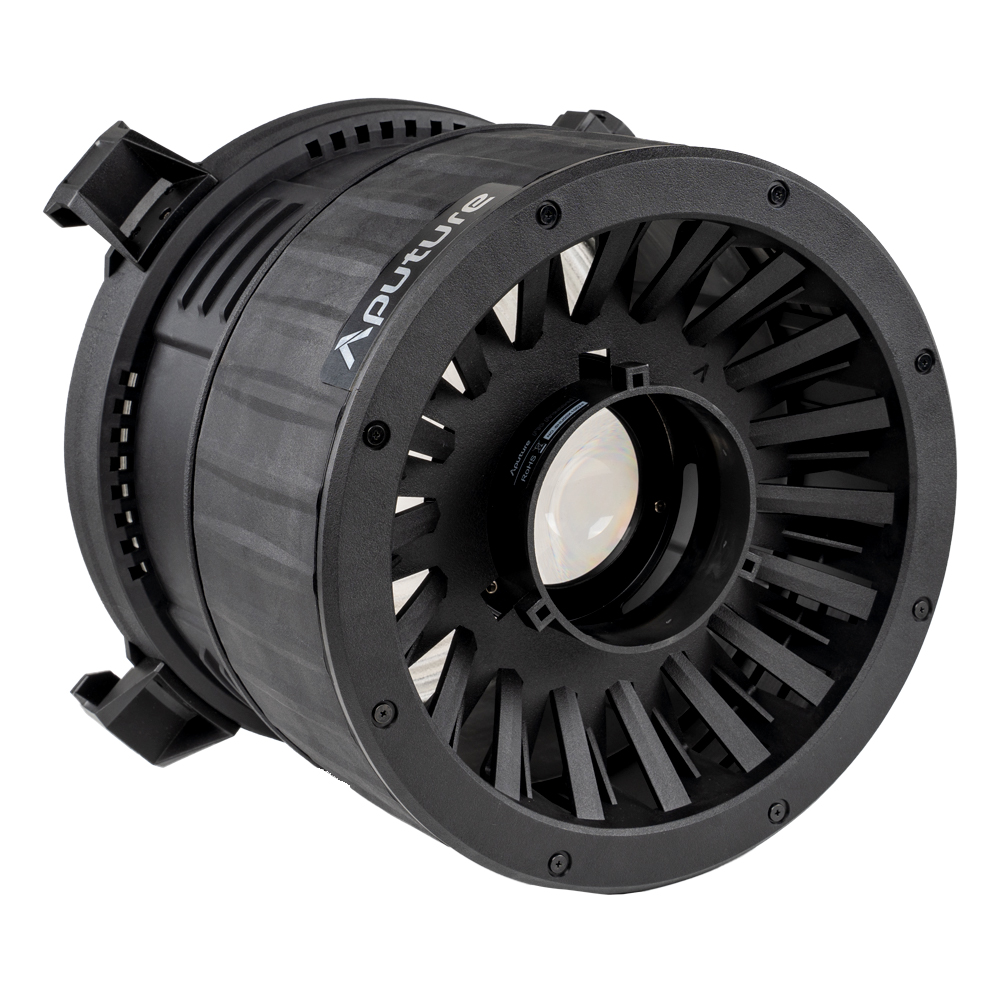

The F10 Fresnel functions at its best when paired with an Aputure LS 600d Pro, a 600W Daylight COB LED. Together, this combination eclipses Studio 2K Tungsten lights, and approaches the intensity of 5K Tungsten fixtures at flood. With a combined flood output of 11,440 lux and spot output of 29,300 lux at 3 meters, the 600d Pro and F10 Fresnel even compete on par with higher-powered HMIs.With it’s rear aspherical focusing element, the F10 Fresnel optimizes the output of an LS 600d Pro to fill the front Fresnel Element, resulting in up to 340% additional output in Flood mode.

To ergonomically and precisely adjust its variable 15°-45° beam angle, the F10 Fresnel uses Aputure’s helicoid focus design,  requiring no extra knobs or handles. Simply twist the lens ring, and adjust the spot/flood controls.

  • Bowens Mount
  • Variable 15°-45° beam angle
  • Ergonomical Twist Mechanism
  • Drop-in Accessory Slot
  • Carrying Bag
  • Fresnel Lens Diameter:  250mm / 9.843in
  • Accessory Slot Diameter:  332.88mm / 13.106in
  • Accessory Mount: Bowens Mount
  • Output Increase (w/ LS 600d Pro): 340%
  • Dimensions (Collapsed / Flood 45°): 346*340.46*172.48mm / 13.622*13.404*6.79in
  • Dimensions (Extended / Spot 15°): 346*340.46*250.35mm / 13.622*13.404*9.856in
  • Weight (F10 Fresnel): 3850g / 8.488lbs
  • Weight (Carrying Bag): 1800g / 3.968lbs

F10 Fresnel

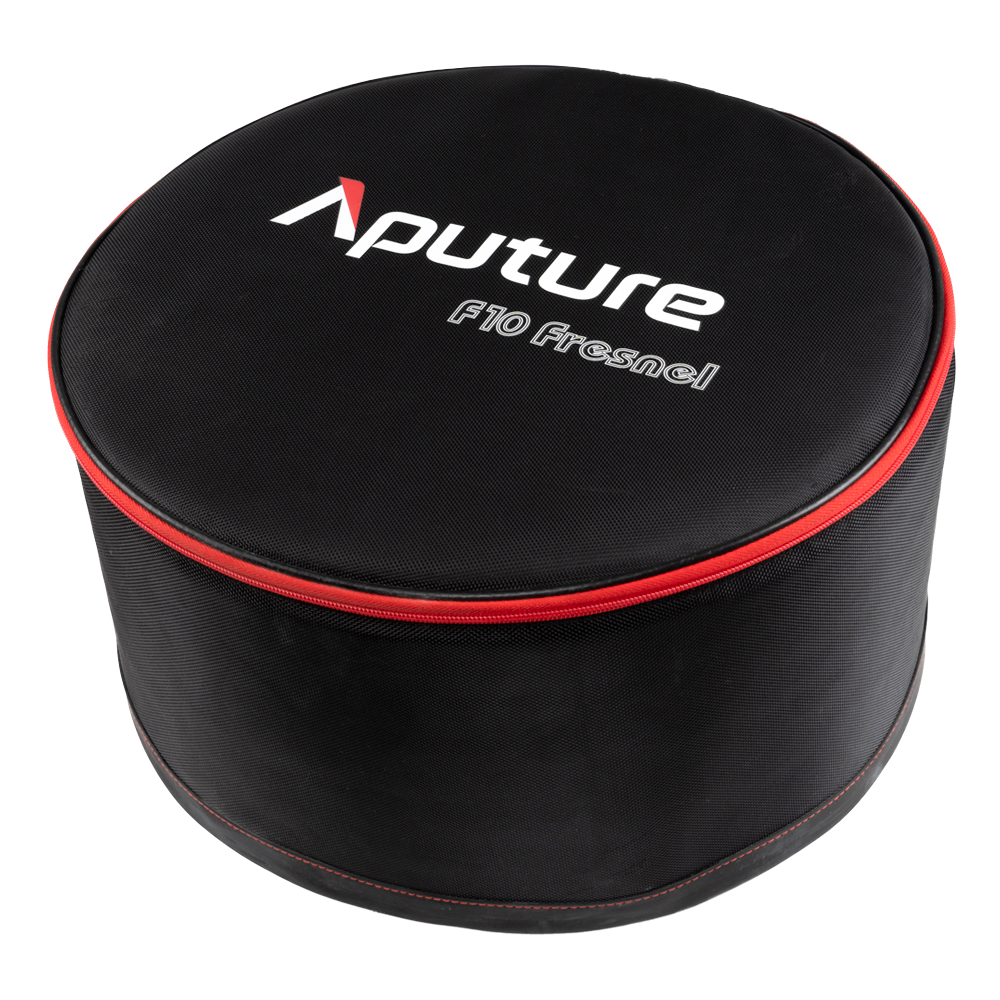

F10 Fresnel Carrying Bag

Aputure F10 Fresnel
