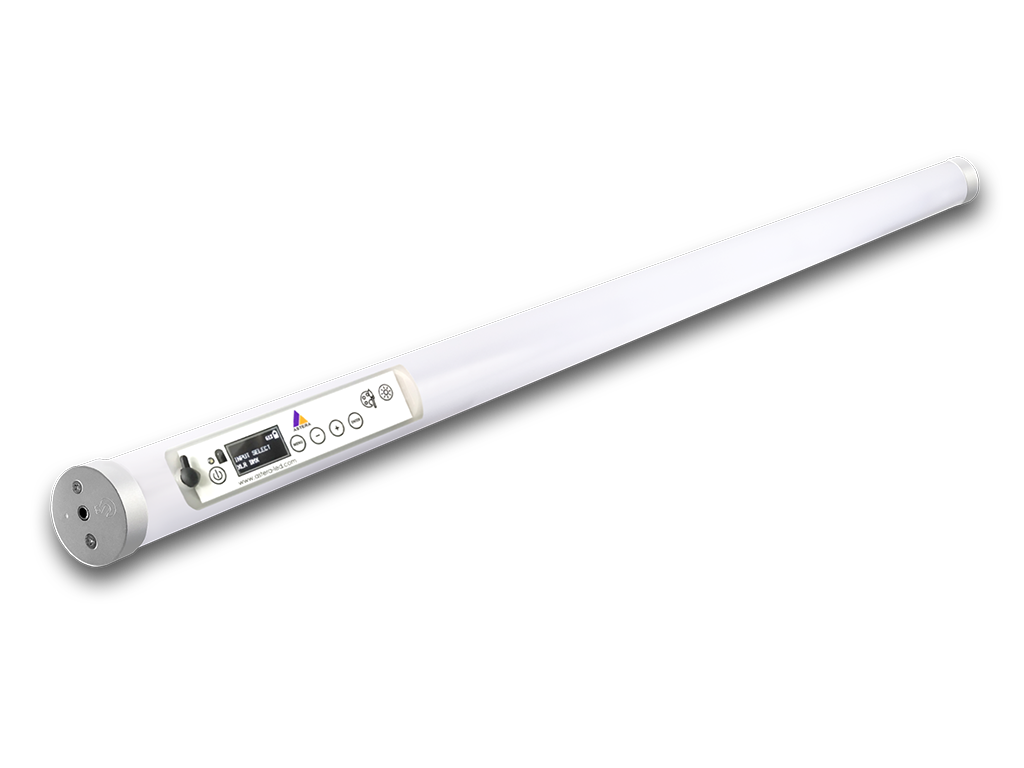

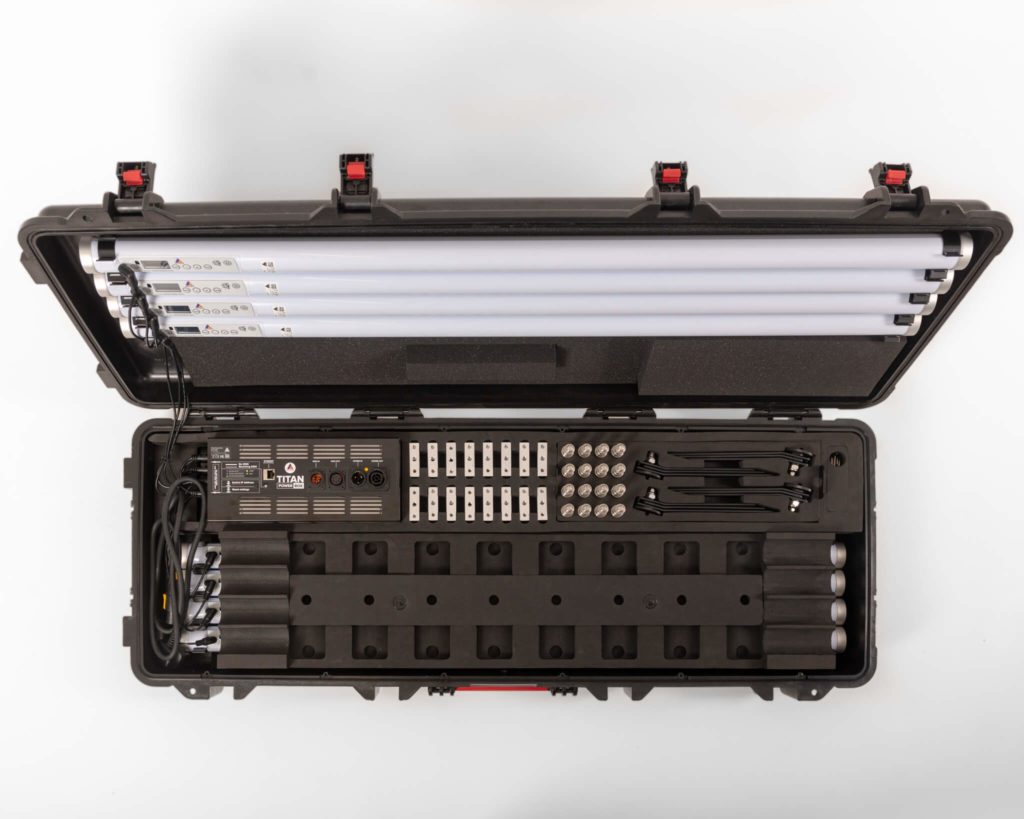

Astera 8 Titan Tube Kit

Rent for $450.00 per day

CALL OR EMAIL FOR MULTI-DAY RATES!

Categories: , ,

Description

The Astera 8 Titan Tube Kit emits powerful, tunable white light with ultra-high color rendering and colored light. This tunable light can be applied to individual pixels or the whole tube. Powered by AC or battery, the tubes allow for wireless lighting with advanced technology and control.



With the AsteraApp, you can set the battery runtime for up to 20 hours, control lighting set-ups, change DMX settings, and monitor them remotely.



The wired or wireless DMX features a smart (bi-directional) control system where Infrared remote, wireless DMX and App work together to enable wireless event lighting installations that can be set up, monitored and adjusted quickly and easily.



All Astera fixtures come in rugged, IP 65 waterproof housings for exterior use.

Features

• 16 individually controllable pixels
• Tunable White with range from 1,750K to 20,000K
• Ultra High Color Rendering TLCI ≥96, CRI ≥96, CRI Re≥90 from 3200K to 6500K
• Boost Mode: Ultra-bright when displaying white color for 2h or while connected to AC

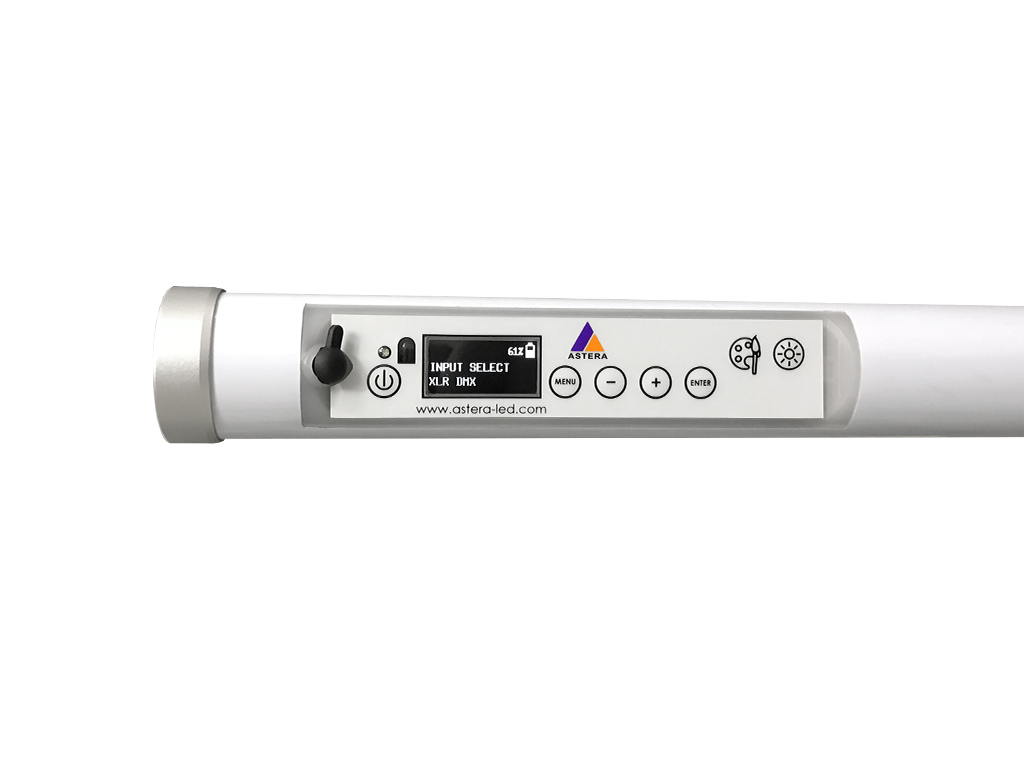

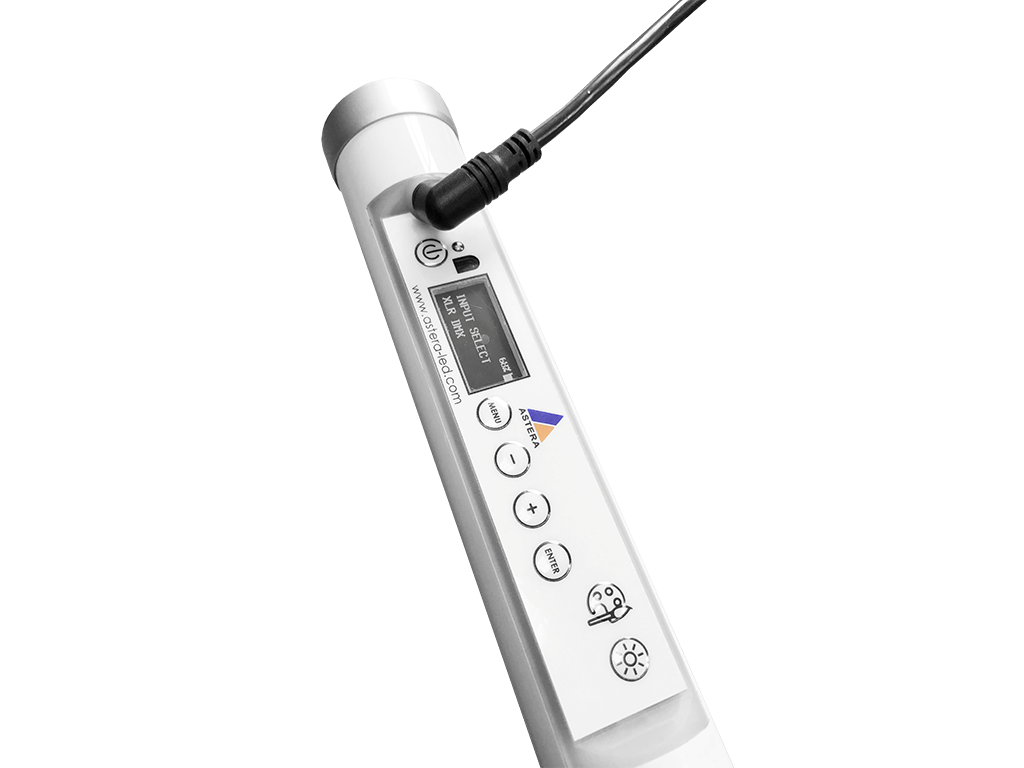

• Backside Display with quick access to DMX setup, colors and hue, saturation, intensity control
• Wired Data Connection (+Wireless DMX) DMX, Art-Net, sACN and power can be distributed via the PowerBox
• Mounting accessories with custom holders, stands etc.

Specifications

Optical

Colors: Red, Green, Blue, Mint, Amber

Total LED power: 72W

Maximum power draw: 48W

TLCI: ≥96

CRI: ≥96

Luminous flux: 2900Lm

Emittance @1m: 785Lx

Strobe: 0-25Hz

Beam Angle: 120˚

Field Angle: 180˚

Pixels: 16

Control

Backside Display with HSI control

Infrared

Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz

Range: 300m | 330 Yards

Wired DMX: supported via Astera PowerBox

Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

Electrical

Battery: LG Chem Lithium-ion

Battery Lifetime: 70% after 300 cycles

Battery Runtime: Up to 20 hours

LED Lifetime: 50.000 Hours

Charging time (nominal): 3 Hours

Input Voltage : 24V 2A

Construction

Housing: Polycarbonate, metal endcap

IP Rating: IP65

Relative humidity: 0-100%

Operating Temperature: 0-40 ˚C | 32-104 ˚F

Weight: 1.35kg |3Lbs

Dimensions: Ø42 x 1035mm | Ø1.6” x H40.7”

Includes
