Description

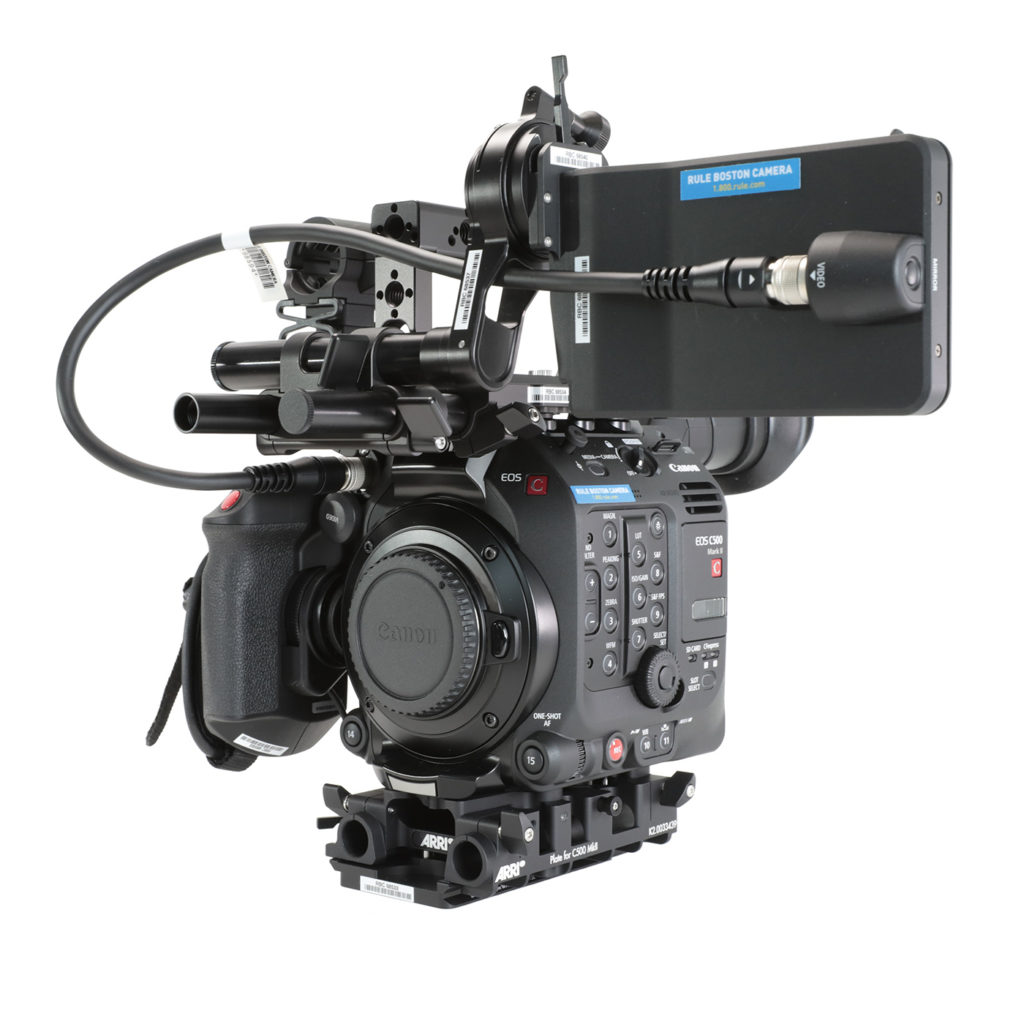

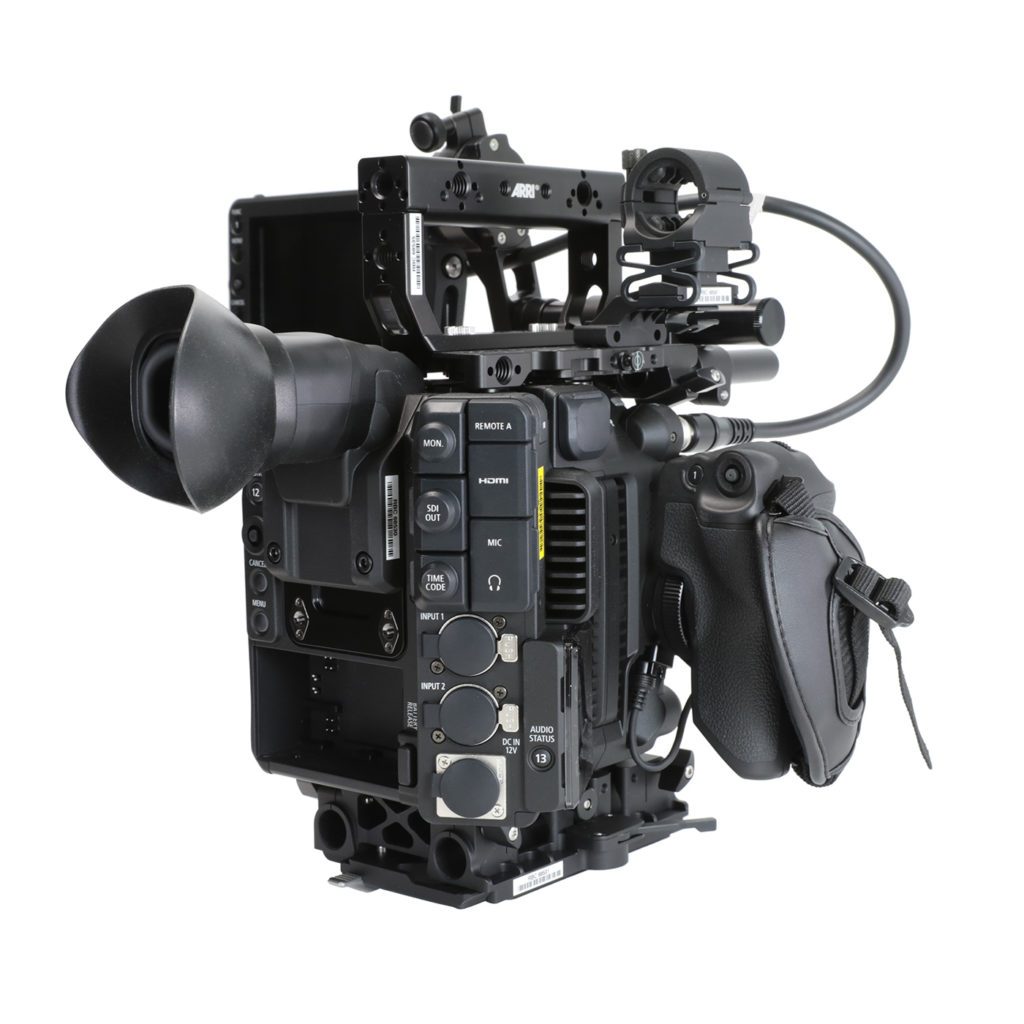

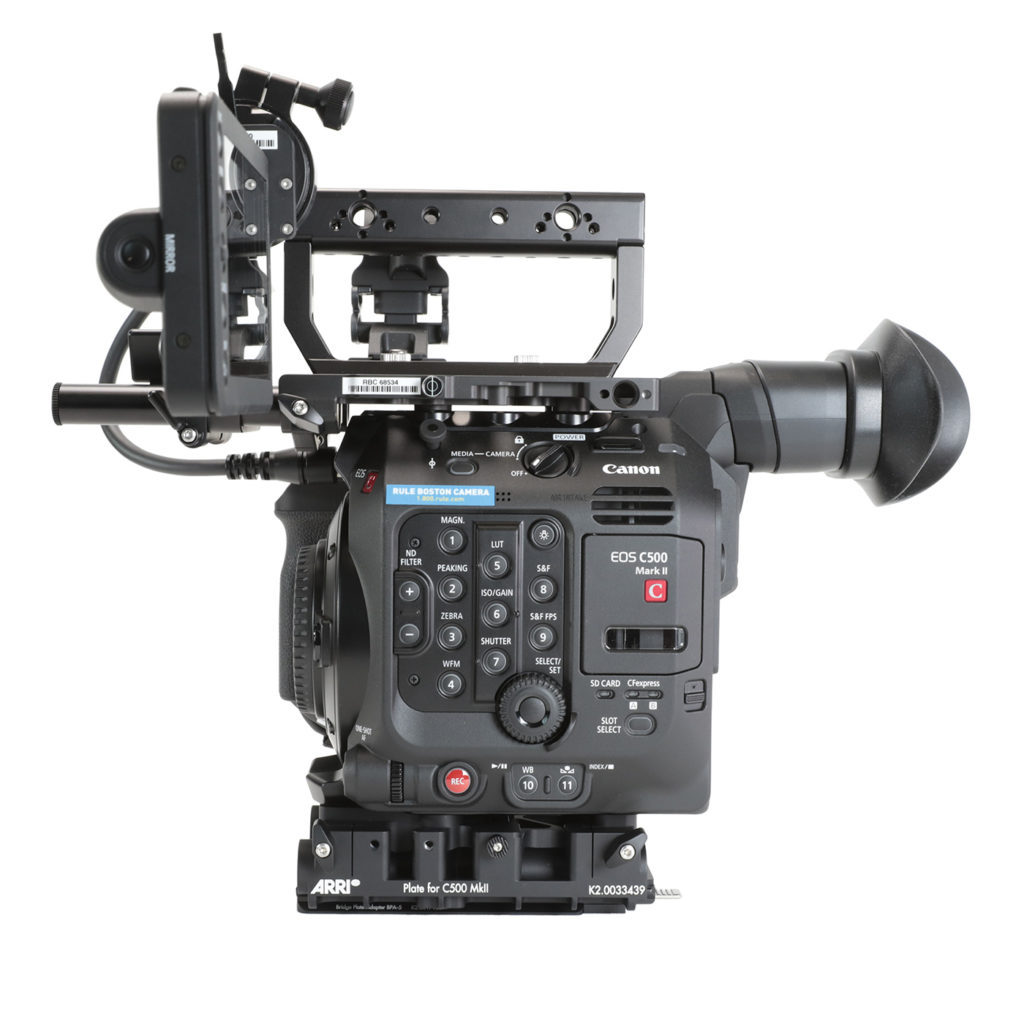

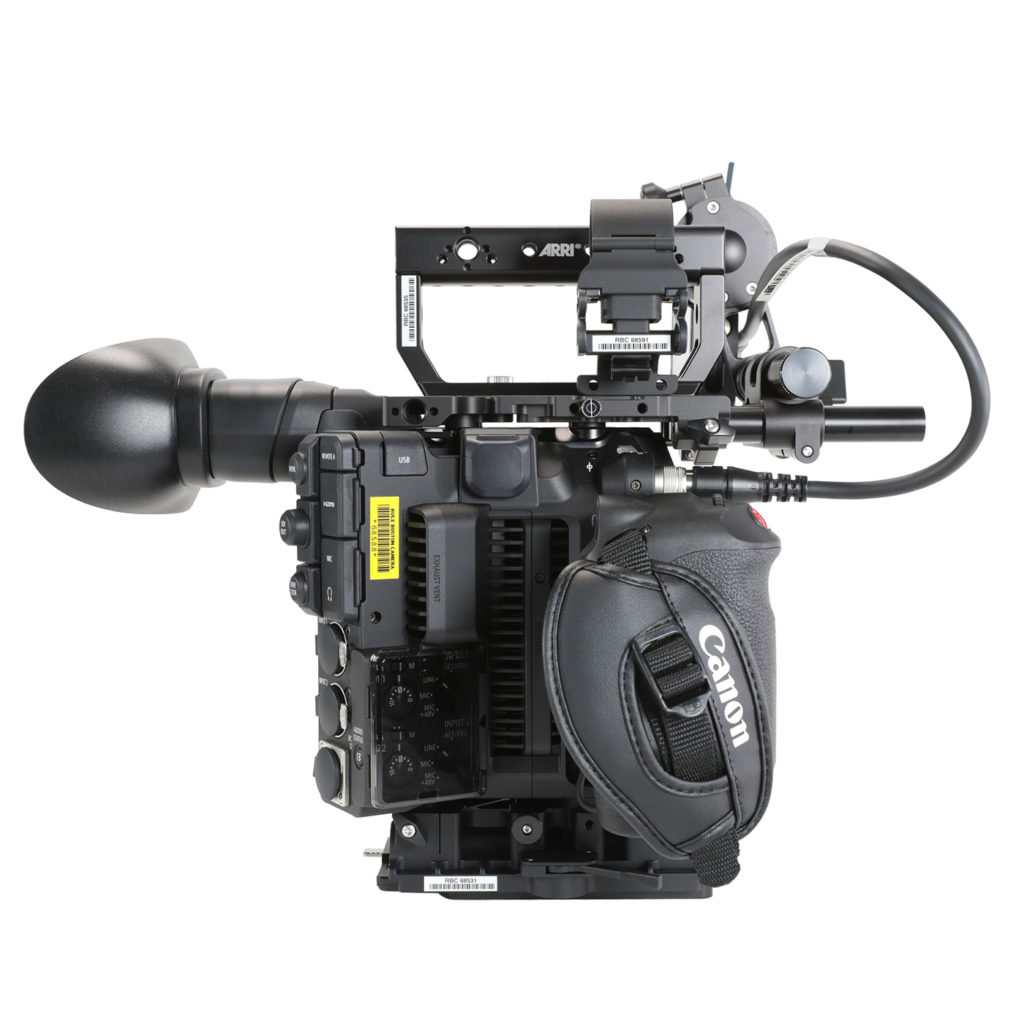

Impressive usability and imaging power combine in the EOS C500 Mark II customizable full-frame cinema camera.
The lightweight body comes equipped with Canon’s 5.9K full-frame CMOS sensor capable of over 15 stops of dynamic range. The newly developed DIGIC DV 7 Image Processor expands functionality and flexibility by enabling features such as 5.9K recording, internal recording of Canon Cinema Raw Light and Dual Pixel Autofocus.
The Cinema EOS C500 Mark II is the perfect expression of form and function, exceptionally adaptable to virtually any production with its modular design. Three expansion units and user changeable lens mounts enable operators to build their ideal cinema system.
Features
• 5.9K Full Frame CMOS Sensor, with support for Super 35mm and Super 16mm crop modes
• User Changeable Lens Mounts which gives users freedom to use the lenses they desire
• Newly developed DIGIC DV 7 Image Processor, which powerfully processes high-resolution image data
• Canon Cinema RAW Light and XF-AVC Recording
• Proxy Recording
• Compatibility with EF and PL Lenses
• Anamorphic Lens Support
• Electronic Image Stabilization
• Modular Design with three available Expansion Units allows a high level of connectivity and interoperability
• 4.3” LCD Touch screen Monitor LM-V2
• Dual Pixel CMOS AF with support for Touch AF and Face Detection AF
• Canon Log 2 and 3 Support
• 4 Channel Audio Recording
• Support for Custom User LUTs
Specifications
Sensor: Full-frame / Super 35mm (crop) / Super 16mm (crop); CMOS Sensor with DAF Technology
Total Pixels: Approx. 20.8 Megapixels (6062 x 3432)
Number of Effective Pixels: Approx. 18.69 Megapixels (5952 x 3140) when 4096 x 2160 or 2048 x 1080 is selected as the resolution; Approx. 17.52 Megapixels (5580 x 3140) when 3840 x 2160 or 1920 x 1080 is selected as the resolution
Lens Mount: EF models: Canon EF mount; EF lens group supported (including EF-S lenses), EF cinema lens group supported
Exposure Modes: (1) Manual exposure based on shutter setting, iris setting, ISO/gain setting and ND filter setting, (2) Push auto iris control, auto iris control (Light metering system selection, shift possible)
Shutter Setting: Speed, Angle, Clear Scan, Slow or Off mode selected; Either 1/3 or 1/4 steps selected as speed increment
Iris Setting: Can be set to 1/2-stop, 1/3-stop or Fine
(1) Push auto iris control, (2) Auto iris control
Lenses that support Auto Iris:
EF Lenses
EF-S 10–18mm f/4.5–5.6 IS STM
EF-S 18–55mm f/3.5–5.6 IS STM
EF-S 18–135mm f/3.5–5.6 IS STM
EF-S 55–250mm f/4–5.6 IS STM
EF 24–105mm f/3.5–5.6 IS STM
EF-S 18–135mm f/3.5–5.6 IS USM
EF-S 18–55mm f/4–5.6 IS STM
EF 70–300mm f/4–5.6 IS II USM
EF-S 35mm f/2.8 Macro IS STM
EF 85mm f/1.4L IS USM
COMPACT SERVO Lenses:
CN-E 18–80mm T4.4 L IS KAS S
CN-E 70–200mm T4.4L IS KAS S
CINE-SERVO Lenses:
CN7x17 KAS S/E1
CN7x17 KAS S/P1
CN20x50 IAS H/E1
CN20x50 IAS H/P1
ENG Broadcast Lenses:
2/3 mount lenses which allow for 12-pin communication using a B4 mount. The optional MO-4E or MO-4P B4 Adapter is required.
HJ14ex4.3B IASE S
HJ18ex7.6B IASE S
HJ24ex7.5B IASE S
HJ17ex7.6B IASE S
HJ22ex7.6B IASE S
CJ45ex9.7B IASE-V H
CJ45ex13.6B IASE-V H
CJ24ex7.5B IASE S
CJ14ex4.3B IASE S
CJ18ex7.6B IASE S
ISO: 1 step, 1/3 step settings: 100* – 160 – 25600 – 102400*
* When the sensitivity is expanded
ND Filter: 5 density settings (2, 4, 6, 8*, 10* stops)
* When expansion is selected
Focus Control: Dual Pixel CMOS AF (DAF), Manual Focus, One-Shot AF, Continuous AF, AF- Boosted MF, Face Detection AF*
* Only lenses that support AF functions can be used in these modes
Focus Guide: Available; displays focus status or unfocused status using the AF signal. It is useful while MF or One-Shot AF is not being performed.
LCD Monitor: LM-V2 LCD Monitor
White Balance: AWB, Kelvin setting (setting range: 2000K–15000K), Daylight, Tungsten, Set (A/B)
Frame Rates:
59.94 Hz mode: 59.94i/59.94P/29.97P/23.98P
50.00 Hz mode: 50.00i/50.00P/25.00P
24.00 Hz mode: 24.00P
Recording Media:
CFexpress Cards (2 slots): Recording of movies (Cinema Raw Light/XF-AVC), custom pictures, metadata
SD Card: Recording of movies (XF-AVC (proxy)), photos (JPEG), custom pictures, metadata, menus and other data
Compression Formats:
Video: (1) XF-AVC: MPEG-4 AVC/H.264, (2) RAW: Cinema RAW Light
Audio: Linear PCM (24 bit – 48kHz; 4-channel recording)
Includes
C500 MK II Camera
Lens Mount
Port Cap
EVF-V50 w/Eye Cup
Grip Unit
LCD Viewfinder
Viewfinder Cable
CG-A10 Dual Battery Charger w/AC Cable
(3) Canon BP-A60 Batteries
Microphone Holder
CFExpress Card Reader
USB 3.1 C to C Cable
USB 3.1 A to C Cable
Arri Baseplate
Arri WA-2 Shoulder Plate
VCT Quick Release Plate
Arri BPA-5 Bridge Plate Adapter
Arri Top Plate for C500 MK II
Arri CCH-4 Camera Handle w/(2) Screws
Arri MVB-1 Viewfinder Bracket
Arri MVB-1 Attachment Bracket
(2) 4” 15mm Aluminum Rods
Arri RMB-3 19mm Rod Bracket
19mm to 15mm Insert
Arri Monitor Bracket for C500 MK II
(2) 12” 15mm Steel Rods
XLR4 AC Power Supply w/AC Cable
XLR4 Extension Cable
HDMI A to A Cable
