Duclos 11-16mm

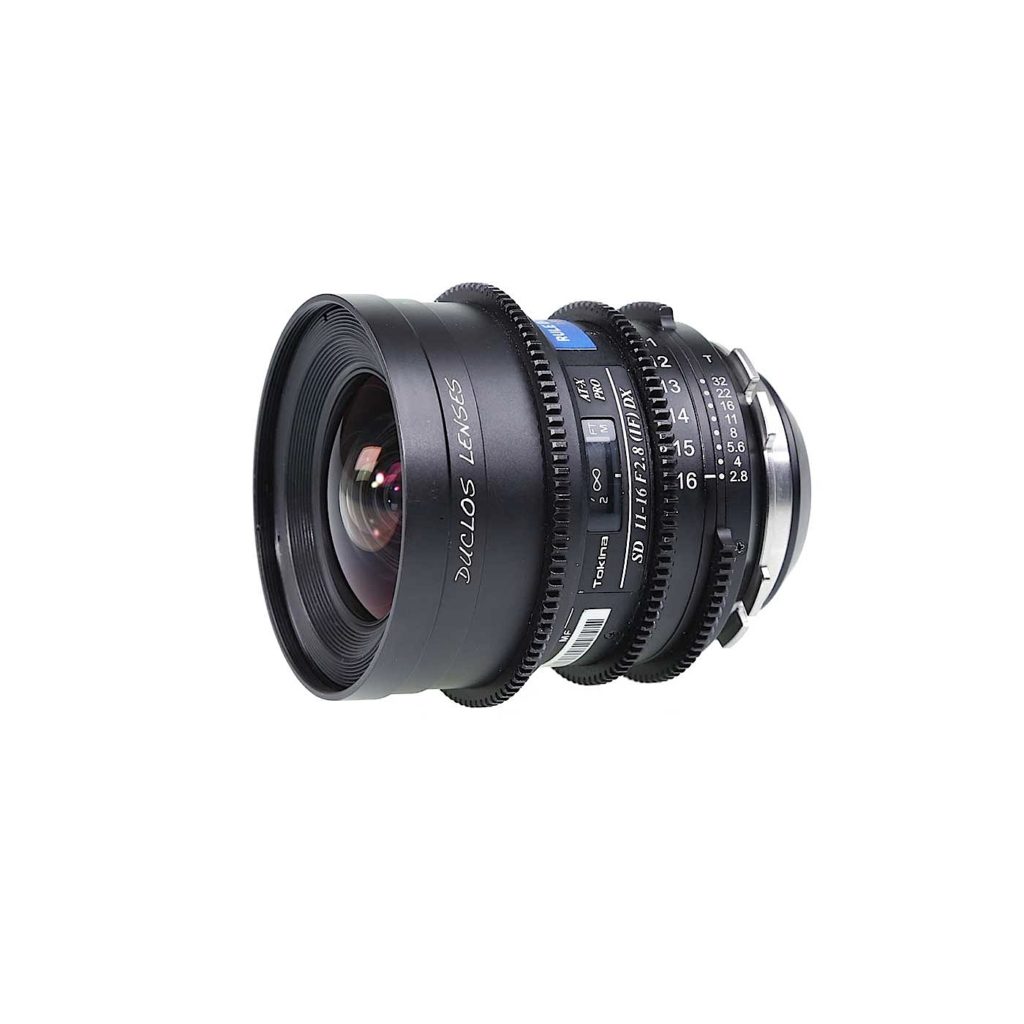

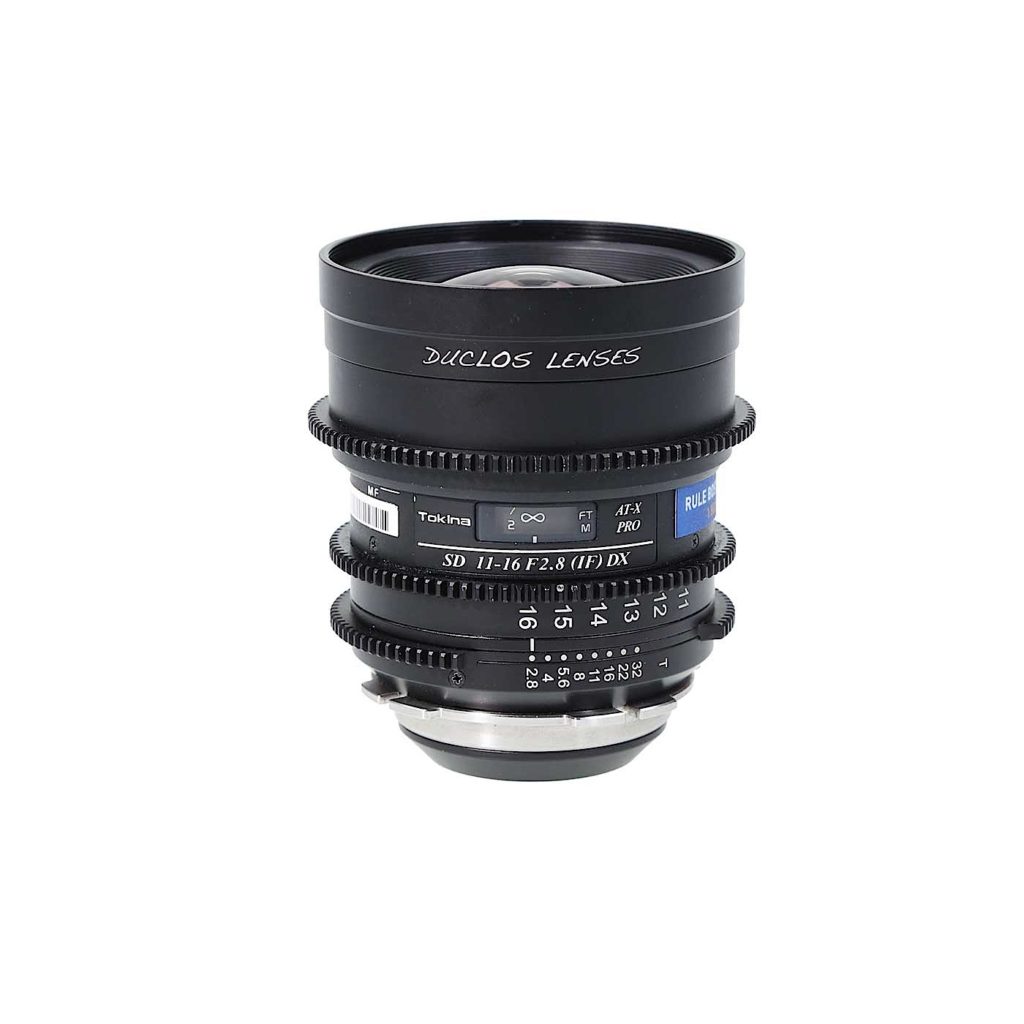

11-16mm f2.8 converted Tokina still lens with PL mount designed to cover a Super35 image.

Duclos Lenses has developed a conversion process for the Tokina 11-16mm ultra-wide angle lens.

Most obvious is the PL mount that interfaces with any PL mount camera. More subtle yet most important is the activated manual aperture control. Lubricated, geared, and marked, the new aperture ring allows precise control for the user. The outer shell of the lens has been replaced with black anodized aluminum. Internal components are refined and reenforced. The final product is a small, lightweight lens perfectly capable of holding it’s own against the likes of other motion picture optics.

  • Aluminum housing
  • Stainless steel PL mount
  • Geared zoom focus and iris
  • 80mm front diameter
  • 77mm filter thread
  • Compact/lightweight
  • Focal Length: 11-16mm
  • Maximum Aperture: T2.8
  • Minimum Aperture: T32
  • Front Diameter: 80mm
  • Filter Thread: 77mm
  • Angle of View: 104°-82°
  • Minimum Focus Distance: 0.3m / 1ft
  • Image circle: 38-32mm
