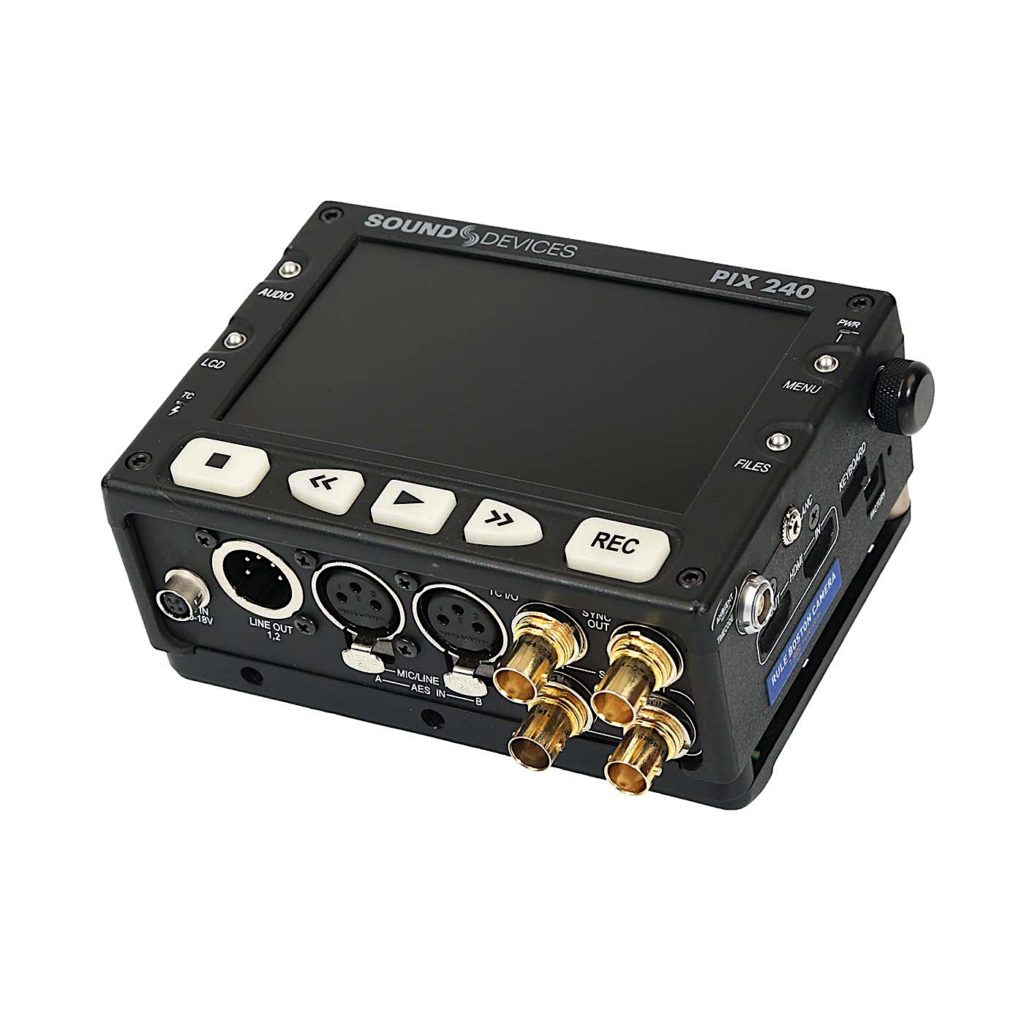

Sound Devices PIX 240

Sound Devices PIX 240 video recorder adds Quicktime recording using Apple ProRes or Avid DNxHD to any HDMI-or HD-SDI equipped high-definition video camera. The portable PIX 240 (HDMI and HD-SDI) record Quicktime files to CompactFlash cards or removable 2.5-inch solid-state hard drives.

Apple ProRes and Avid DNxHD video formats have emerged as industry standards. These I-frame codecs offer the best in picture quality, processing efficiency, and data storage requirements. They are ideal for editing, on-the-fly color grading, and video processing. Files recorded in the field on a PIX recorder are ready for the most popular editorial workflows.

Supporting HD-SDI and HDMI v1.3 input signals up to 1080i/p, the recorder provides simultaneous HD-SDI and HDMI outputs. It includes a tunable highly accurate time code generator and reader with genlock output which offers proper synchronization between the input and outputs. Based on 7-series digital audio recorders, the recorder features high-bandwidth inputs that are mic/line switchable and include limiters, high-pass filters, and 48V phantom power for high quality audio with low-noise. It supports AES3 digital audio using 2 XLR connectors which are capable of accepting up to 4 digital audio inputs. In addition, the PIX 240 includes an external eSATAp connector for direct, powered connection to large SATA storage volumes.

The PIX 240 offers powerful, hardware-based video scalers. Realtime conversion among video formats, including 1080i, 1080p, and 720p, are set with a simple menu selection. Conversion between interlaced and progressive, as well as frame rate conversion is available in realtime. For instance, some cameras set to record 24ps send 1080i 60 over HDMI or HD-SDI. PIX recorders can be set to convert the 1080i 60 stream back to 24p with no loss in quality.

The PIX 240 includes a 5” LCD display which displays images with 800 x 480 resolution and provides immediate confirmation of recording, playback, audio metering, and setup menu selections. It supports input audio source selection between embedded HDMI, embedded HD-SDI, or balanced audio and features a LANC connector for connection with a LANC controller for control over start and record options. Featuring FireWire 800 and USB 3.0 (USB 2.0 backward-compatible) connectors, the PIC-Caddy also includes an eSATAp connection which offers drive powering and 3 Gb/s transfer rate over a single cable.

HDMI input accepts (480i, 525i, 720p, 1080i, 1080p)

HD-SDI input accepts (480i, 525i, 720p, 1080i, 1080p)

PIX 240 Recorder
Hood & Manual
AC Power Supply & AC Cable
Hirose 4Pin – XLR 4Pin Power Cable
XLR 4Pin – A/B DTap Power Cable
Dual Position Charger & AC Cable
(4) NP-F970 Battery
HDMI Type (A) – (A) Cable
(2) HDMI Type (A) – Mini (C) Cable
Firewire 4 – 9pin Cable
Firewire 6 – 9pin Cable
Firewire 9 – 9pin Cable
USB 3.0 A to USB 3.0 B Cable
eSATAp to eSATA & USB Breakout Cable
Noga Articulating Arm
