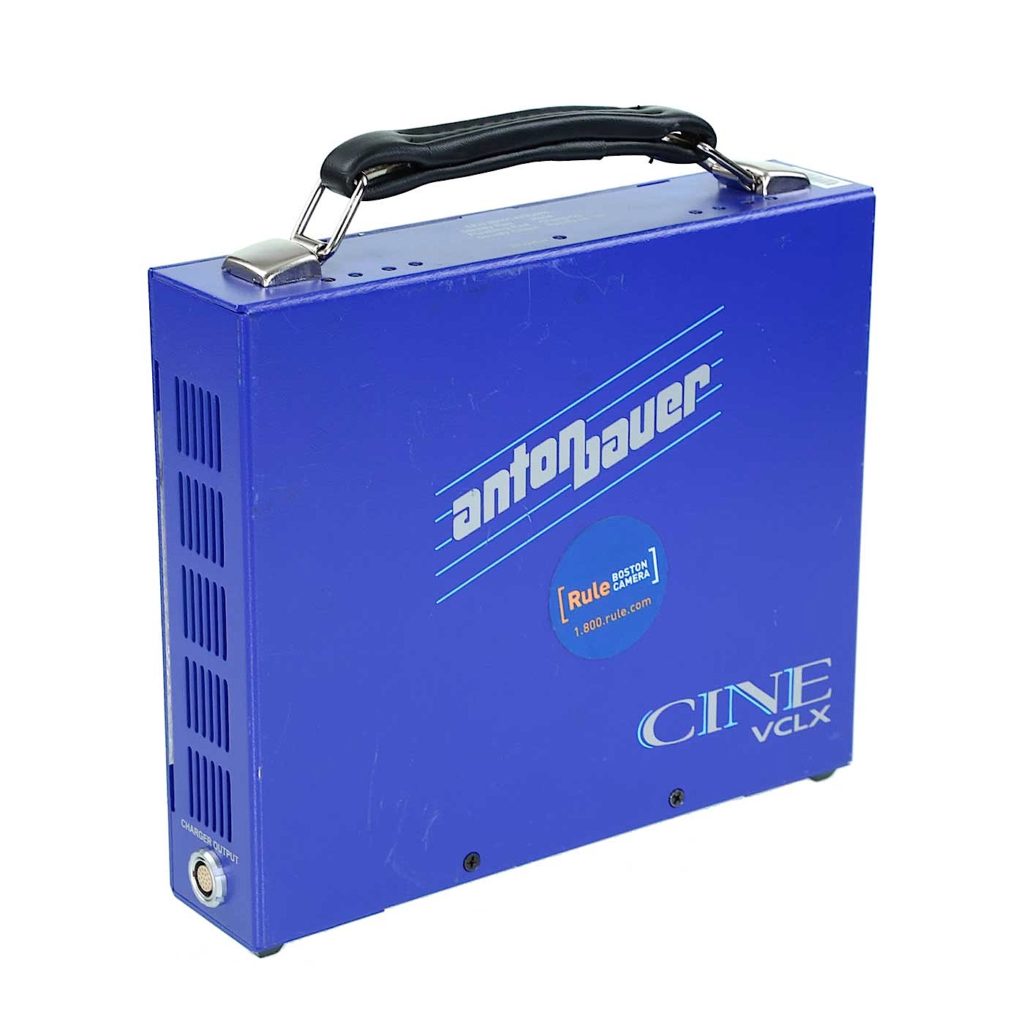

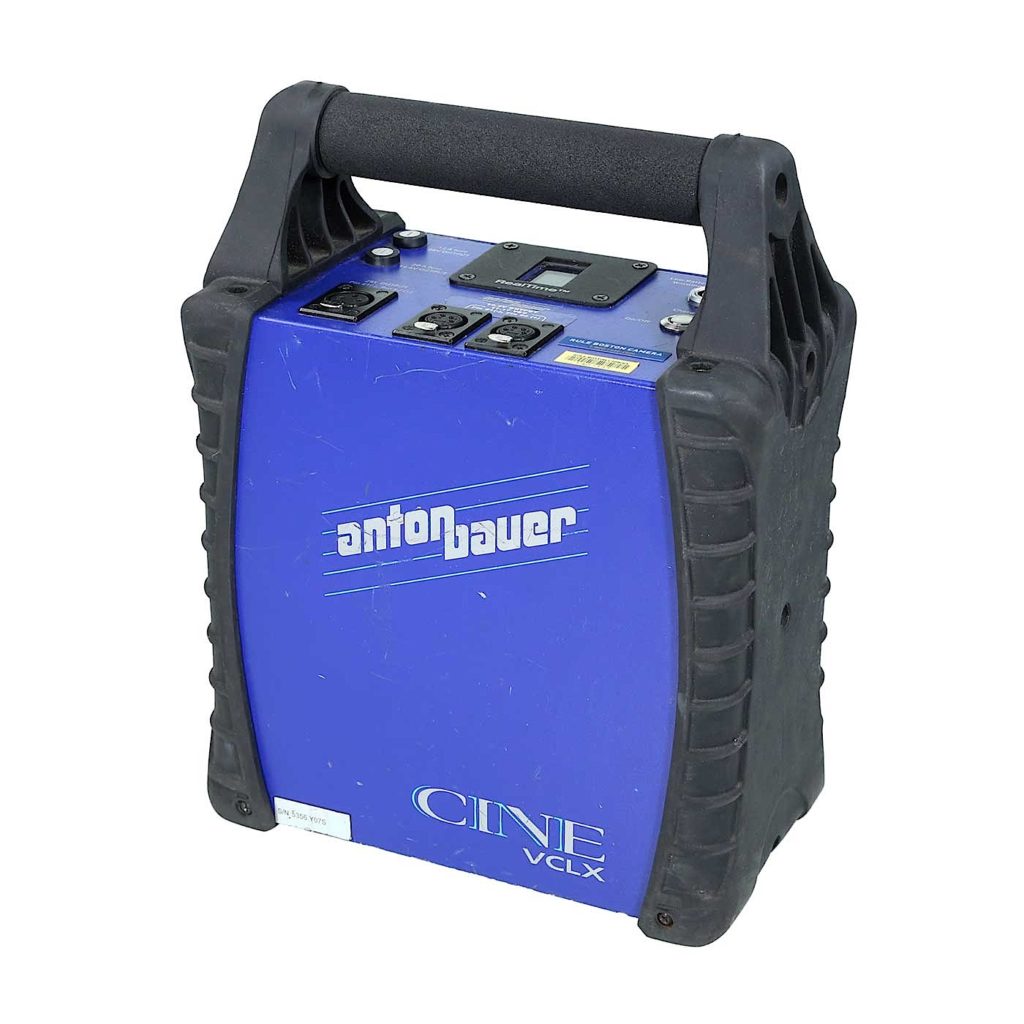

Anton Bauer CINE VCLX

The Anton Bauer CINE VCLX Battery is a 14.4v and 28v 560Wh NiMH battery that provides dual simultaneous outputs and is ideal for high current applications. Power output is via two 4-pin XLR connectors for 14.4v and one 3-pin XLR connector for 14.4v.

This battery connects to the CINE VCLX charger and has an onboard computer that continuously communicates with the charger for maximum power efficiency. Exchanged information includes such factors as the battery age, self discharge, charge/discharge rate, cell imbalance and previously experienced charge/discharge cycles. Also built into the battery is an LCD monitor that accurately displays the percentage of remaining battery capacity at all times.

To protect against damage to the battery, this battery has a low voltage cut-off feature which will automatically shut off the battery at 12 volts.

Download Manual
  • XLR connector: 4-pin 14V and 3-pin 28V
  • Watt hour rating: 560 WH
  • Inputs: (2) 4p XLR for 14.4v and (1) 3p XLR for 28v
  • LCD display: Yes
  • Size: 25.40 x 32.39 x 13.97 cm
  • Weight: 11.3 kg

560Wh 4-cell NiMH Battery
Charger w/ AC cord
Charge cable

Anton Bauer CINE VCLX
