Description

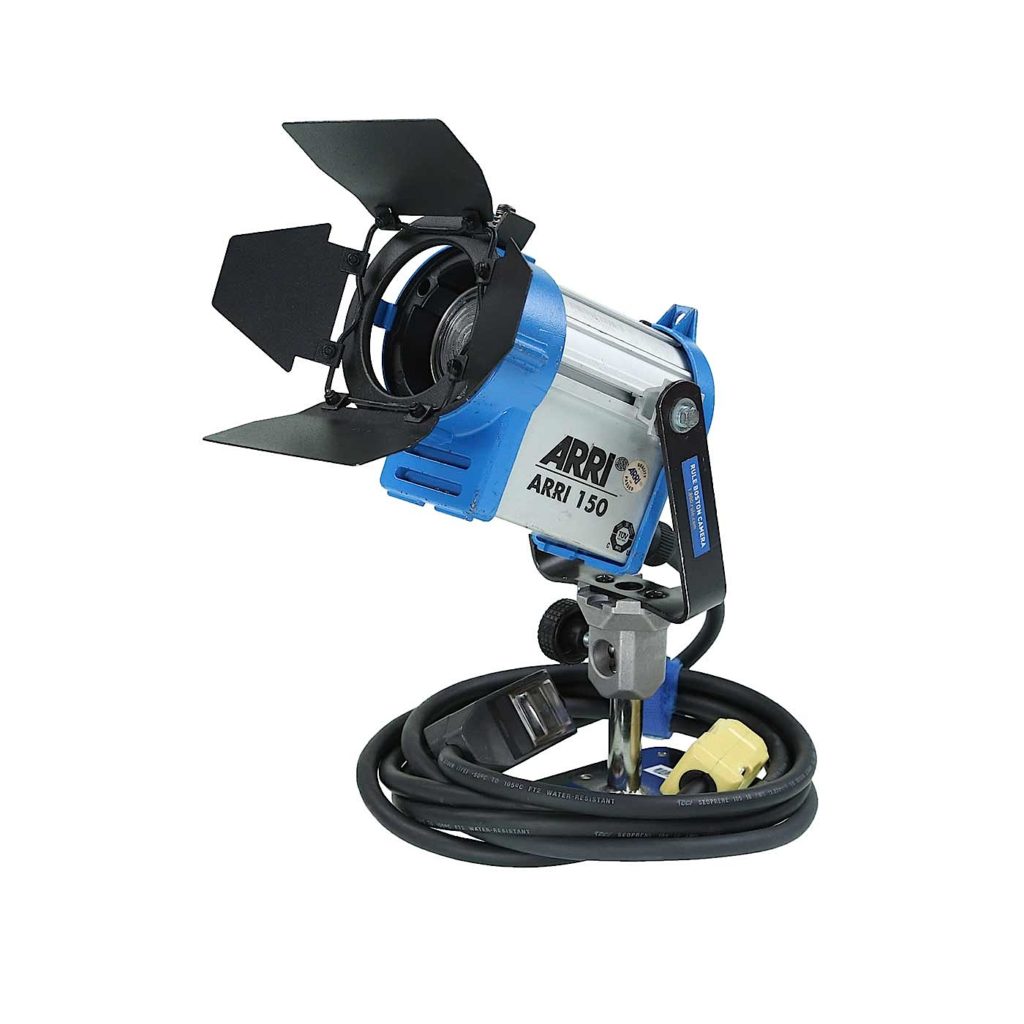

The Arri Fresnel series is ideal for use where compact, lightweight tungsten Fresnel spotlights are required. Arri Fresnels are the perfect solution in small studios where grid height is a problem. The classic ARRI construction of corrosion resistant extruded and die cast aluminum maximizes body strength while maintaining the light weight of an ideal location fixture. Despite the small size, short focal length lenses with wider angles give more light output and better light distribution over the full beam area.
Features
• High quality lenses and reflectors for excellent optical performance
• Compact size and lightweight
• Robust construction of rust-resistant, extruded, die cast aluminium
• Easy and convenient operation
• Quick and easy service access
• Extensive range of accessories
Specifications
Rating: 150 Watts
Socket (Lampholder): BA15d
Lens (Condenser): 2" (50mm) low expansion borosilicate Fresnel lens
Reflector (Mirror): Spherical specular high purity aluminum
Mounting: 5/8" (16mm) stand mount
Yoke: Fits on standard 5/8" stand or mounting stud
Cable: 15′ (4.6 m)
Focusing: Worm gear driven
Weight: 2.3 lbs (1 kg)
Dimensions: 5.25 x 7.75 x 6.1" (13.3 x 19.7 x 15.6 cm)
Download
Manual
Includes
• Arri 150W fixture
• Barndoors
• Scrim set
• Spare lamp
• Lightweight stand (on request)
