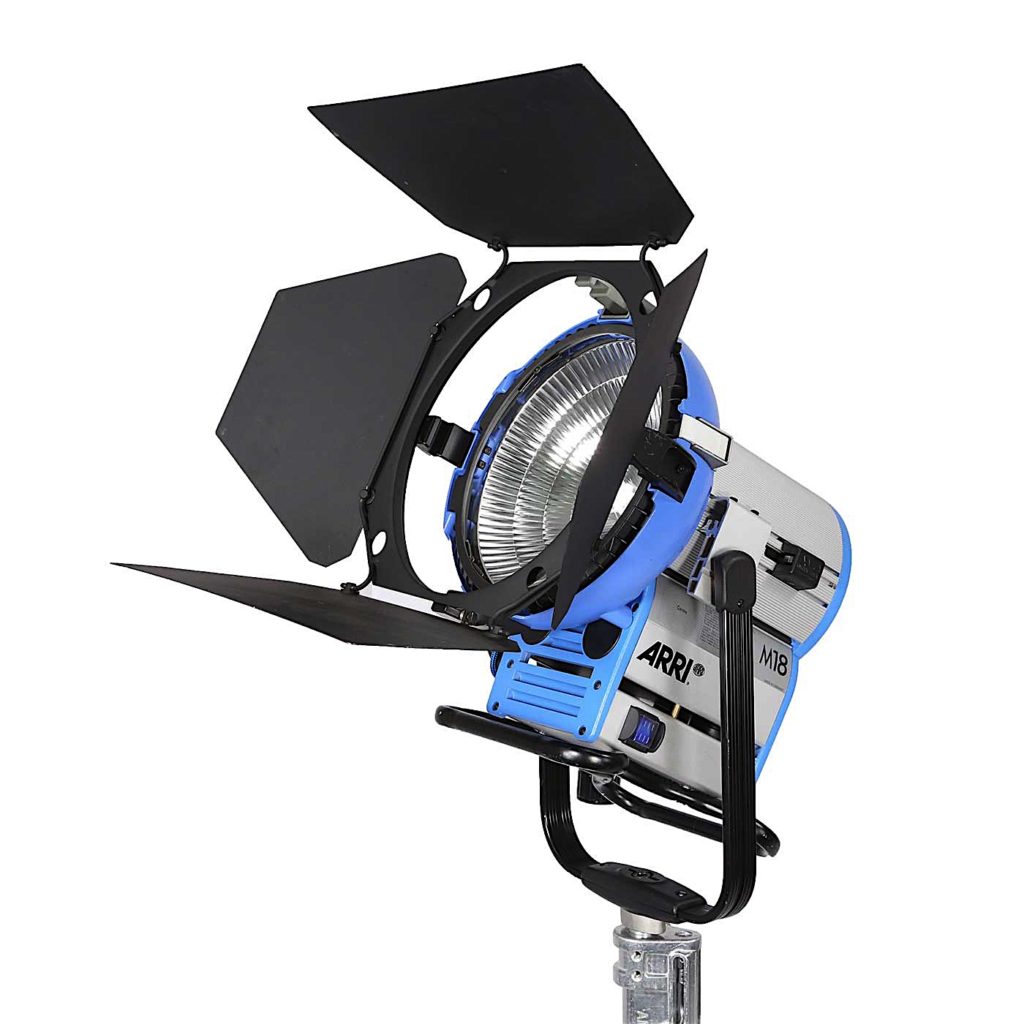

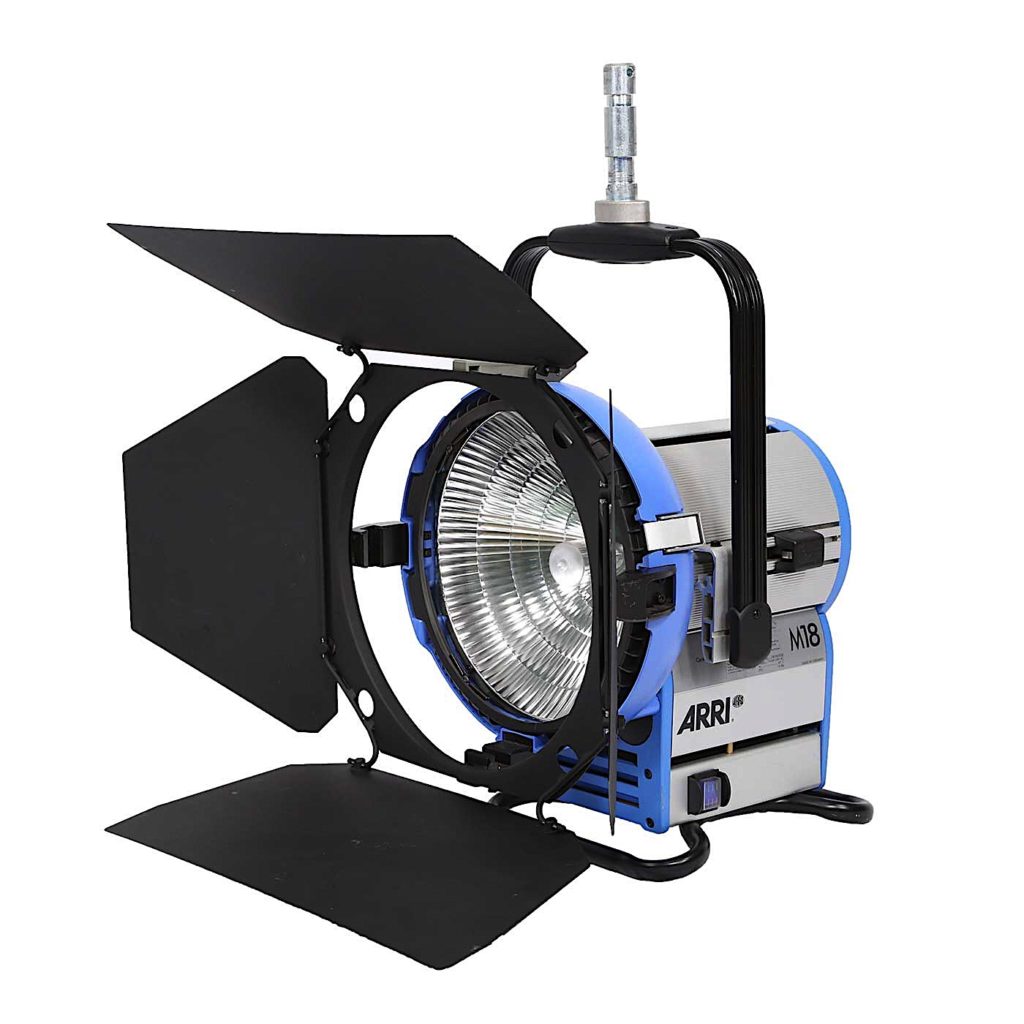

ARRI M18 HMI

The Arri M18 is a lens-less, open face 1800W HMI lighting fixture that combines the desired light distribution from the optics of a PAR and a Fresnel fixture. The unique ARRIMAX reflector design creates diverging rays to produce a crisp shadow.

  • Lens-less MAX Technology
  • Ballast runs off 120v AC
  • 1800 W lamp
  • Virtually the same size as a 1200 W lamphead but more than 70 % brighter
  • Runs from most 20amp domestic sockets world-wide
  • Can also be used with 1200 W lamps and ballasts
  • Cross Cooling allows safe operation at any tilt angle
  • Protection class IP 23
  • Lamphead Type: Open Face with Facetted Reflector, 1800 W
  • Reflector Type: MAX reflector made of high purity aluminium
  • Lamp Type: Metal Halide 1800 W/SE; Metal Halide 1200 W/SE
  • Power Consumption: 1800 W / 1200 W
  • Voltage Range: 100 V / 140 V
  • Lamp Base: G38
  • Dimmability: Yes, 50 – 100% via ARRI Ballast Unit
  • Cable Options: VEAM, Schaltbau (GTV-Norm)
  • Correlated Color Temperature: 6000 K
  • Beam Angle: 20 – 60° (with 1800 W lamp)
  • Product Weight: 10,5 kg / 23.1 lbs.
  • Product Size (HxWxL): 567 x 387 x 388 mm / 22.3″ x 15.2″ x 15.3″
  • Accessory Diameter: 330 mm / 13″ (Scrim)
  • Barndoor Size: 344 mm / 13.54″
  • Mounting: Spigot 28 mm / 1 1/8″ (1.1″)
  • Protection Class: I/IP 23

HMI Fixture
(2) 25’ Ballast cable

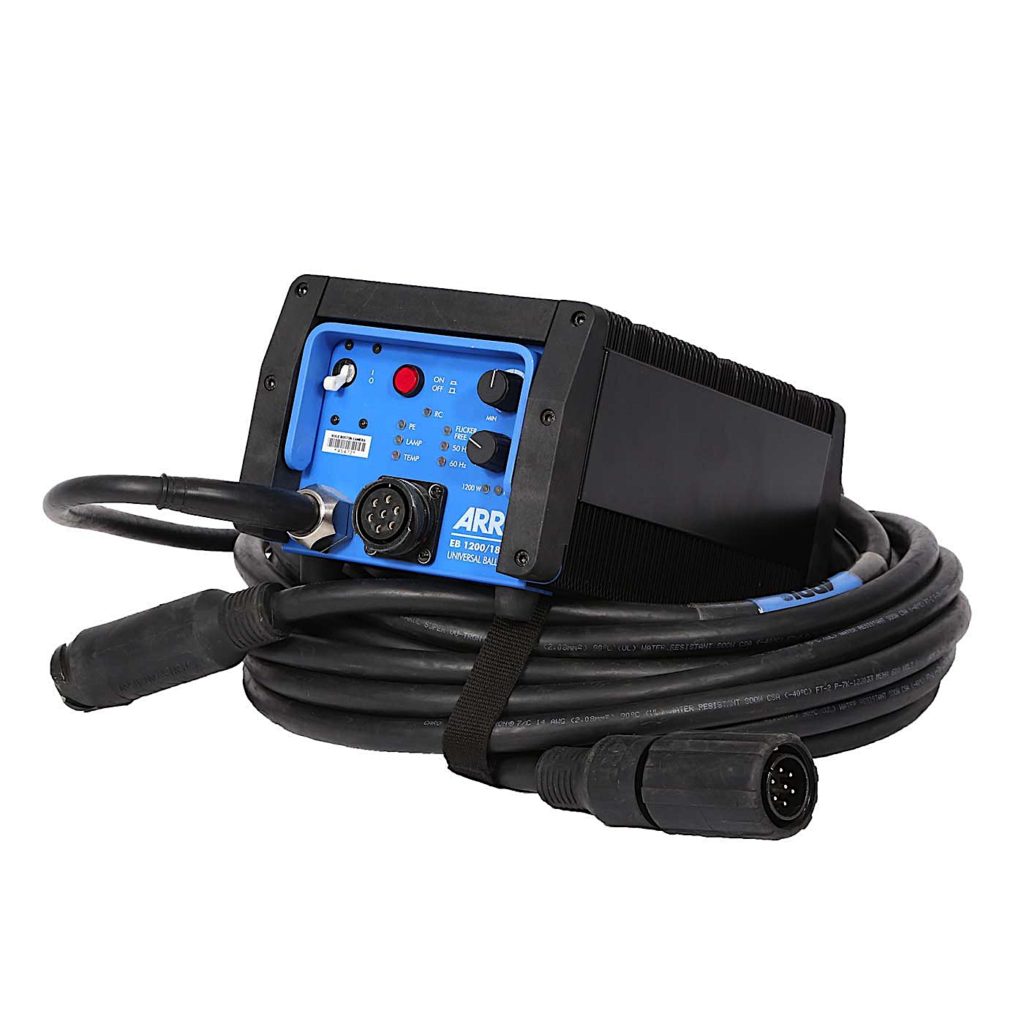

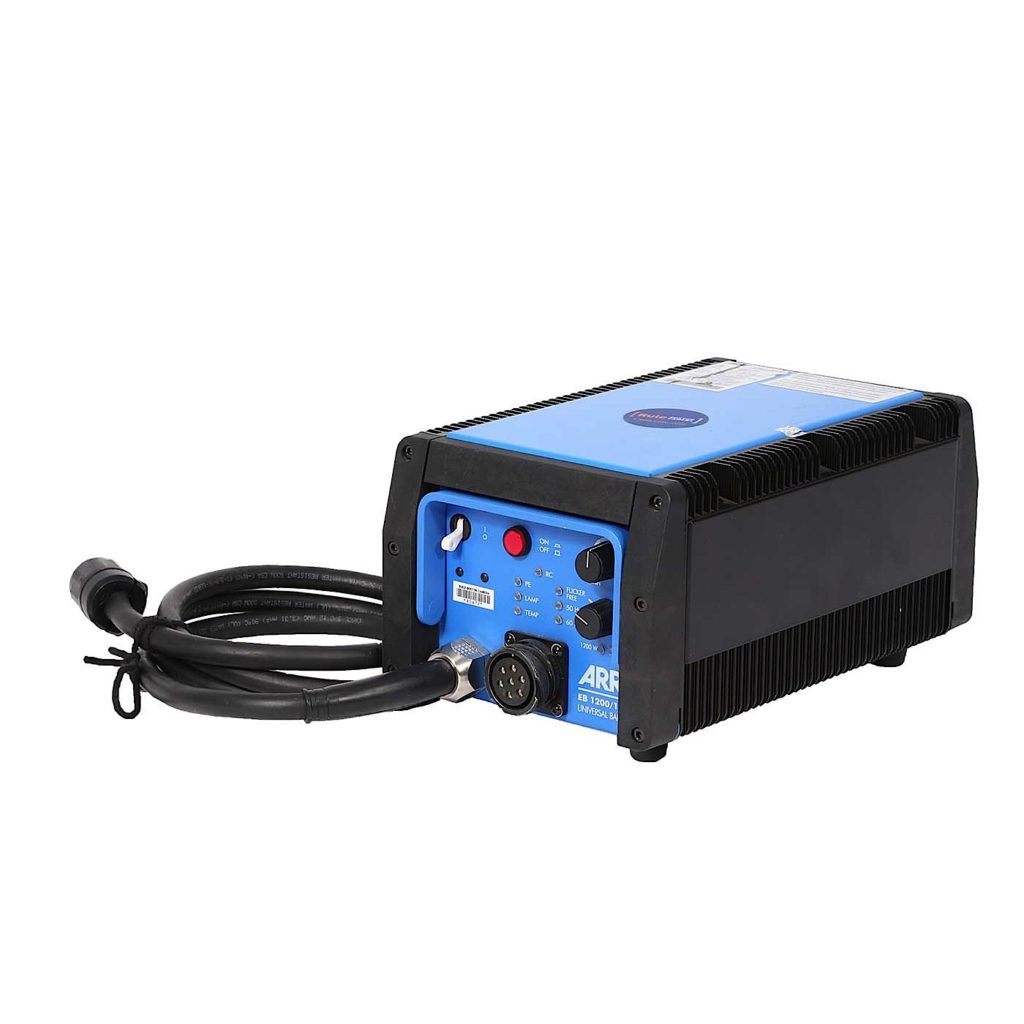

Ballast
Barndoors
Scrim set

ARRI M18 HMI
