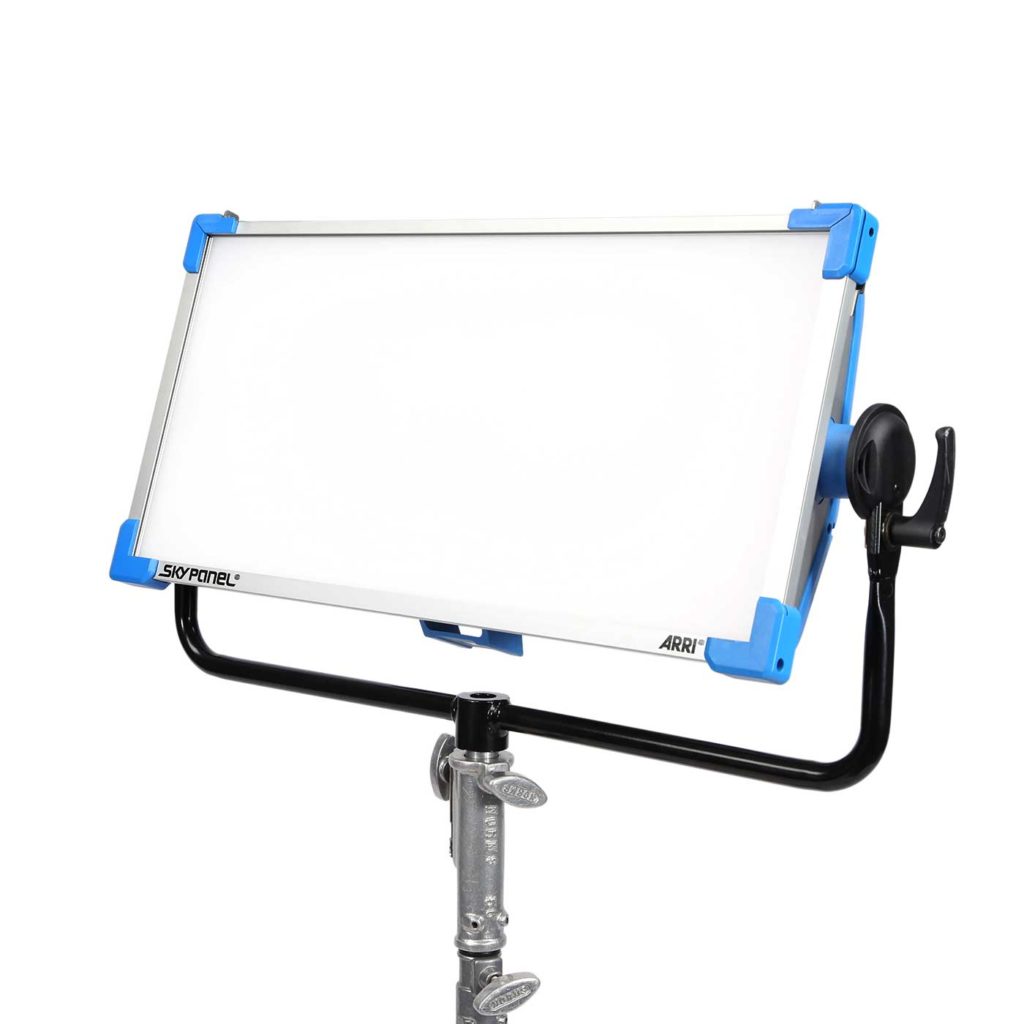

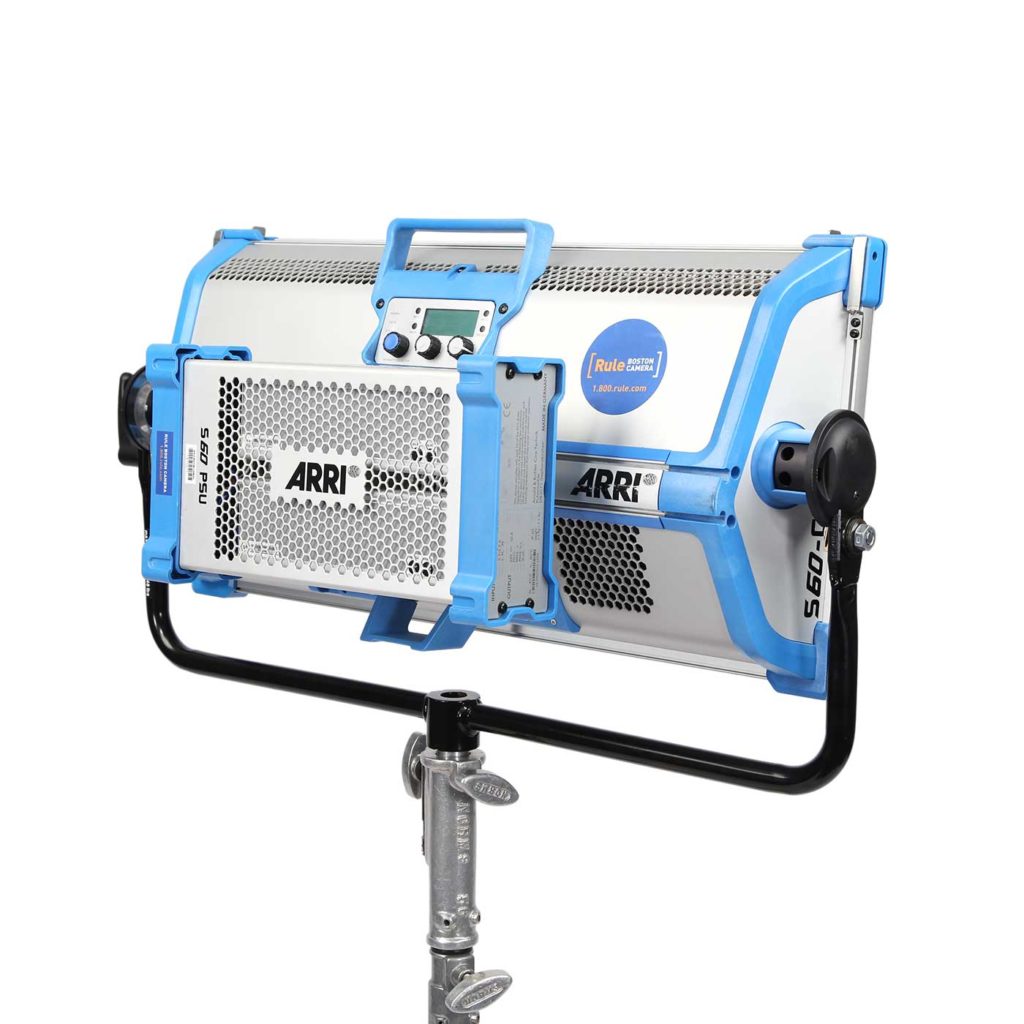

ARRI SkyPanel S60-C

The SkyPanel is a compact, ultra-bright and high-quality LED soft light that is fully tuneable; correlated color temperature is adjustable between 2,800 K and 10,000 K, with excellent color rendition over the entire range. The S60 is a mid- range model, brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. In some cases the fixture can even compete with natural sunlight; at the same time, it is able to perform beautifully at lower light levels, with natural rendition of skin tones, accurate color reproduction and precise color temperature settings.

  • Fully Tuneable from 2,800 K – 10,000 K
  • Vibrant Color Selection (RGB+W Color Gamut)
  • High Color Rendering
  • Low Power Consumption (420 W Nominal)
  • Tremendous Output – Brighter than 2kW Tungsten Soft Light
  • Fully Dimmable from 0 – 100%
  • Lightweight and Compact
  • Beautiful Soft Beam of Light
  • Interchangeable Diffusion Panels
  • Wide Range of Accessories Available
  • Thin Profile
  • On-Board Battery Connection (23 – 36V DC)
  • Onboard Simple Control Panel
  • Optical System Soft Diffusion Panel
  • Light Aperture 645 x 300 mm / (25.4 x 11.8 inches)
  • Beam Angle 115º (Half Peak Angle)
  • Weight Manual Version: 11.7 kg (25.8 lbs)
  • Pole Op Version: 12.8 kg (28.1 lbs)
  • Handling Steel Yoke, High Strength Tilt Lock
  • Pole Operation Option (Pan & Tilt)
  • Mounting 28 mm Spigot (Junior Pin)
  • Tilt Angle +/- 90º
  • Lamphead Voltage Input 48 V DC
  • Power Consumption 420 W Nominal, 450 W Maximum
  • Lamphead Power Connection Male 3-Pin XLR – 15 amp (Pin 1: Negative / Pin 2: Positive)
  • Battery Connector Male 4-Pin XLR – 10 Amp (Pin 1: Negative / Pin 4: Positive)
  • Battery DC Voltage Range 23 – 36 V DC
  • Battery Mode Light Output 50% of Total Output
  • White Light 2800K – 10000K Continuously Variable Correlated Color Temperature
  • Colored Light Full RBG+W Color Gamut with Hue and Saturation Control
  • Color Temperature Tolerance +/-100K (nominal), +/-1/8 Green-Magenta (nominal)
  • Color Rendition CRI Average > 95
  • TLCI Average > 90
  • Green-Magenta Adjustment Continuously Adjustable (Full Minusgreen to Full Plusgreen) Dimming 0 – 100% Continuous
  • Control On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN Network Connectivity, USB-A
  • Remote Device Management (RDM*) DMX Setup, Hour Counter and Standard RDM Commands
  • Software Interface Ethernet: DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac USB-A: Software upgrade via flash drive
  • Housing Color Blue/Silver, Black
  • Ambient Temperature Operation -20 – 45ºC (-4 – 113ºF)
  • Protection Class IP 20
  • Estimated LED Lifetime (L70) 50,000 hours
  • Estimated Color Shift Over Liftetime +/- 5% K
  • Certifications CE, FCC; GS, cNRTL, CB
  • Power Supply Unit S60 PSU
  • Power Supply Input Range 110 – 240 V AC, 50/60 Hz
  • Power Supply Output Rnage 48 V DC
  • Power Input Connection powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available)
  • Power Output Connection Female 3-Pin XLR – 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
  • Weight 3.5 kg (7.7 lbs.)

Skypanel S60-C
Barn Doors
Yoke With Junior Pin
Power Supply Rail Mount Adapter
Standard Diffusion Sheet
AC Powercon Power Cord
48V 3Pin XLR DC Power Cord
10mm Allen Wrench
4mm Allen Wrench
Manual
