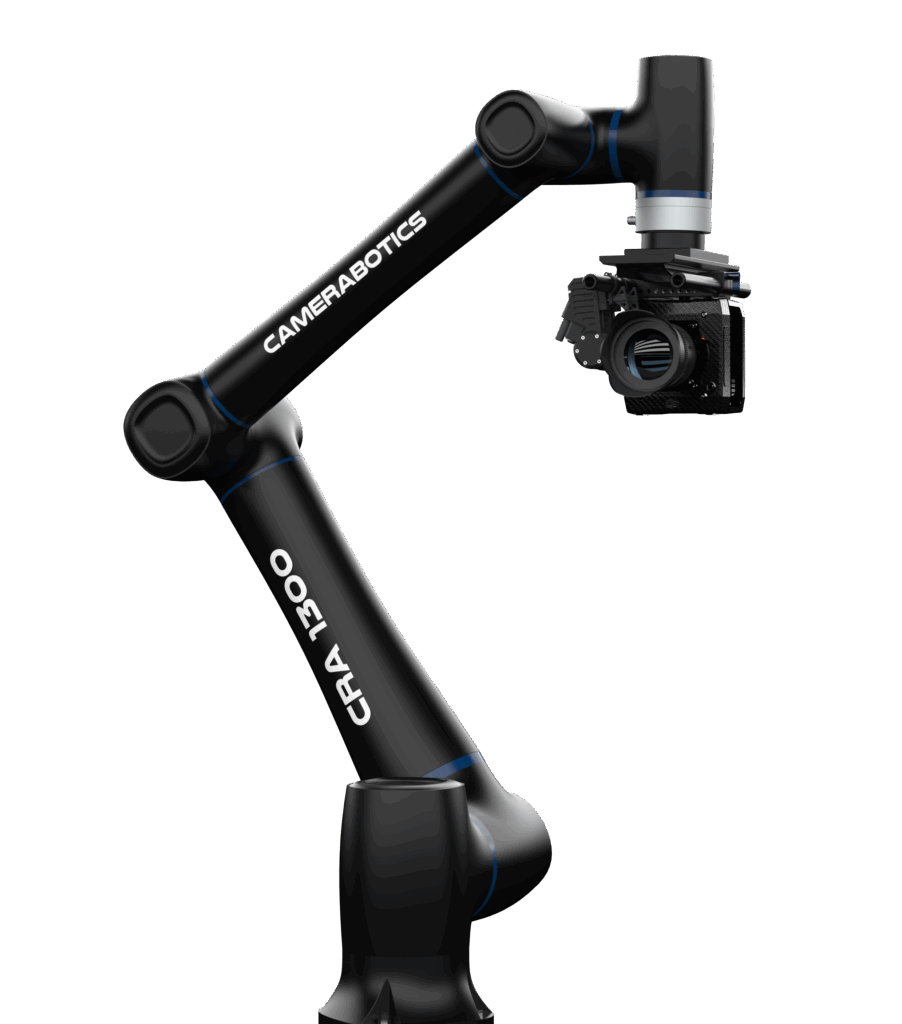

The Camerabotics CRA-1300 Cinema Robot performs perfect, repeatable camera moves that can be set up in minutes – for slick product reels, table-top and fashion, high-speed sequences or almost any kind of shot a creative mind can conjure.

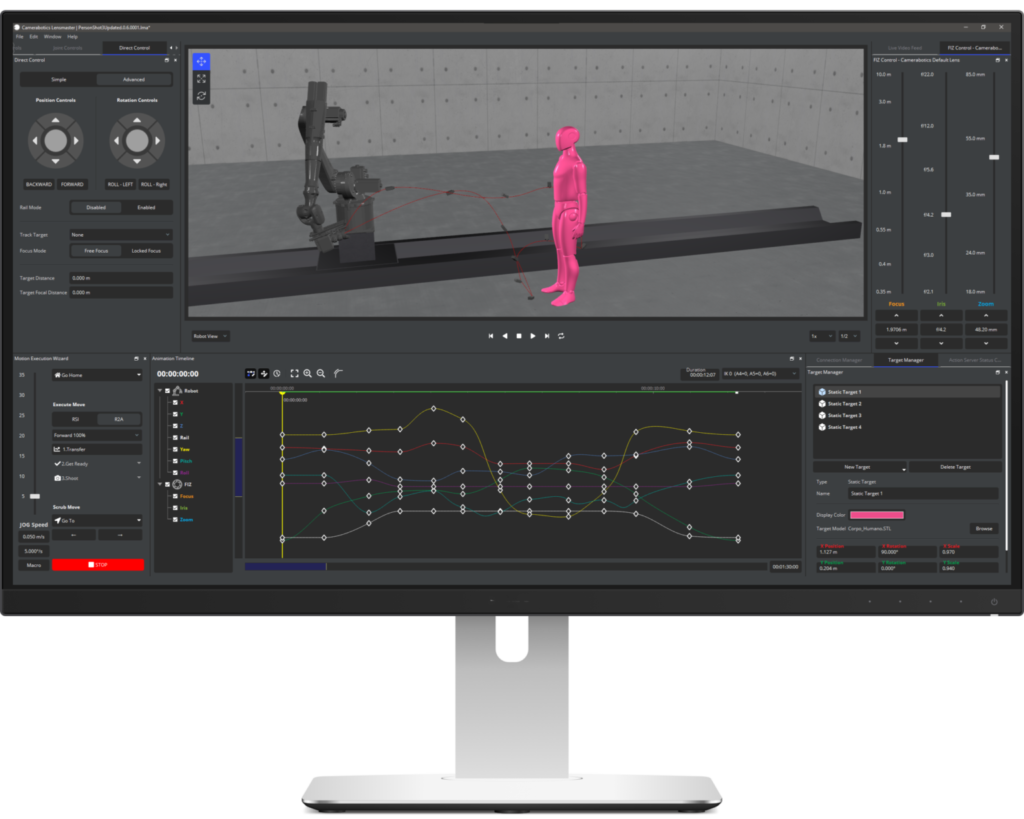

It’s a Backdrivable arm for easy and intuitive programming, or you can control it with joysticks or create complex moves using the included Lensmaster software, which is an evolutionary step in software for this class of motion control equipment.

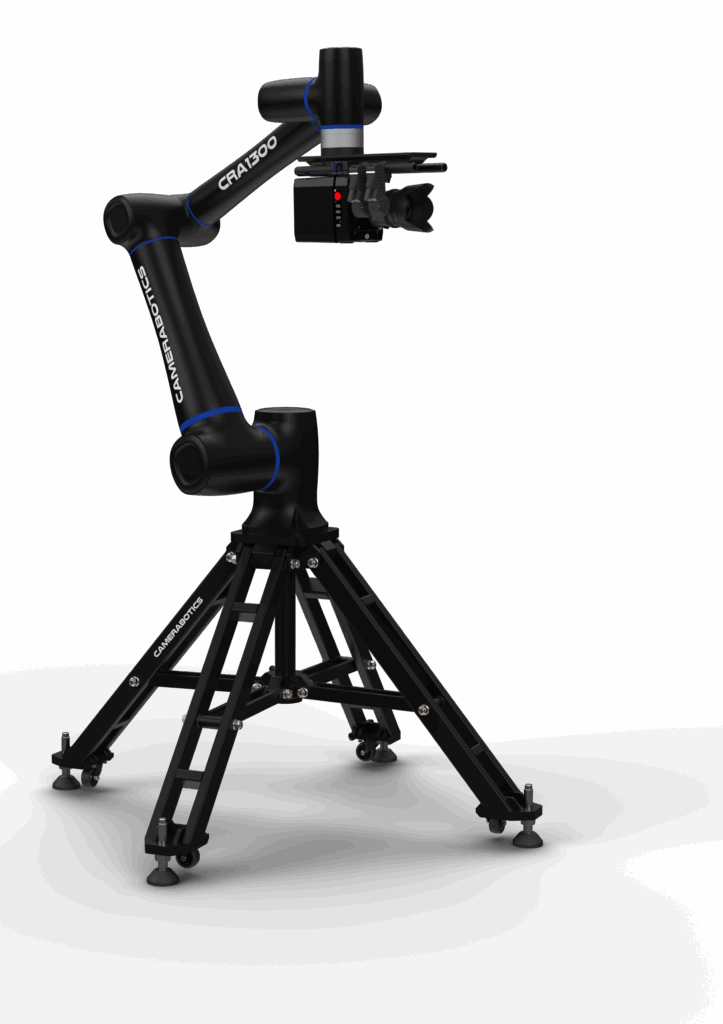

The Cinema Robot is safe around talent, fits on a tripod, and packs quickly and neatly away in flight cases for travel.

• 6-Axis Precision: Repeat complex moves exactly, shot after shot (~0.03 mm repeatability). Great for multi-layer VFX and consistent lighting transitions
• 10 kg payload
• Intuitive Control: Program moves on-the-fly with Camerabotics’ Lensmaster software or handheld joystick. No coding required; add keyframes by pushing or clicking
• High Performance: Smooth motion up to several meters/second and support for synchronized Focus/Iris/Zoom control
• Support for the Camerabotics Action Server

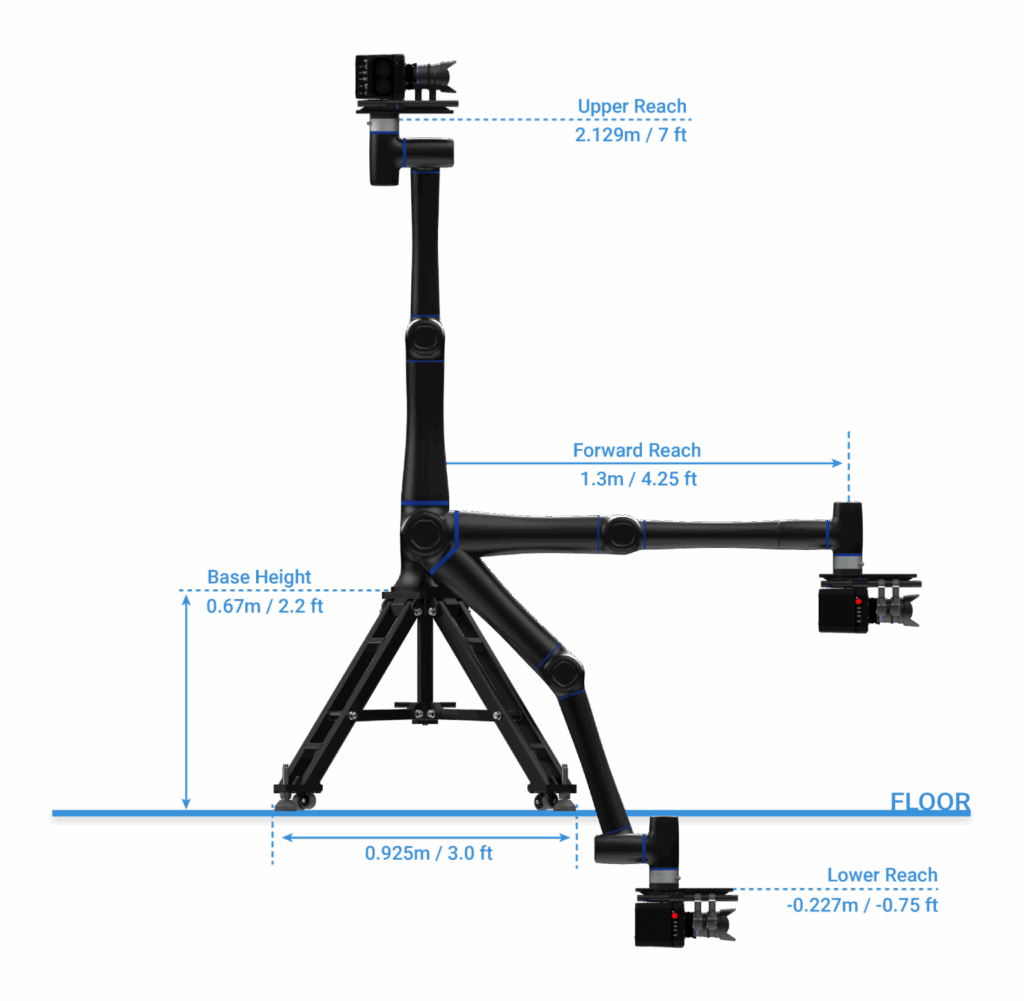

Rig Reach

Forward Reach (From Center) 1.3m / 4.26ft
Upper Reach (From Floor): 2.129m / 7ft
Lower Reach (From Floor): -0.22m / -0.75ft

Rig Kinematics
Range of Motion           Speed
Rotate        ±360°                           150°/s
Lift              ±360°                          150°/s
Arm            ±160°                            180°/s
Roll             ±360°                           223°/s
Tilt              ±360°                           223°/s
Pan             ±360°                            223°/s

Rig Weight

Max Payload: 10kg / 22lbs
Robot: 40kg / 88lbs
Base: 43kg / 95lbs Recommended extra weight (for high speed): 70Kg / 155lbs
Recommended extra weight (for high speed): 70Kg / 155lbs
Robot Controller: 9.5kg / 21lbs

Footprint

Base Height: 0.67m / 2.2ft
Base Footprint: 0.925m x 0.925m / 3.00ft x 3.00ft

Power Requirements
Operating Voltage:  100VAC~240VAC (50/60Hz)
Power Draw: 350W typical., 680W peak.
