Canon 17-120mm

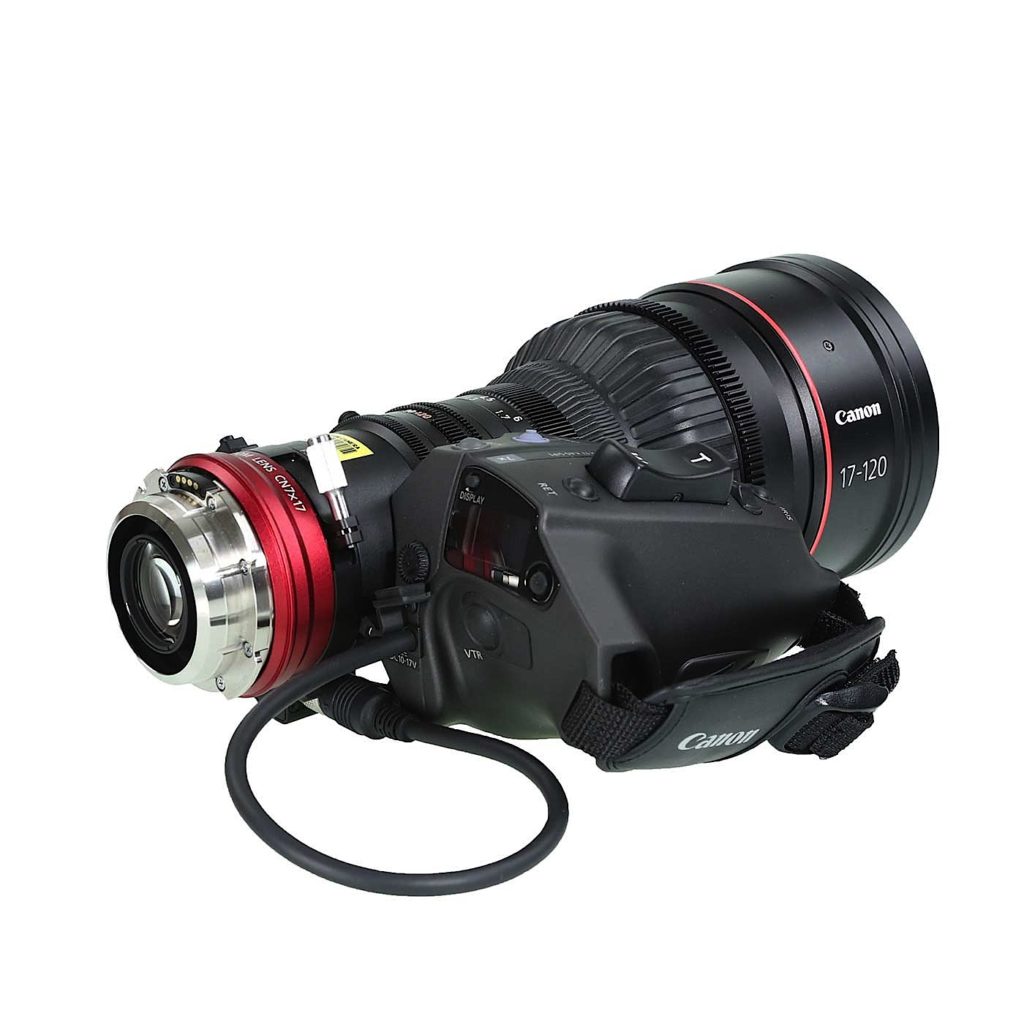

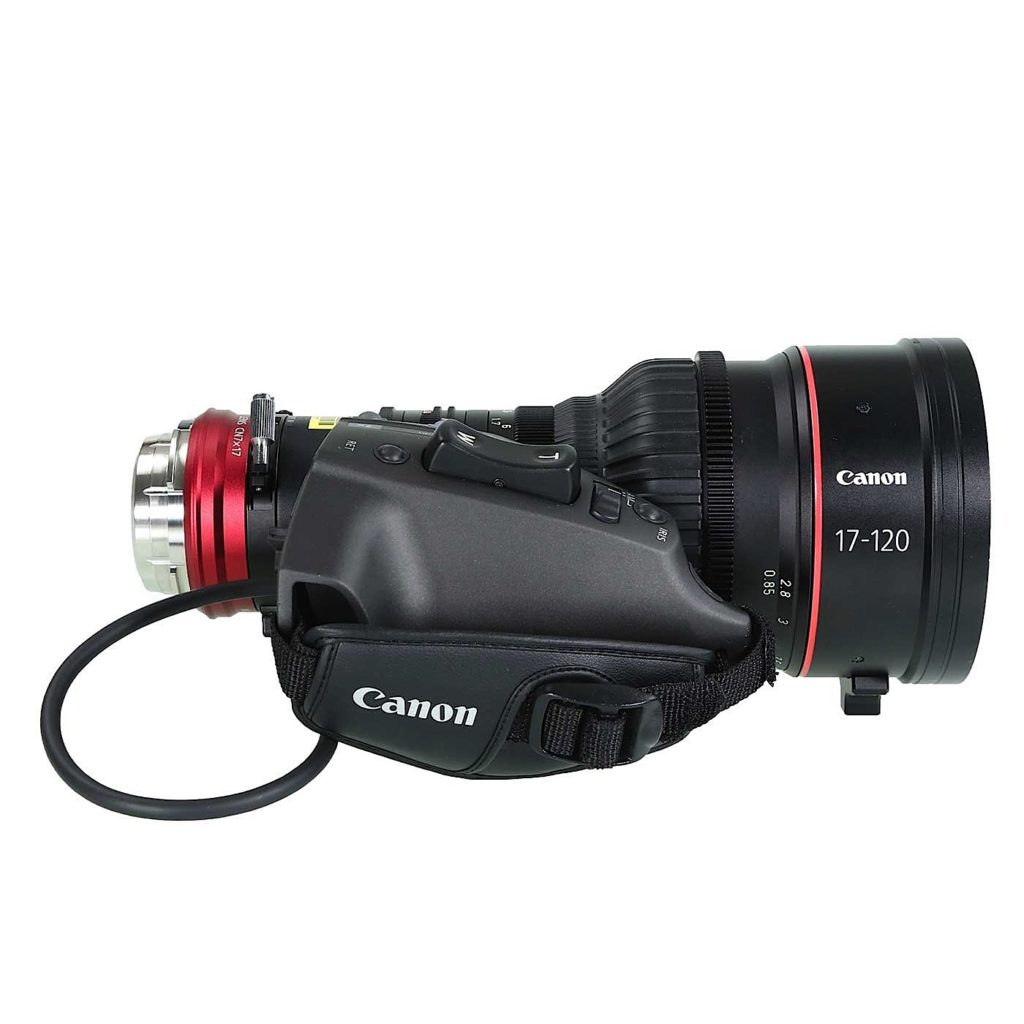

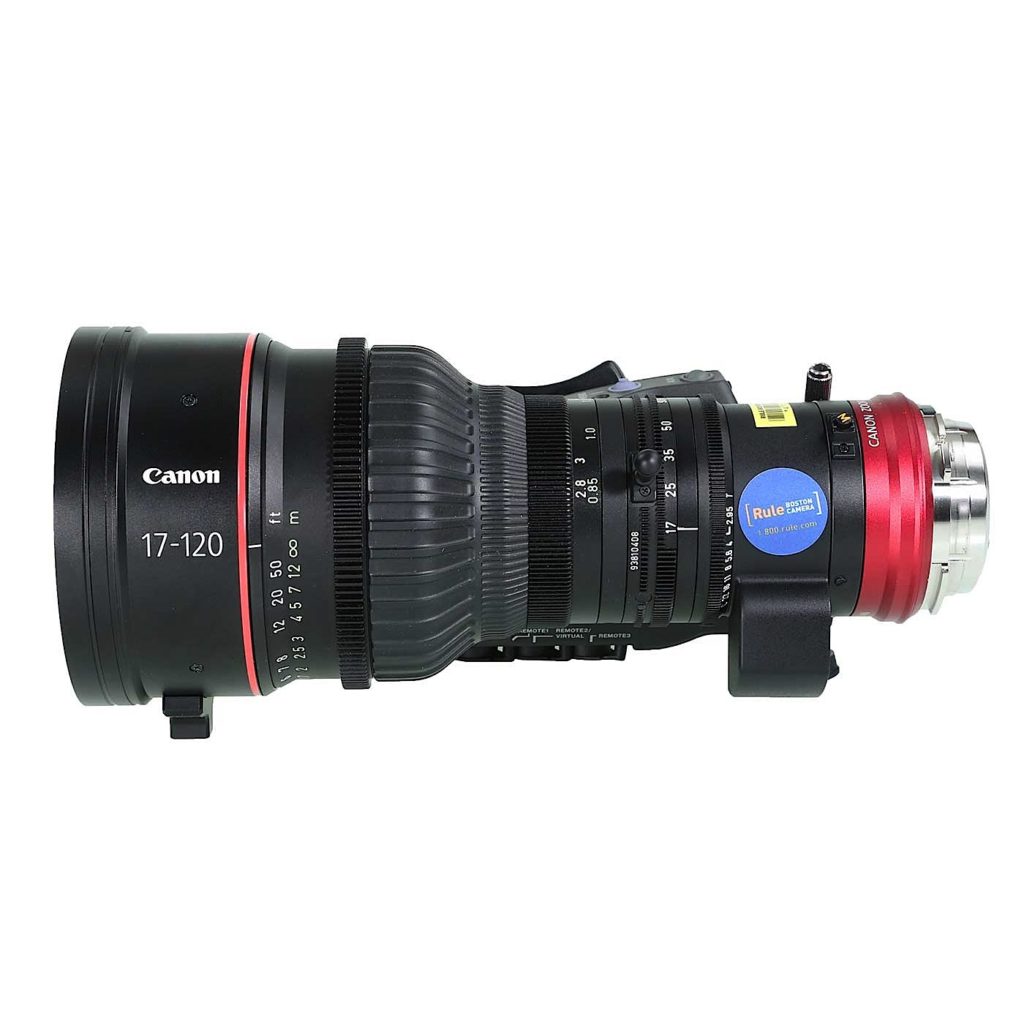

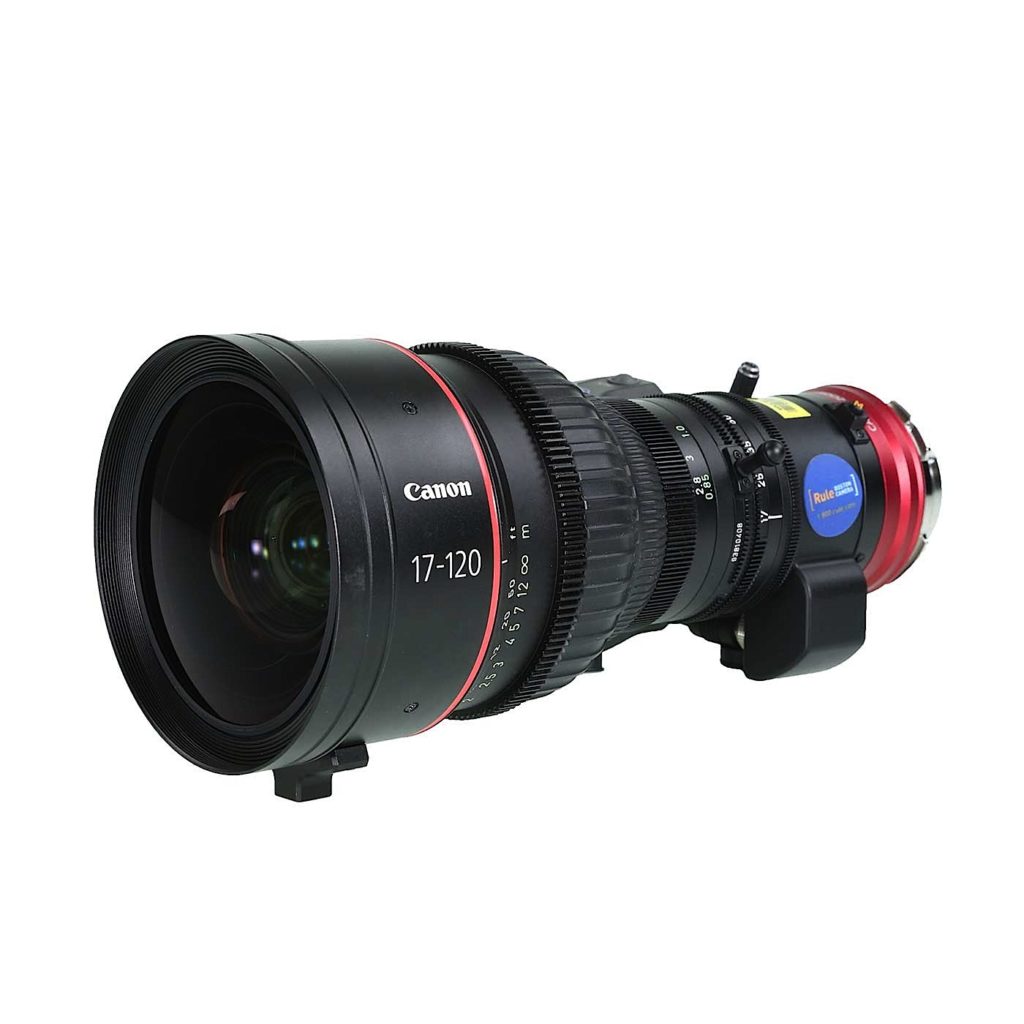

The CINE-SERVO 17-120mm T2.95-3.9 lens provides cinematographers and broadcast operations with a compact, lightweight design (only 6.4 lbs.) using Canon optical elements, while offering outstanding performance and reliability in professional shooting environments. The lens is fully 4K-ready, with a high optical resolution and support for Super35mm large-format cameras. An 11-blade aperture diaphragm helps ensure an artistic and beautiful representation of out-of-focus areas (or “Bokeh”). The lens also features a high 7x zoom magnification, wide focal length range of 17mm to 120mm, and a 180º smooth rotating focus ring. Acknowledging that broadcasters often need to control zoom, focus and iris/aperture in different ways than filmmakers, Canon has developed this zoom lens with full external servo control for drama, documentary and other broadcast productions. The servo drive unit is compatible with industry-standard protocols for control from a number of lens controllers including Canon’s standard broadcast lens controllers (ZSD-300D/FPD-400D) and multiple industry standard cinema lens controllers.

  • High Zoom Magnification 7x
  • 4K Ready
  • 11-Blade Iris
  • Designed for Cinema Style and Broadcast Applications
  • Enhanced Servo Drive Unit
  • Compact and Lightweight
  • Multiple Communication Capability with Compatible Cameras
  • 16-bit Metadata Output for Virtual Studio Systems
  • High Durability and Ruggedness
  • Power Supply
  • Also Available in EF Mount
  • Zoom Ratio: 7x
  • Focal Length: 17-120mm
  • Maximum Aperture: T2.95 at 17-91mm, T3.9 at 120mm
  • Iris Blade: 11
  • M.O.D (from Image Plane): 0.85m / 2.8′
  • Front Diameter: Φ114mm
  • Approx. Size (WxHxL): 125.0 x 174.2 x 254.9mm
  • Approx. Mass: 2.9kg
  • Pitch of Focus/Zoom/IRIS Gear: Focus: 0.8/0.5 Zoom: 0.5 Iris: 0.4
