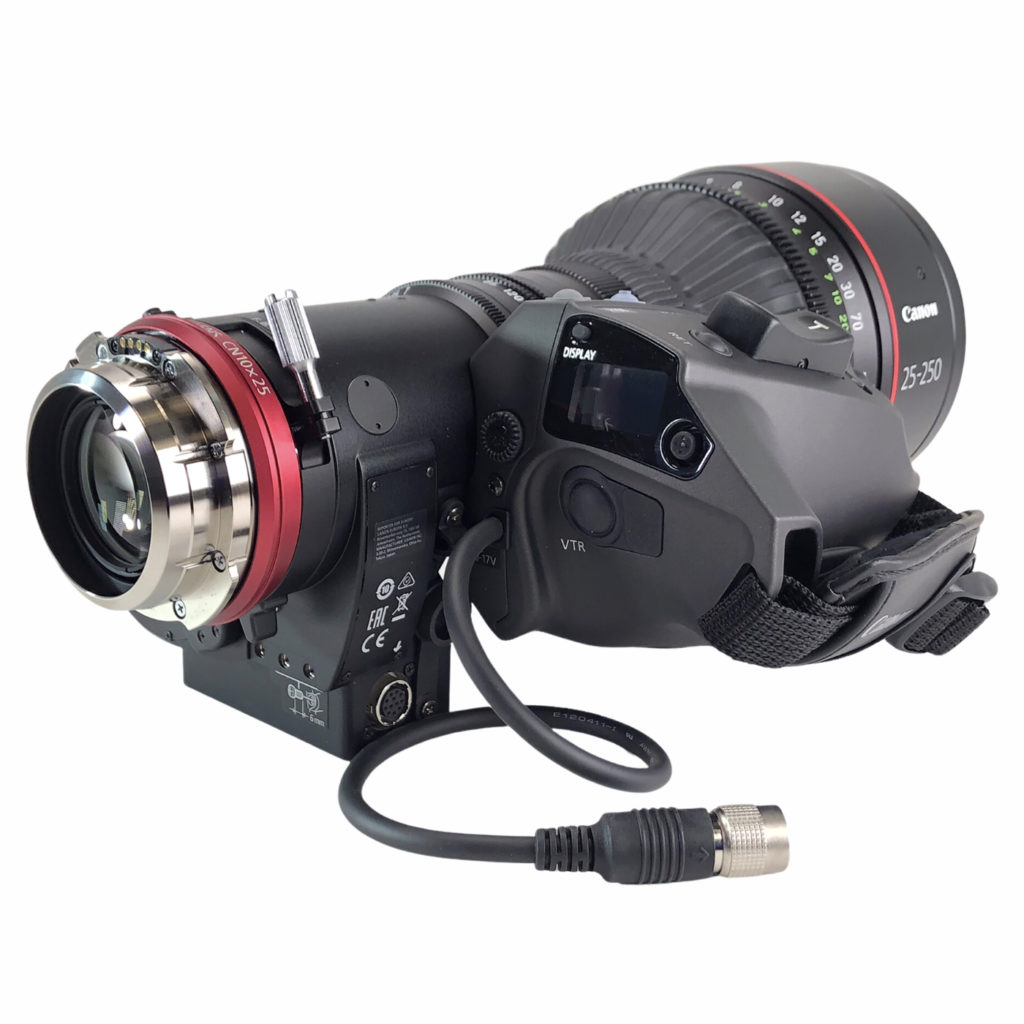

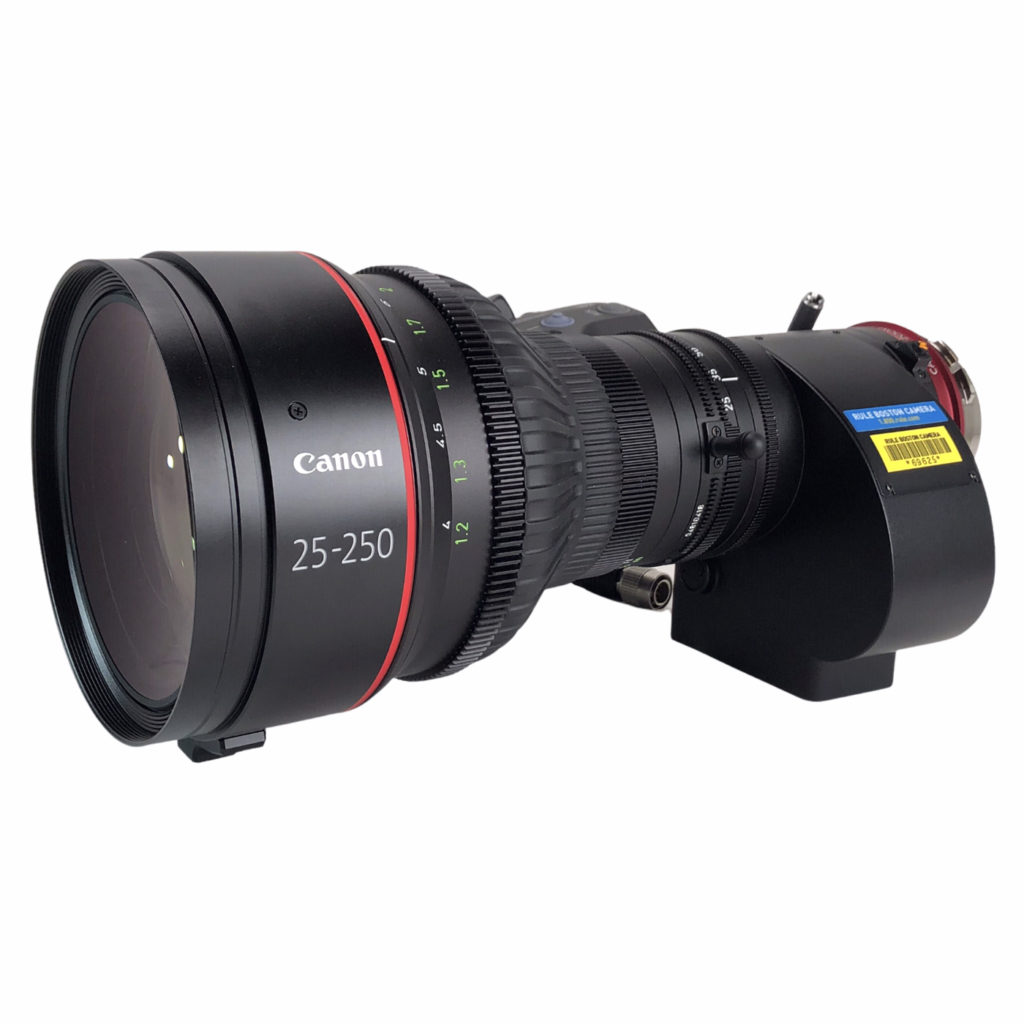

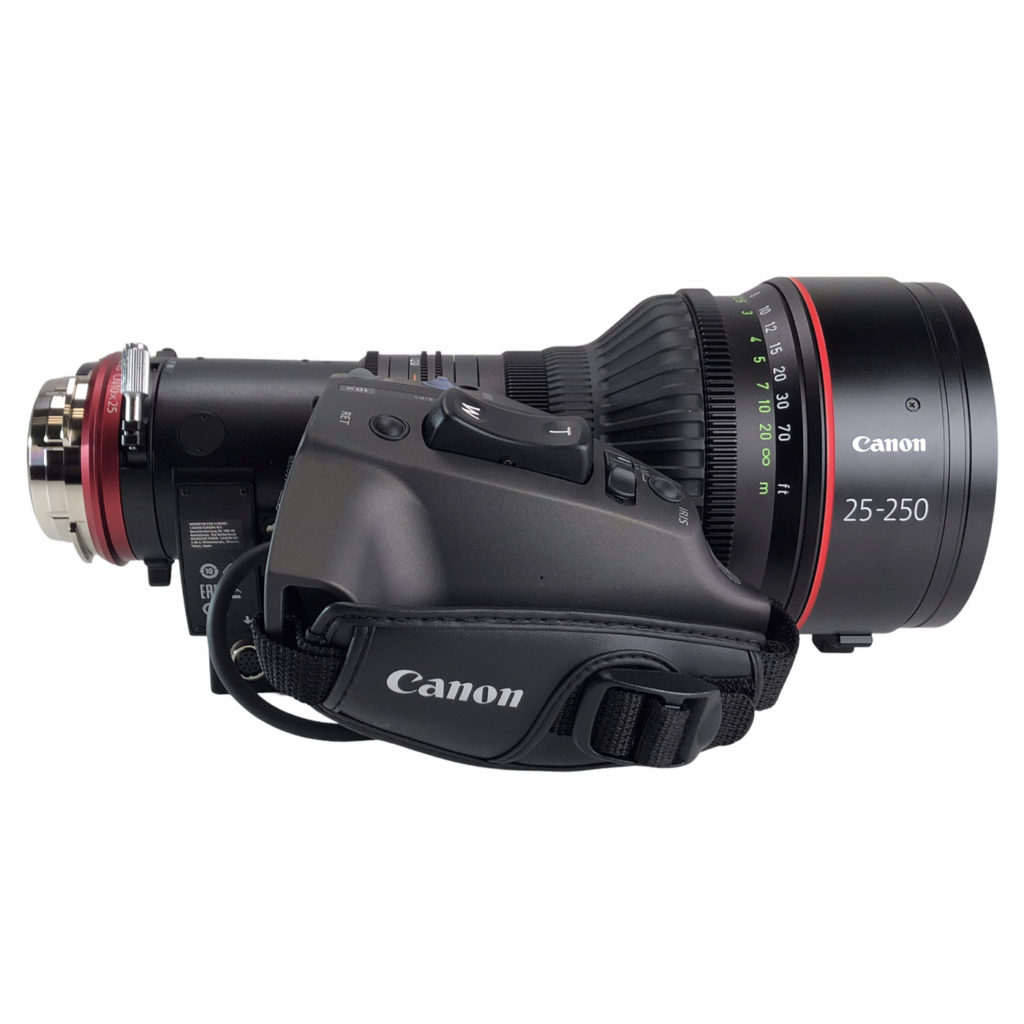

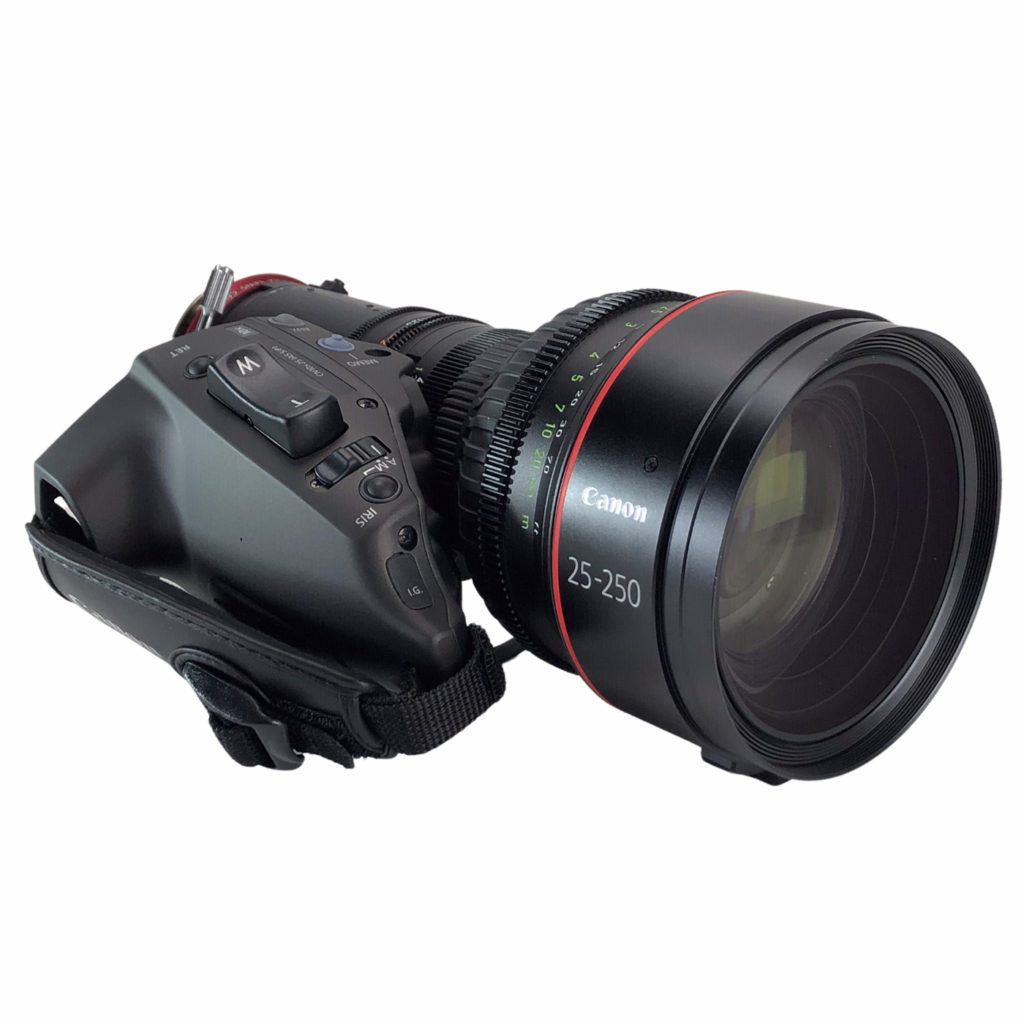

Canon 25-250mm

This durable PL mount lens brings 4K optical performance to Super 35-sized sensors. Measuring approximately 11″ long and weighing only 6.7 lb, this compact, lightweight lens is suitable for a variety of productions such as narrative, EFP/ENG or run-and-gun documentary.

Download Manual

Lens Design

  • Covers Super 35 sensors with 4K applications
  • 25 to 250mm focal range, extends to 375mm with 10x zoom at 1.5x magnification
  • T2.95 to T3.95 aperture
  • Parfocal design to maintain focus during zoom
  • Minimized focus breathing
  • LCD screen for features and settings
  • Focus ring rotates 180°
  • 16-bit high-resolution encoder for virtual studio systems
  • 11-blade iris
  • Compact and lightweight design

Servo Control

  • Servo control capability for all zoom, focus, and iris
  • Compatible with broadcast-style servo lens controllers such as Canon ZSD-300D and FPD-400D

Functionality

  • Image stabilization
  • Remote control of zoom, focus, and iris via camera
  • REC start/stop from ZSG-C10 Grip
  • Peripheral illumination correction
  • Chromatic aberration correction
  • T-stop/F-stop number display select
  • Flange-back Adjustment and Macro Function
  • Focal Length: 25 to 250mm
  • Lens Mount: PL Mount
  • Format: Super35/APS-C
  • Maximum T-Stop: T3.95
  • Minimum T-Stop: T2.95
  • Diagonal Angle of View: Super35: 53.9 to 30°,  Super35: 5.8 to 3.1°
  • Minimum Focus Distance: From : 4′ / 1.2 m
  • Iris Blades: 11
  • Front Diameter: 114 mm
  • Zoom Ratio: 10x
  • Connectivity: 1 x 12-Pin (Canon Lens) Control, Power
  • Dimensions (W x H): 7.6 x 5.2″ / 193.04 x 132.08 mm
  • Length: 11.1″ / 28.19 cm
  • Weight: 6.7 lb / 3.04 kg
