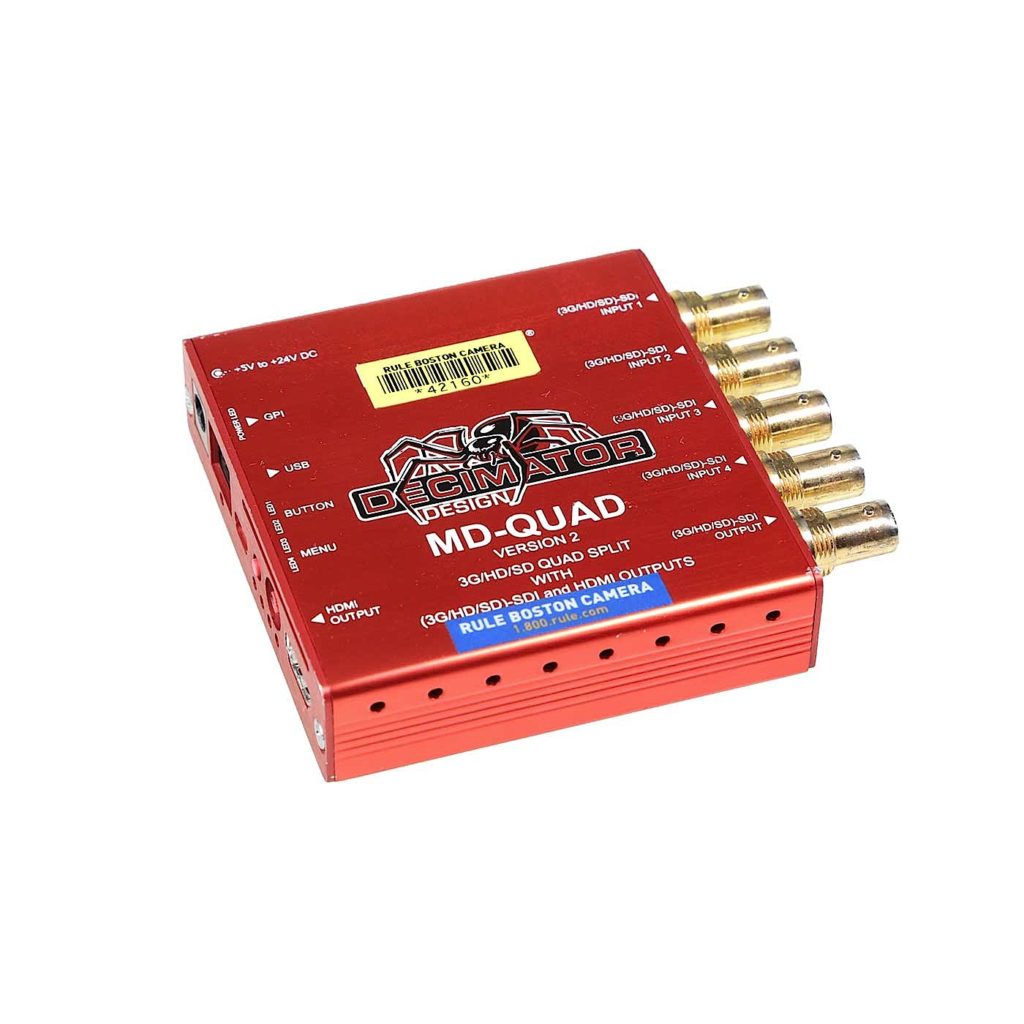

Decimator MD Quad

The Decimator MD Quad is a low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer.

  • Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer
  • Selectable output format in Quad-Split mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • 8-Channel Audio metering for each quadrant
  • Variable aspect ratios per quadrant
  • All 4 inputs can be displayed simultaneously on a single output
  • Pass-Through mode allowing any of the 4 inputs to be selected for output
  • Locking DC Power Socket

VIDEO FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s
1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
1080i@60/59.94/50Hz
1080p/psf@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
625i50
525i59.94

MENU OPTIONS

Input status for all 4 inputs
Output format
Output selection of Quad Split or input 1, 2, 3 or 4.
Output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
Individual aspect format for each input of Same as output, Letter-box or Pillar-box
Border Enable
Quad split mode reference of either Free-run or input 1
Enables for On-Screen Overlays
Basic Audio Meter control

INPUTS
Input Equalization > 100M using Belden 1694A
USB for control and updates
GPI on RJ-45

OUTPUTS

1 x 10-bit (3G/HD/SD)-SDI Re-clocked
HDMI

LED STATUS
Power
4 x Signal lock and rate

DIMENSIONS

90mm x 94mm x 23mm (3.5” x 3.7” x 0.9“)

POWER
+5V to +24V DC, 6 Watts
Positive Centre Pin
