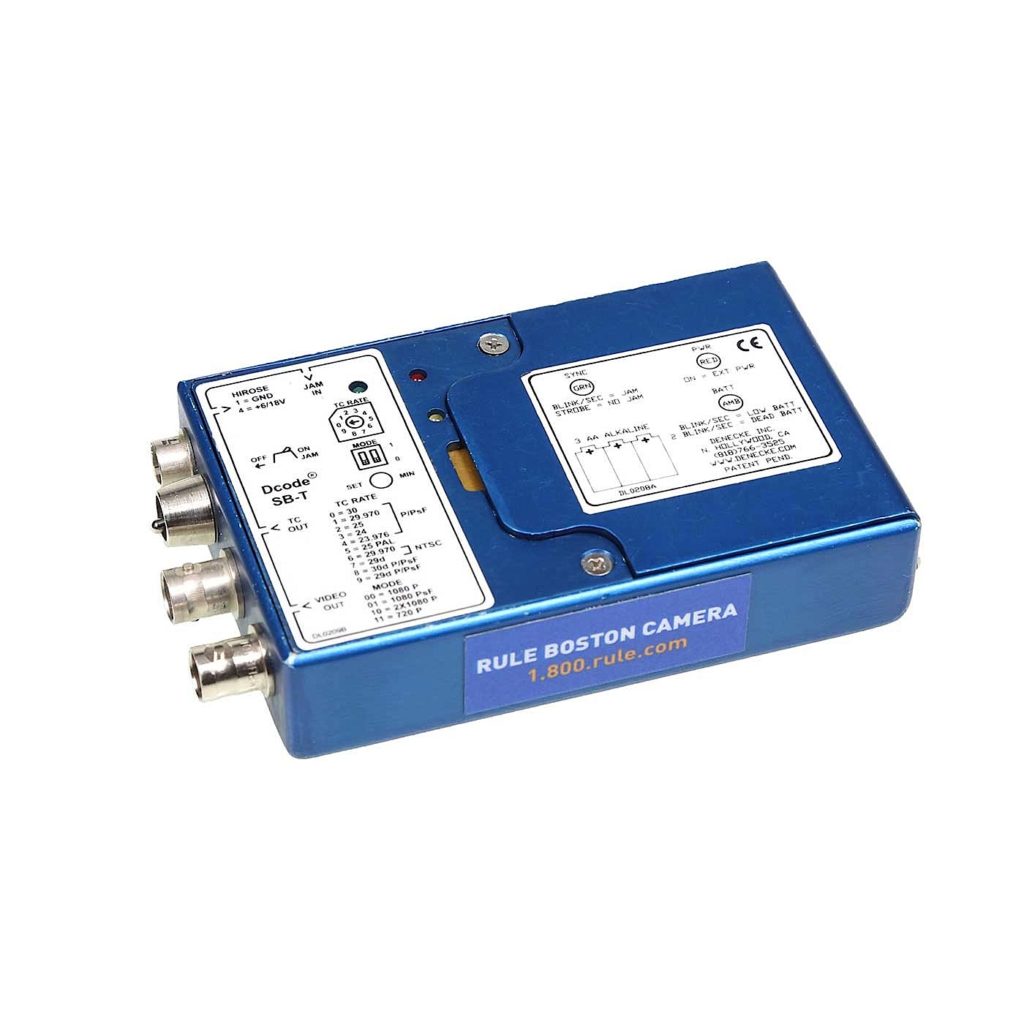

Denecke Dcode SB-T Timecode Generator

The Denecke SB-T reads, generates and jams to all the standard frame rates including 23.976 for High Definition Video. The outputs include Time Code and Video Sync in PAL and NTSC, as well as Trilevel for HD shoots. The Temperature Compensated Crystal Oscillator (TCXO) ensures low drift. High stability and ease of use make it a welcome addition to any shoot!

•Generates Trilevel Sync in all 1920 x 1080 and 1280 x 720 formats, composite PAL and NTSC, as well as all standard time code rates.
•Cross jams regardless of incoming frame rates.
•Jam from an external time code source or set it internally and use as a stand alone generator.
•Continuously jams to new code so there is no need to power down the unit to re-jam.
•Runs on 3 AA batteries or power externally through a 4 pin Hirose plug and use the AA batteries as a backup when the camera is powered down.
•Optional 5 Pin lemo socket instead of 4 pin Hirose
•Low and Dead battery warning.

  • Input: -15dB @ 4.7K; 1/8” mini phone jack
  • TCXO Crystal: +/- 1PPM @ -30º to +75º C
  • Battery Power: 3 Alkaline “AA” Batteries
  • Battery Life: 48+ Hours
  • External Power: 5.7v to 16v DC
  • Video Out: Composite: PAL & NSTC
  • Trilevel: All 1920 x 1080 Formats and 1280 x 720 formats
  • Size: 4.475” x 2.90” x 1.050”
  • Weight: .750 pounds (with batteries)
