The 2575D supports up to 133 pounds, making it perfect for larger studio or digital cinema cameras. Heads feature +90 to -90 degree tilt with infinitely adjustable counterbalance and a folding crank handle with numerical readout for fast, precise and repeatable counterbalance adjustments.

• Sinusoidal Counterbalance System, provides true finger-tip counterbalance at any angle within tilt range
• True Fluid Dampening
• Step-less fluid dampening specifically enhanced for film applications
• Dual Adjustable Pan Arms
• Four rosettes are offered for placing pan arm at front locations as well as rear
• Dependable Caliper Disk Brakes
• Fail-safe pan and tilt braking to ensure the safety of precious camera payloads

• Capacity: up to 133 lbs. (60.5 kg)
• Handle(s) 30°
• Bases: Mitchell or 150mm bowl (with adpt on request)
• Tilt: +90° / -90°
• Height: 8.4 in. (21.3 cm)
• Width: 12.4 in. (31.5 cm)
• Depth: 8.6 in. (21.8 cm)
• Weight : 22.9 lb. (10.4 kg)

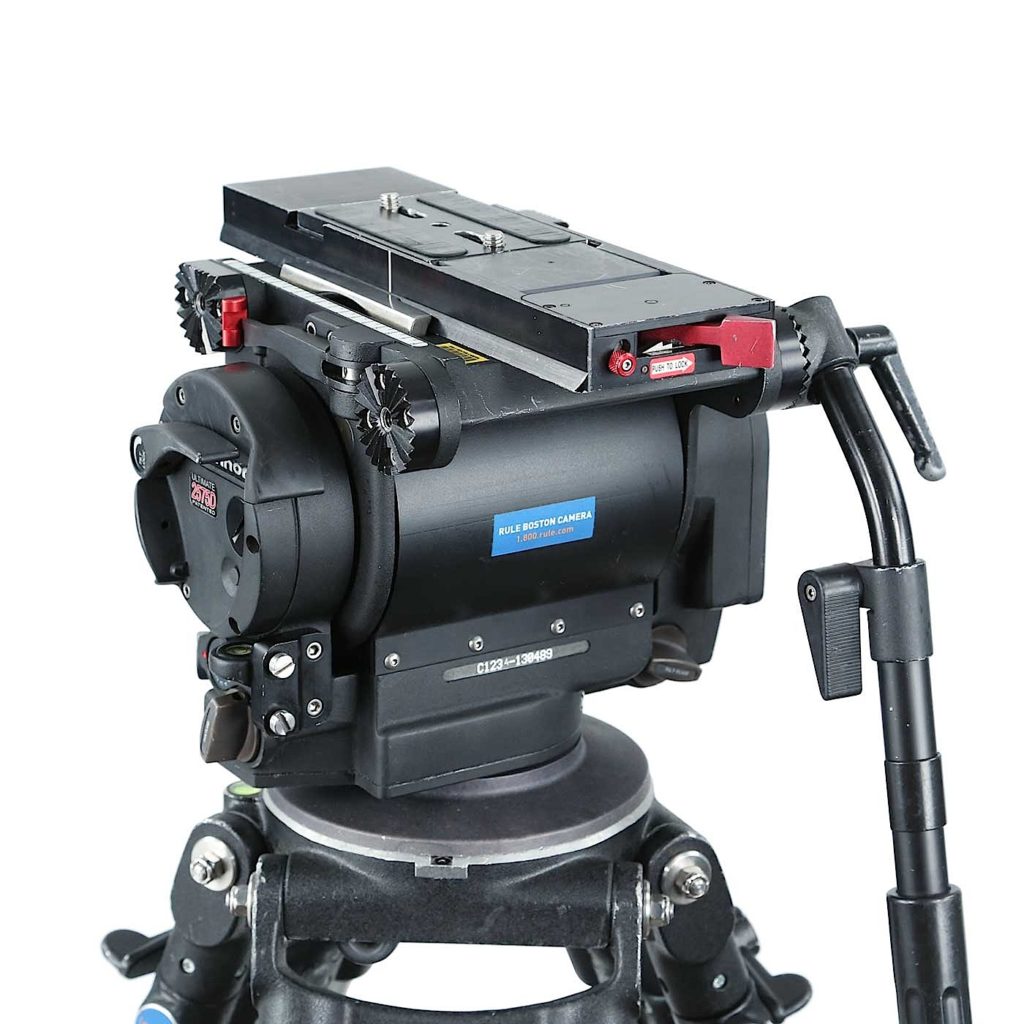

Oconnor 2575 Tripod Head
Pan Arm
Sliding COG Plate
Quick Release Plate
Tie-down
Front Box Bracket
Eye Piece Widget
Eye Piece Rod
(2) 3/8-16 Oconnor Plate Screws
