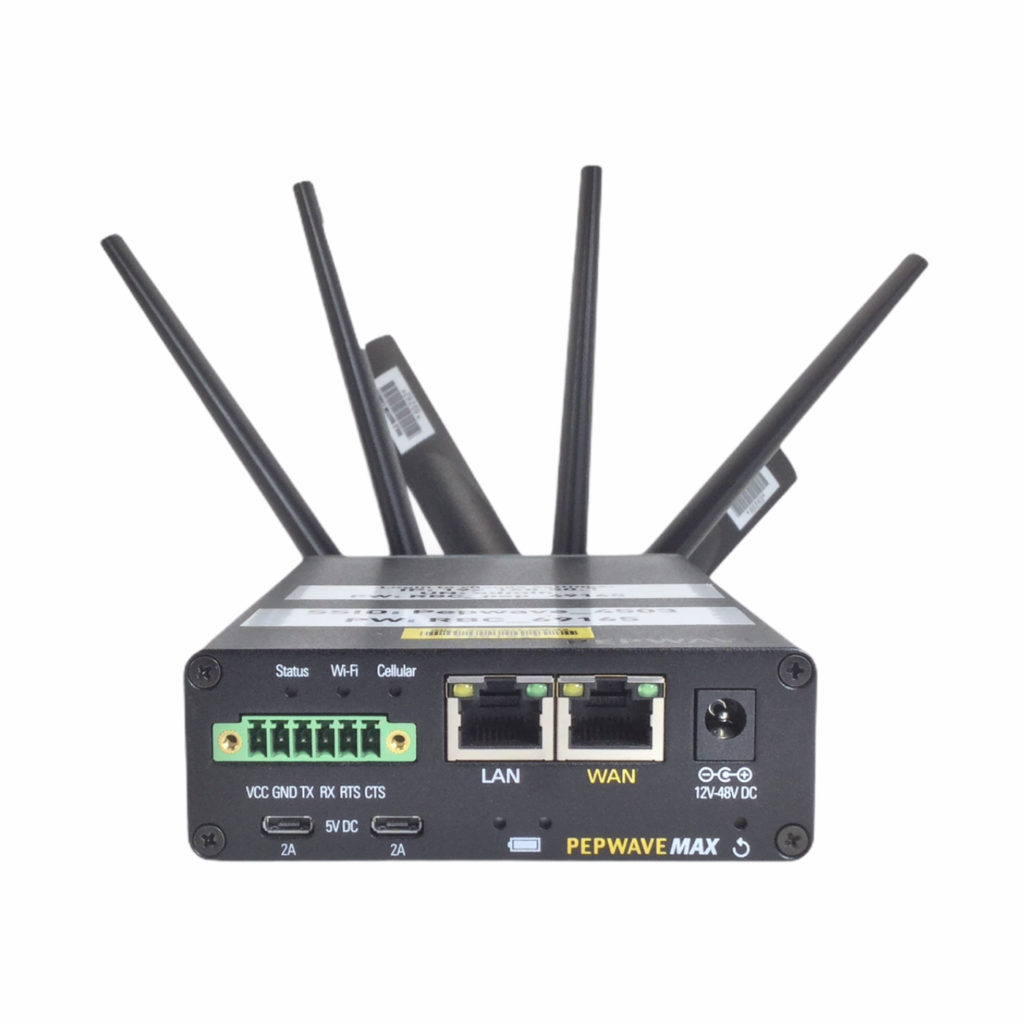

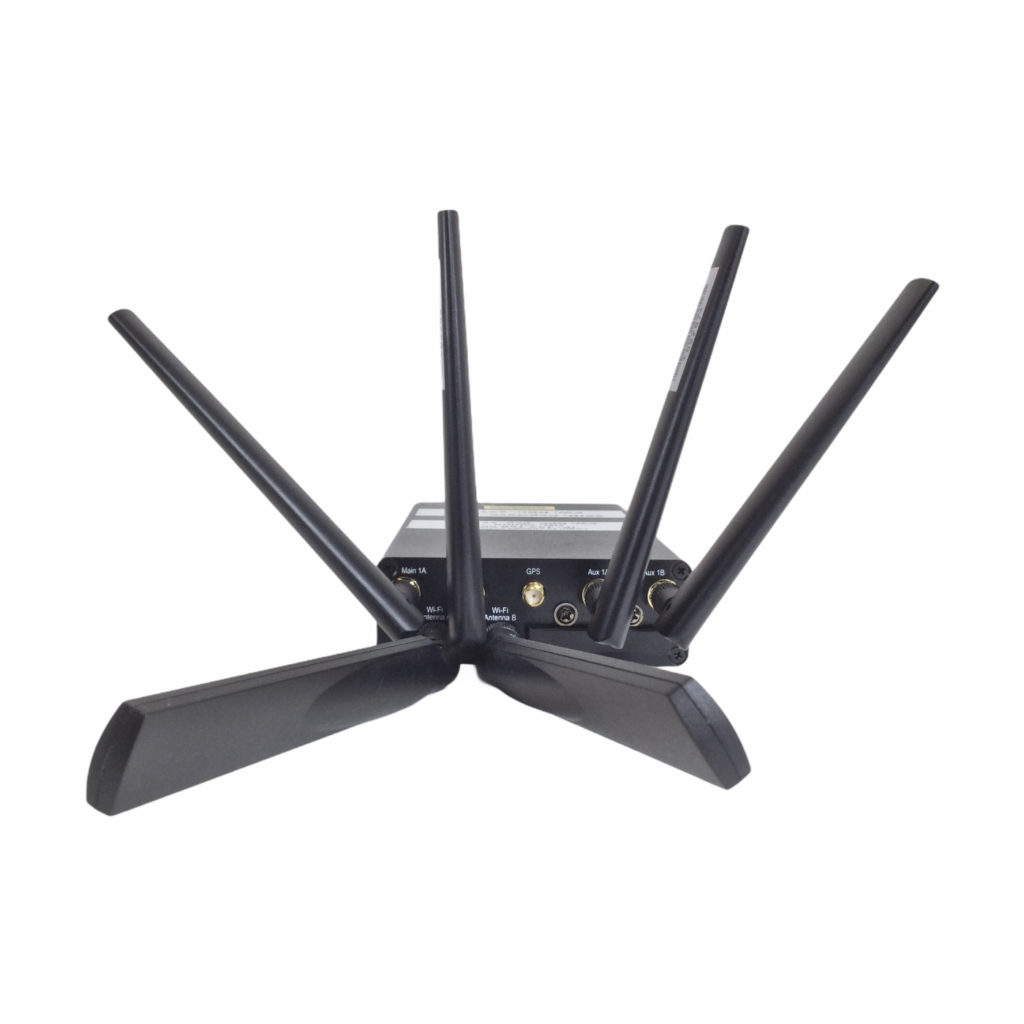

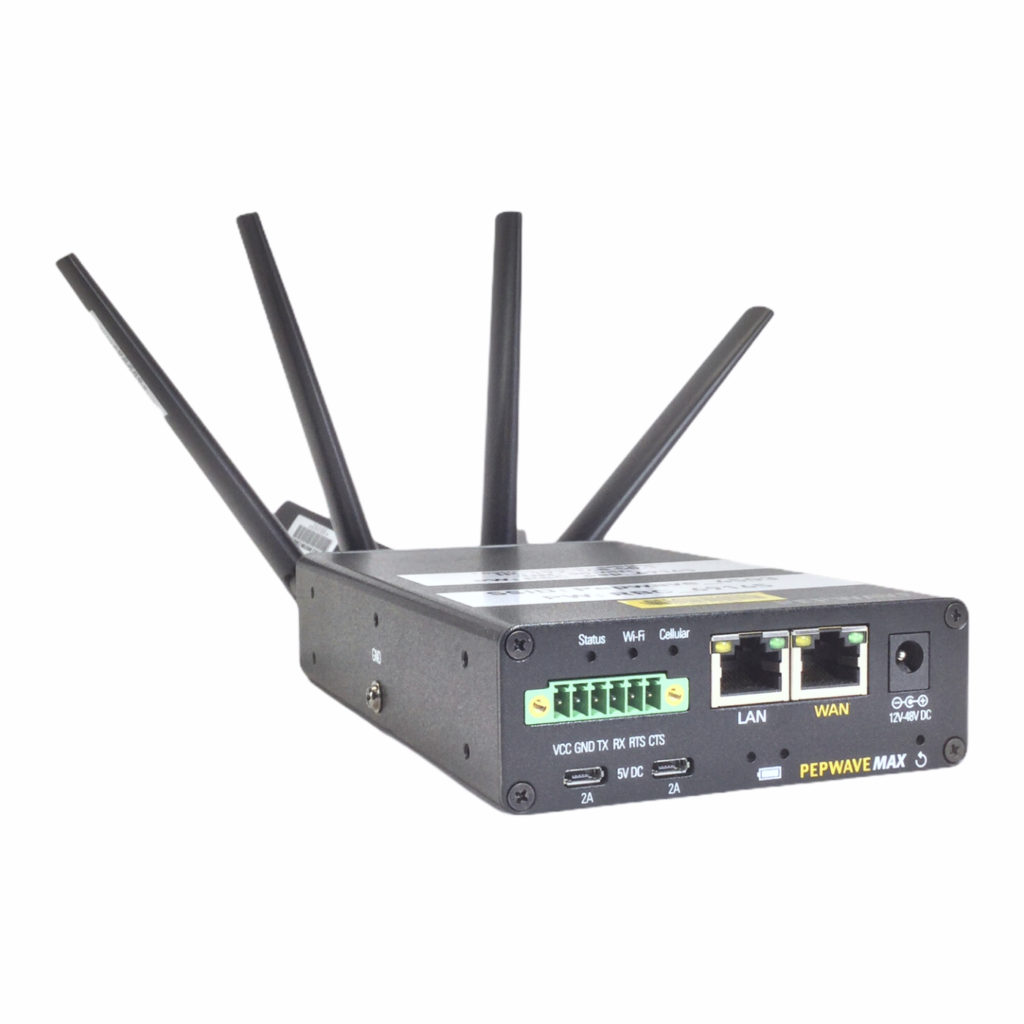

Pepwave MAX Transit
With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and embedded cellular modem, the MAX Transit is ready to deliver fast, reliable Wi-Fi hotspots for any travel or on-set needs. This portable network router has an embedded cellular modem holding two redundant sim cards (AT&T and Verizon). The bandwidth is provided to the router via WAN (ethernet from existing network) and/or Wi-Fi (from existing network) and/or embedded cellular modem.
Download Manual
WAN
- Support for PPPoE, Static IP, DHCP
- WAN Link Health Check
- Bandwidth Allowance Monitor
- Support for Dynamic DNS services
- IPv6 Support
LAN
- DHCP Server for LAN Clients
- Extended DHCP Option
- DHCP Reservation
- DNS Proxy for LAN Clients
- VLAN on LAN Support
Load Balancing
-
- Intelligent Failover
- Session Persistence
- Per-Service Load Distribution
- Multiple Algorithms
- Weighted
- Enforced
- Persistence
- Priority
- Overflow
- Least Used
- Lowest Latency
- Fastest Respond
- Time
Complete VPN Solution
-
- PepVPN
- SpeedFusion
- Site-to-Site VPN
- SpeedFusion Hot Failover
- SpeedFusion WAN Smoothing^
- SpeedFusion Bandwidth Bonding ^
- 256-bit AES Encryption
- Pre-shared Key Authentication
- Dynamic Routing
- X.509 Certificate Support *
- PPTP VPN Server
- RADIUS, LDAP Authentication
- IPsec VPN (Network-to-Network) @
- X.509 Certificate Support *
Networking
- NAT and IP Forwarding
- Static Routes
- Port Forwarding
- Many to One, One to One NAT
- NAT Pool
- SIP ALG, H.323 ALG
- UPnP, NAT-PMP
- WINS Server
Security
- 128-bit WEP
- WPA & WPA 2
- Stateful Firewall
- DoS Prevention
- Web Blocking
Advanced QoS
-
- Individual Bandwidth Limit
- Application Prioritization
- SIP, HTTPS, VPN QoS
- Custom Application QoS
AP Controller
- AP Controller Support
- Wi-Fi Usage Statistics
Global Positioning System
- Integrated GPS
- Device Location Map
- Location Tracking Data with InControl 2
- Fleet Management with InControl 2
Captive Portal Support
- Support for Wired and Wireless LAN Clients
- Support RADIUS Authentication
- Time and Usage Quotas on Open Access Mode
- Built-in Customizable Splash Page
- Social Wi-Fi Hotspot support
- External Captive Portal support
|
Embedded 4G LTE/3G |
1 |
|
SIM Card Size |
Mini-SIM (2FF) |
|
Redundant SIM Slots |
Yes |
|
Ethernet WAN Ports |
1 (GE) * |
|
Ethernet LAN Ports |
1 (GE) |
|
Recommended Users |
150 |
|
Router Throughput |
400Mbps |
|
Wi-Fi Standard |
802.11ac/a/b/g/n 2×2 MIMO |
|
Maximum number of SSID: |
16 |
|
Transmit Power (2.4GHz) | (5GHz) |
19dBm | 21dBm |
|
Simultaneous Dual-Band Wi-Fi AP |
Yes |
|
Wi-Fi as WAN |
Yes |
|
High Availability |
Yes |
|
WAN as LAN |
Yes |
|
Web Blocking |
Yes |
|
Content Filtering Blacklist |
Lite |
|
PepVPN |
Yes |
|
SpeedFusion Hot Failover |
Yes |
|
SpeedFusion WAN Smoothing |
No |
|
SpeedFusion Bandwidth Bonding |
No |
|
Number of PepVPN/SpeedFusion Peers |
2 |
|
PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES) |
100Mbps | 60Mbps |
|
Number of IPsec Tunnels |
5 |
|
Enclosure |
Indoor Metal |
|
Terminal Block Power Connector for Mobile/Vehicular Deployment |
Yes |
|
Dimensions (Height x Width x Depth) |
6.3 x 3.8 x 1.3 inches | 160 x 97 x 33.5 mm |
|
Weight |
1.3 pounds | 590 grams |
|
AC Adapter |
AC Input 100V – 240V / DC Output 12V, 2A |
|
Power Input |
2x Micro-USB B with 5V, 2A each |
|
Power Consumption |
18W (max.) |
|
Operating Temperature |
-40° – 149°F | -40° – 65°C |
|
Humidity |
15% – 95% (non-condensing) |
- Pepwave MAX Transit LTEA
- 12V2A Power Supply
- XLR to Phoenix 5-pin Power Cable
- Verizon Sim Card
- AT&T Sim Card
- 4x 2dBi 4G LTE Antennas
- 2x 2x 5dBi Wi-Fi Antennas
- 1x GPS Active Antenna
- 25’ Ethernet Cable
- 10’ Ethernet Cable
