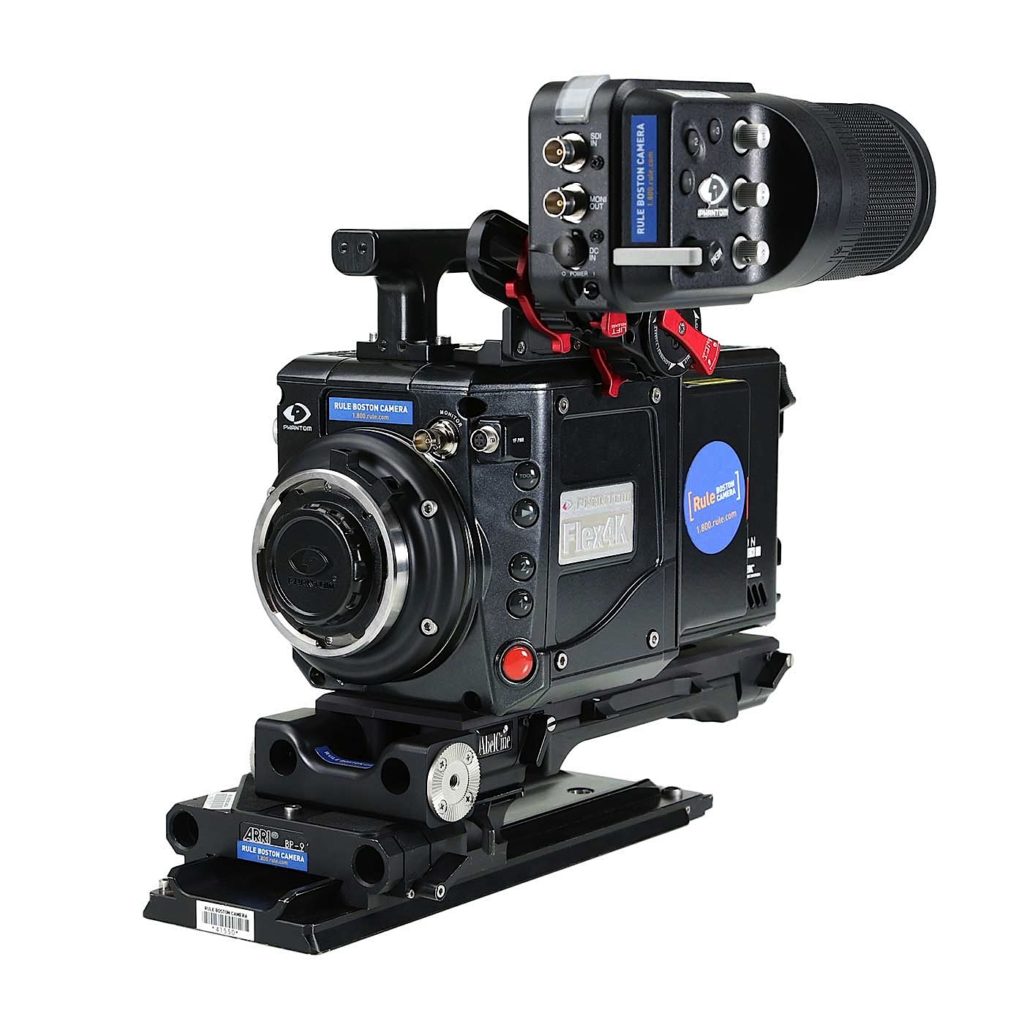

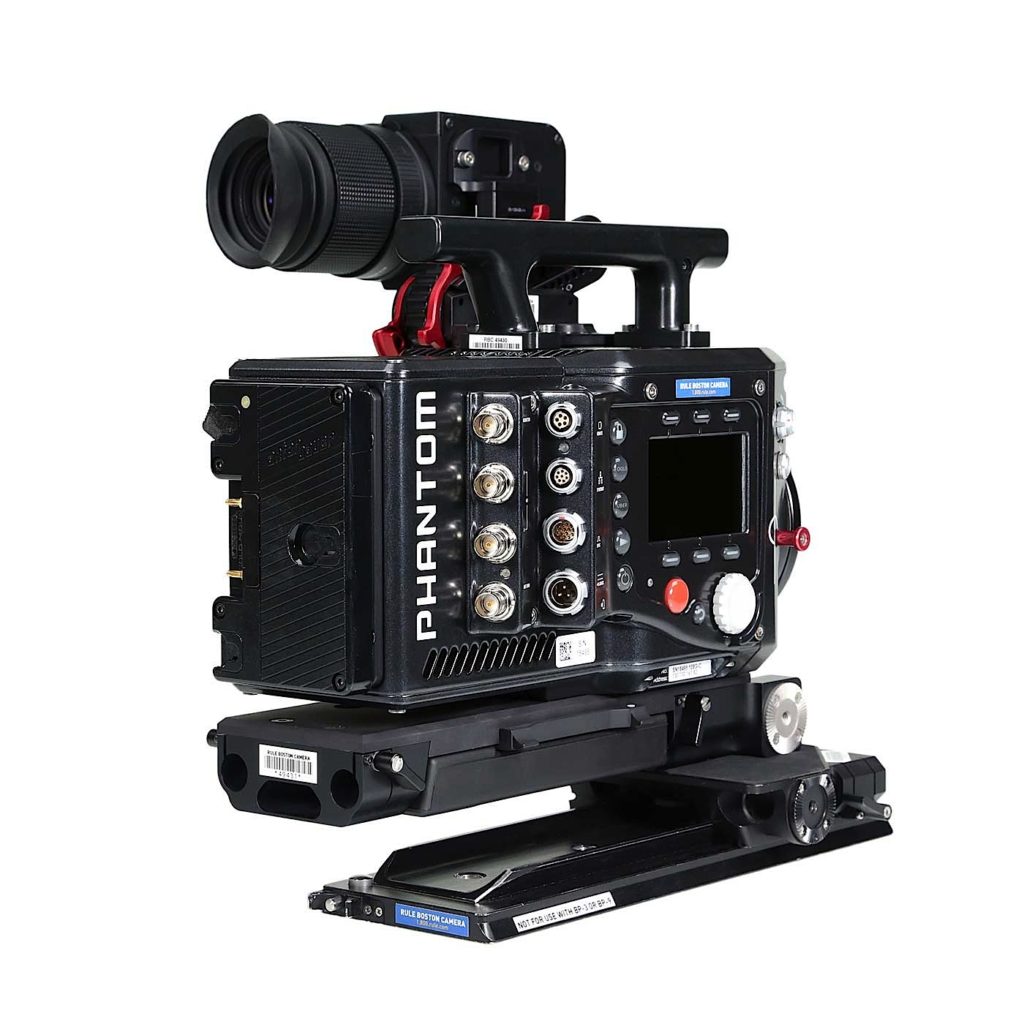

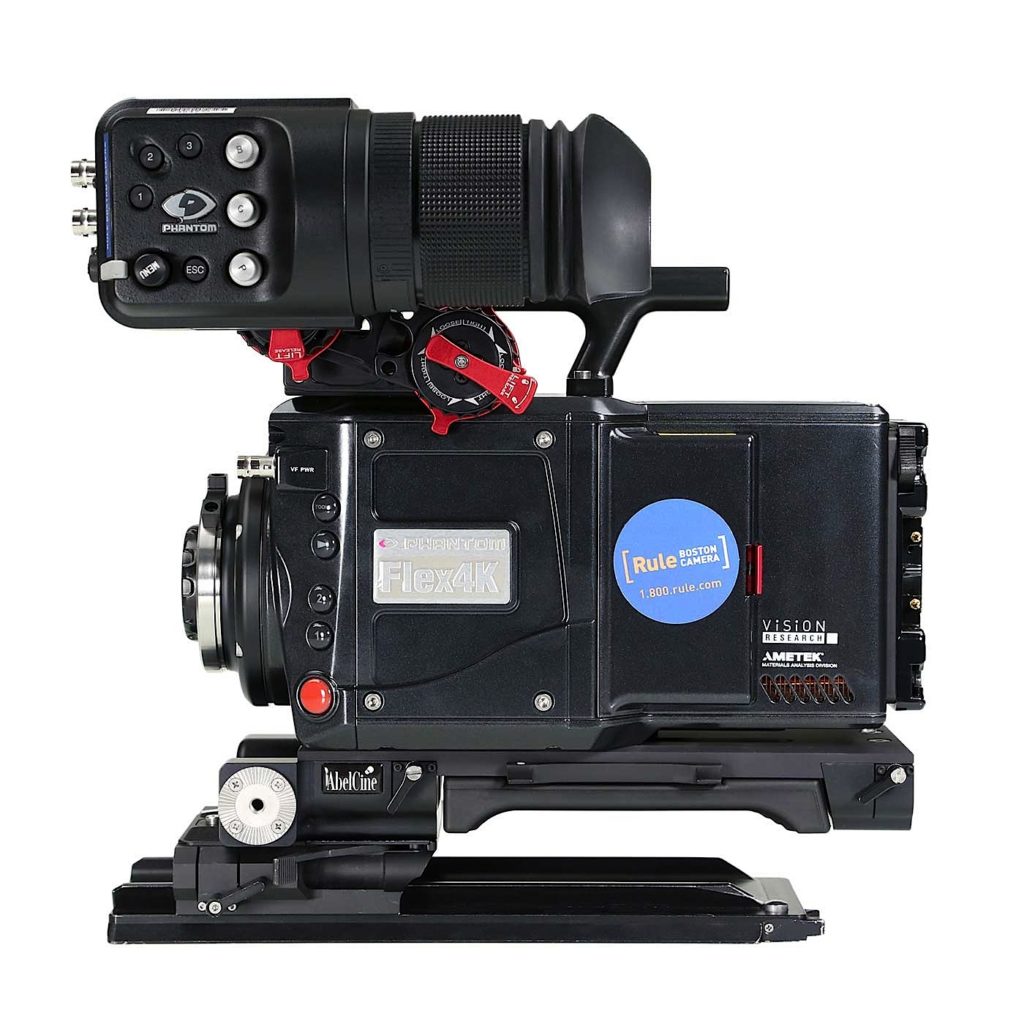

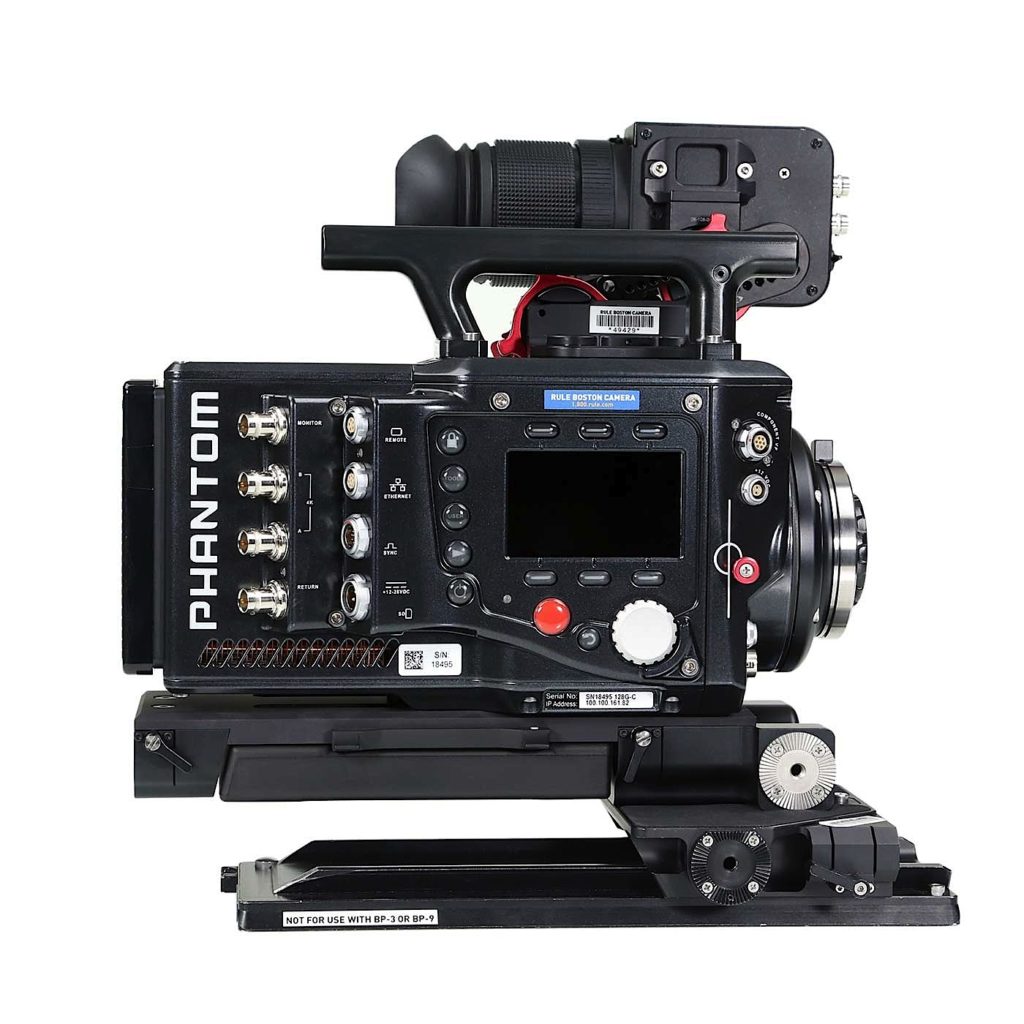

Phantom Flex 4K

The Phantom Flex4K is a full-featured digital cinema camera, capable of speeds that range from standard frame rates up to 1,000 frames-per-second (fps) at 4K and almost 2,000 fps at 2K resolution. Building upon the award winning technology of Phantom digital cinema products, the Flex4K combines features found in the latest cinema cameras with those otherwise found only in specialty cameras.

With the option to record either uncompressed raw or with industry-standard compression, the workflow is just as flexible as the camera’s frame rate. The introduction of in-camera audio provides a high quality scratch track for sync- sound recording. The latest in non-volatile storage technology is used to move data quickly, while a complete on-camera menu ensures setup and control is intuitive, maximizing efficiency on set.

Designed with the cinematographer in mind, the form factor of the Phantom Flex4K adapts to a variety of shooting environments. From the studio to extreme conditions, the Flex4K is built to perform. At 4K resolution the Flex4K offers super 35mm depth of field. The custom 9.4 megapixel sensor captures intricate detail with impressive dynamic range and low noise. This means excellent image quality and low-light performance. The camera’s streamlined design and thermal architecture makes the camera quick- to-shoot with an ultra-stable image.

  • Full resolution: 4096 x 2304
  • 4096 x 2160 @ 1000 fps
  • 2048 x 1080 @ 1975 fps
  • 1 to 360 adjustable electronic shutter
  • Exclusive Phantom CineMag® IV hot-swappable recording media
  • 3G HD-SDI video outputs
  • Dual-link 3G SDI for 4K video per SMPTE ST 425-3
  • Audio: AES/EBU and S/PDIF standards
  • Resolution / Max Frame Rate:
    4096 x 2304 (max res) – 940 fps
    4096 x 2160 (4K standard) – 1000 fps
    2048 x 1080 – 2000 fps
    1280 x 720 – 3000 fps
  • Pixel Size: 6.75 micron
  • Sensor Size: 27.7 x 15.5mm
  • Sensor @ 1080p: 13 x 7.3mm
  • Lens Mount: PL (standard), Canon EOS, Nikon F/G
  • Recording Media: Phantom CineMag IV
  • Size: 11.5 x 5.0 x 7.9 in (LxWxH); 29.2 x 14 x 20 cm
  • Weight: 14 lbs (6.3 kg) w/o lens or viewfinder
  • Power Input: 1x 3-pin 24V input (+14-28vdc)
  • Battery Mount: Integrated standard battery back
  • 12V Power Aux Outputs: 1x 2-pin Lemo, 1x 4-pin Hirose for monitor, 24V Power Aux Outputs, 2x 3-pin Fischer w/ R/S
  • Ethernet: 1x 8-pin Fischer for optional software
  • 1x 5-pin Fischer for RS232 & +12-24V DC
  • 1x Bluetooth antenna for remote operation (up to 100m)
  • 3x 3G HD-SDI BNC
  • 1 additional SDI output for viewfinder, 1 return, includes Genlock support
  • 1 Fischer: F-sync, Time code in & out, trigger
  • Viewfinder: 1 selectable Fischer or Hirose for component video, and 1x 3G HD-SDI BNC for SDI-based viewfinders (including Phantom OLED HD VF)
