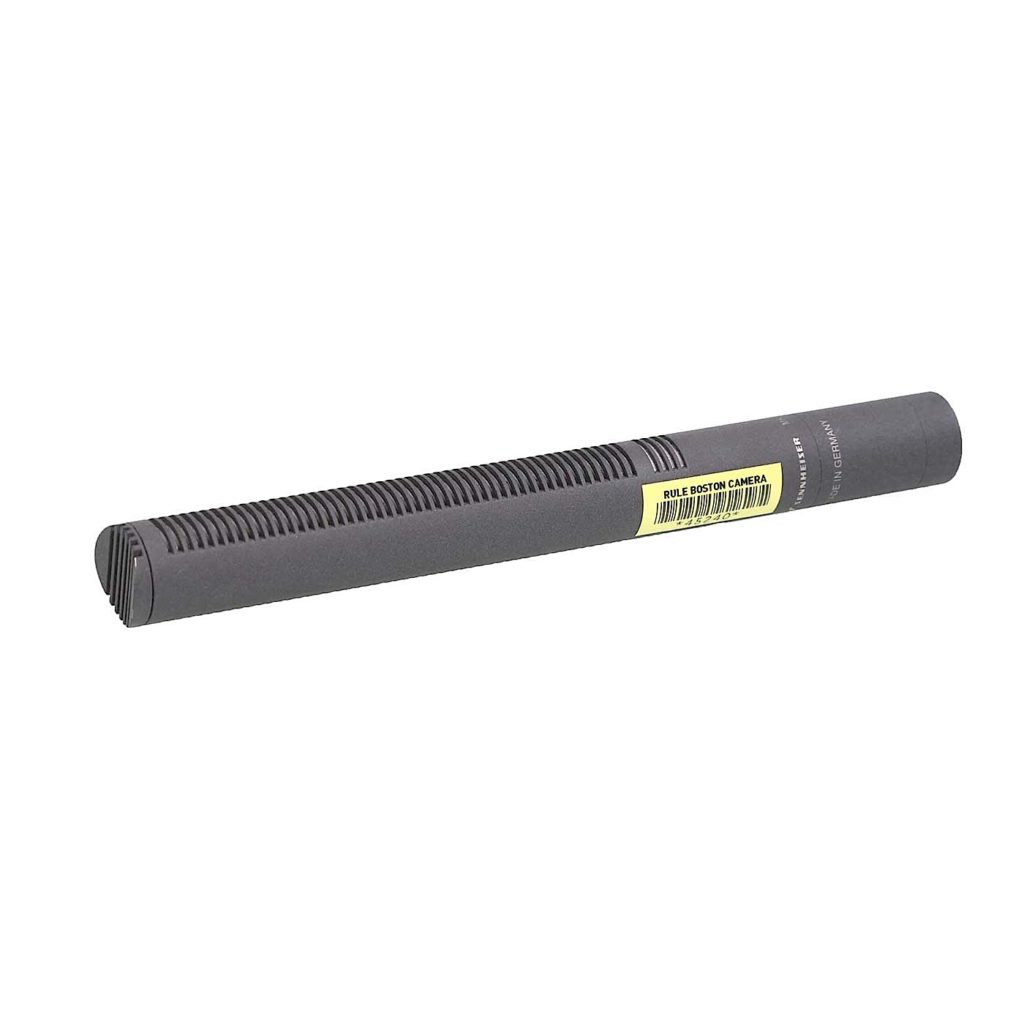

The MKH 8060 offers true and natural sound in a lightweight, rugged package. Reliable under the toughest climatic conditions, the MKH 8060’s symmetrical RF transducer design produces high sensitivity, low distortion, excellent transient response. The short interference tube yields a pleasing supercardioid / lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results.

• Super-cardioid/lobar pick-up pattern
• Very natural sound
• Undistorted off-axis sound
• Exceptionally low inherent self-noise
• Extremely low distortion
• Transformerless and fully floating balanced output
• High output signal
• Rugged metal housing
• Non-reflective Nextel® coating
• Extremely weather-proof due to RF circuit
• Ideal for camera mounting due to compact design
• Becomes a digital mic when combined with the MZD 8000 digital module
• Timbrally identical with the other 8000-series microphones for optimum aural compatibility

• Transducer principle: RF condenser
• Pick-up pattern: super-cardioid/lobar
• Frequency response: 50–25,000 Hz
• Sensitivity: -24 dBV/Pa (63mV/Pa)
• Max. sound pressure level: 129 dB SPL
• Equivalent noise level: 11 dB (A) (DIN-IEC 651), 23 dB (CCIR 268-3)
• Phantom powering: 48 ± 4 V Phantom (P48, IEC 61938)
• Current consumption: 3.3 mA
• Nominal impedance: 25 Ω
• Min. terminating impedance: 2 KΩ
• Weight: 2.8 ounces (3.9 ounces with XLR module)
• Length: 5.7 inches (7.0 inches with MZX 8000 XLR module)
• Diameter: .75 inches (19 mm)
• Operating temperature: -14° F to 140° F (-10° C to 60° C)
