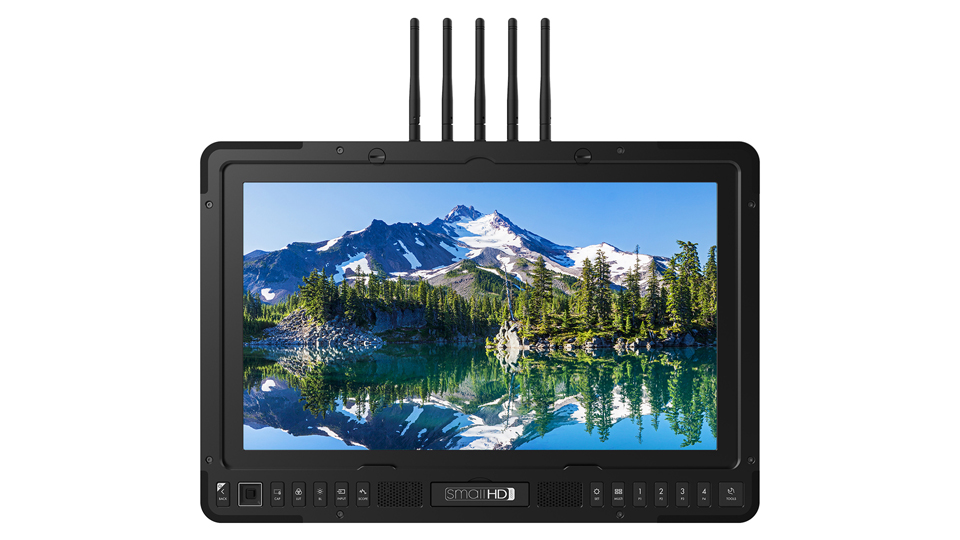

SmallHD 1703 Bolt 17″
Reference grade 17 inch Production Monitor with Built-in Teradek Sidekick II Receiver provides incredible color accuracy, daylight visibility, and built-in zero-delay wireless.
- 17″ wireless production monitor with built in Sidekick II receiver
- 1920 x 1080 with 1000 nits bright
- Input: 2x SDI, 1x Wireless
- Output: HDMI, 2x SDI
- Incredible color accuracy, daylight visibility, and built-in zero-delay wireless
- Wireless Compatibility: Teradek Bolt 500, 1000, 3000 transmitters, SmallHD TX monitors
Display
| Panel Type | IPS-Type LCD |
| Display Size | 17.00″ / 43.2 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1400:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 133 ppi |
| Color Gamut | 100% DCI-P3 |
I/O
| Video | 2 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Output 1 x HDMI Type A Output |
| Embedded Audio | SDI: 8-Channel |
| Audio I/O | 1 x 1/8″ / 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Power I/O | 1 x XLR 4-Pin Input 1 x LEMO 2-Pin (2 A) Output |
| Other I/O | 3 x USB-A 2.0 |
| Card Slot | 1 x SD |
Format Support
| Video Format | SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
| Video Signal Conversion | SDI to HDMI |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 to 34 VDC |
| Battery Type | None |
| Power Consumption | 20 W (Idle) 104 W (Maximum) |
Mounting
| Mounting | 6 x 1/4″-20 Female 6 x 3/8″-16 Female |
Environmental
| Certifications | CE, FCC, IC, RoHS, as per Manufacturer |
| Operating Temperature | 32 to 100°F / 0 to 37°C |
| Storage Temperature | 0 to 104°F / -17 to 40°C |
General
| Dimensions | 17 x 11.7 x 2.5″ / 43.2 x 29.7 x 6.3 cm, Including |
| Weight | 12.26 lb / 5.56 kg, Including |
