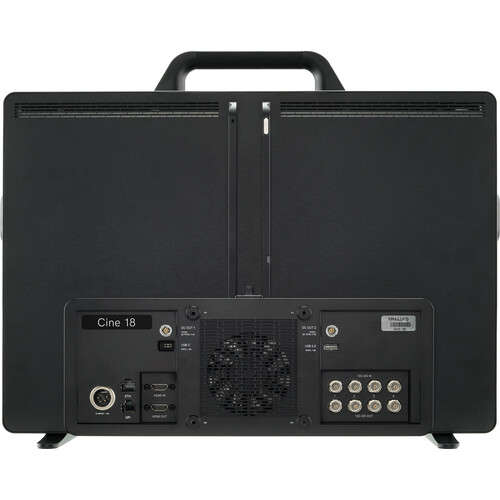

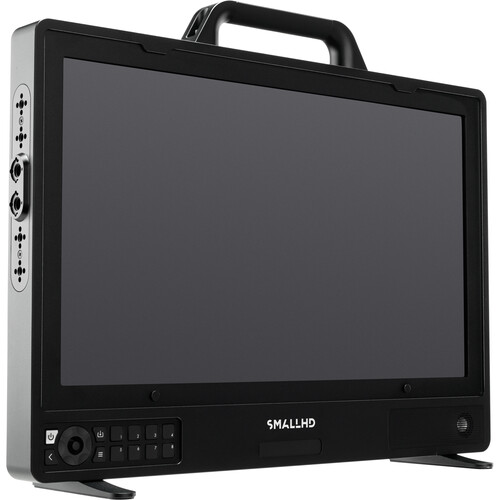

The SmallHD Cine 18 fills the gap between the Cine 13 and Cine 24. It is big enough for video village, bright enough for daylight viewing, and light enough to move around set easily. The 18″ 4K panel delivers 1100 nits with 10-bit color and 100% Rec.709 coverage. A lightweight aluminum unibody chassis keeps it rugged without the bulk of a traditional studio monitor.

Four 12G-SDI inputs and outputs plus HDMI 2.0 handle full 4K workflows, and PageOS provides the full SmallHD toolset of waveform, vectorscope, false color, focus assist, frame guides, and 3D LUTs. Hot-swappable dual battery inputs accept Gold Mount batteries, and two 2-pin accessory power outputs run wireless receivers and other gear.

• 18″ 4K (3840 x 2160) Edge-Lit LCD
• 1100 nits for Daylight Viewing
• 10-Bit Color, 100% Rec.709
• 4x 12G-SDI In / 4x 12G-SDI Out
• HDMI 2.0 Input and Output
• PageOS: Scopes, False Color, Focus Assist, 3D LUTs
• Hot-Swappable Dual Battery Inputs (Gold or V-Mount Plates)
• 2x 2-Pin Accessory Power Outputs
• Lightweight Aluminum Unibody Chassis

• Screen Size: 18.4″ / 46.7 cm Diagonal
• Resolution: 3840 x 2160
• Brightness: 1100 nits
• Contrast Ratio: 1000:1
• Color Depth: 10-Bit (8+2 FRC)
• Color Gamut: 100% Rec.709
• Backlight: Edge-Lit LCD
• Pixel Density: 240 PPI
• Viewing Angle: 178°
• SDI: 4x 12G/6G/3G/HD-SDI In, 4x 12G/6G/3G/HD-SDI Out
• HDMI: 1x HDMI 2.0 In, 1x HDMI 2.0 Out
• Audio: Front Bezel Speakers, 3.5 mm Headphone Jack; Metering up to 8 Channels
• Power Input: 1x 4-Pin XLR, 12 to 34 VDC; Dual Battery Plate Inputs
• Accessory Power: 2x 2-Pin Outputs
• Mounting: VESA, Removable Cheese Sticks, Removable Bottom Mounting Rail
• Software: SmallHD PageOS
• Dimensions (W x H x D): 18.4 x 12.7 x 2.5″ / 467 x 323 x 64 mm
• Weight: 11.15 lb / 5.06 kg

• SmallHD Cine 18 Sun Hood
• WC Ultra Quick Release Articulating Monitor Mount
• SmallHD Cine Dual Gold Mount Battery Plate
• SmallHD Cine 18 15V Power Supply
