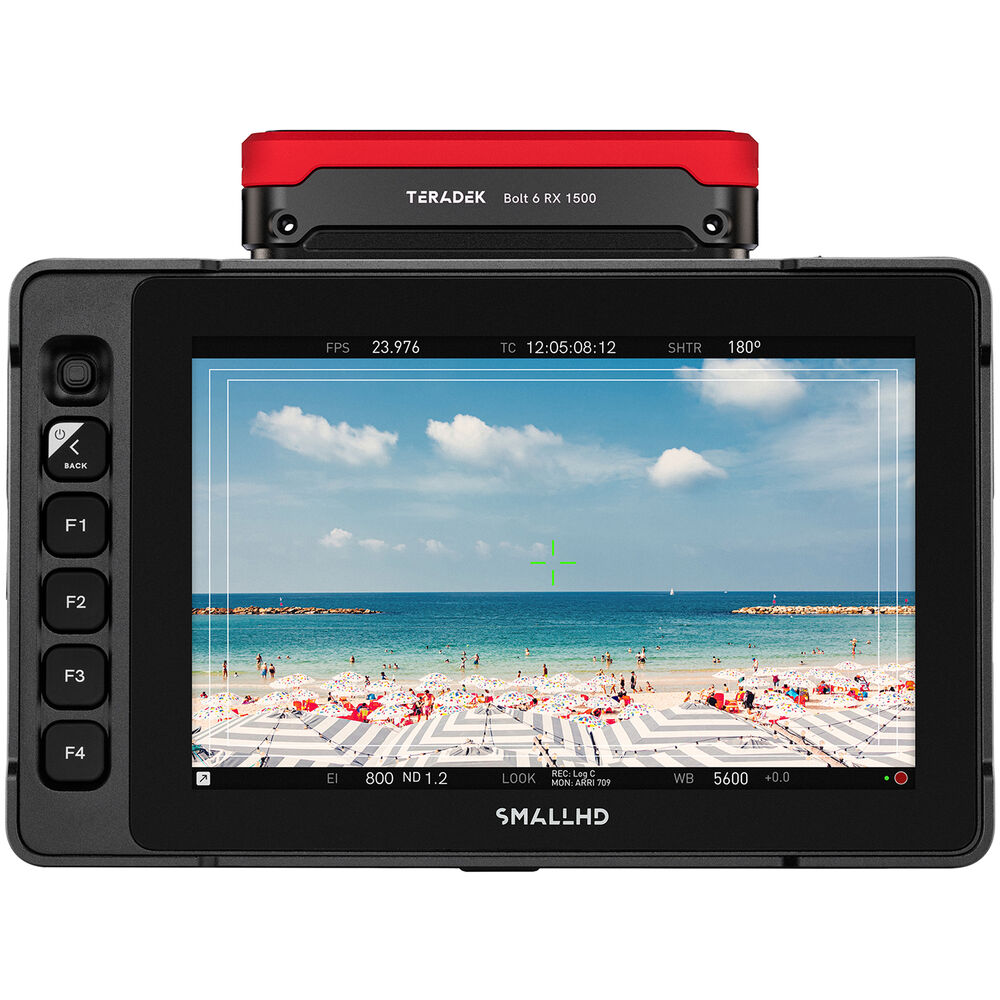

The SmallHD Ultra 7 Bolt 6 RX 1500 integrates a Teradek Bolt 6 receiver directly inside SmallHD’s brightest 7″ monitor. The result is a single, cable-free wireless director’s or focus monitor. The 2300-nit touchscreen stays readable in full sun, and the IP53-rated chassis with raised edges and shock-absorbing bumpers is built for the realities of set.

The internal Bolt 6 receiver uses the 6 GHz band for cleaner connections with less interference. It delivers zero-delay 4K video up to 1,500 feet line of sight and is cross-compatible with all Bolt 4K transmitters. Comes with a Gold mount battery plate.

• Integrated Teradek Bolt 6 1500 Receiver
• Up to 1,500′ Line-of-Sight Range
• No external antennas
• Zero-Delay (<0.001s) 4K Wireless Video
• 6 GHz and 5 GHz Operation
• Cross-Compatible with Bolt 4K Transmitters

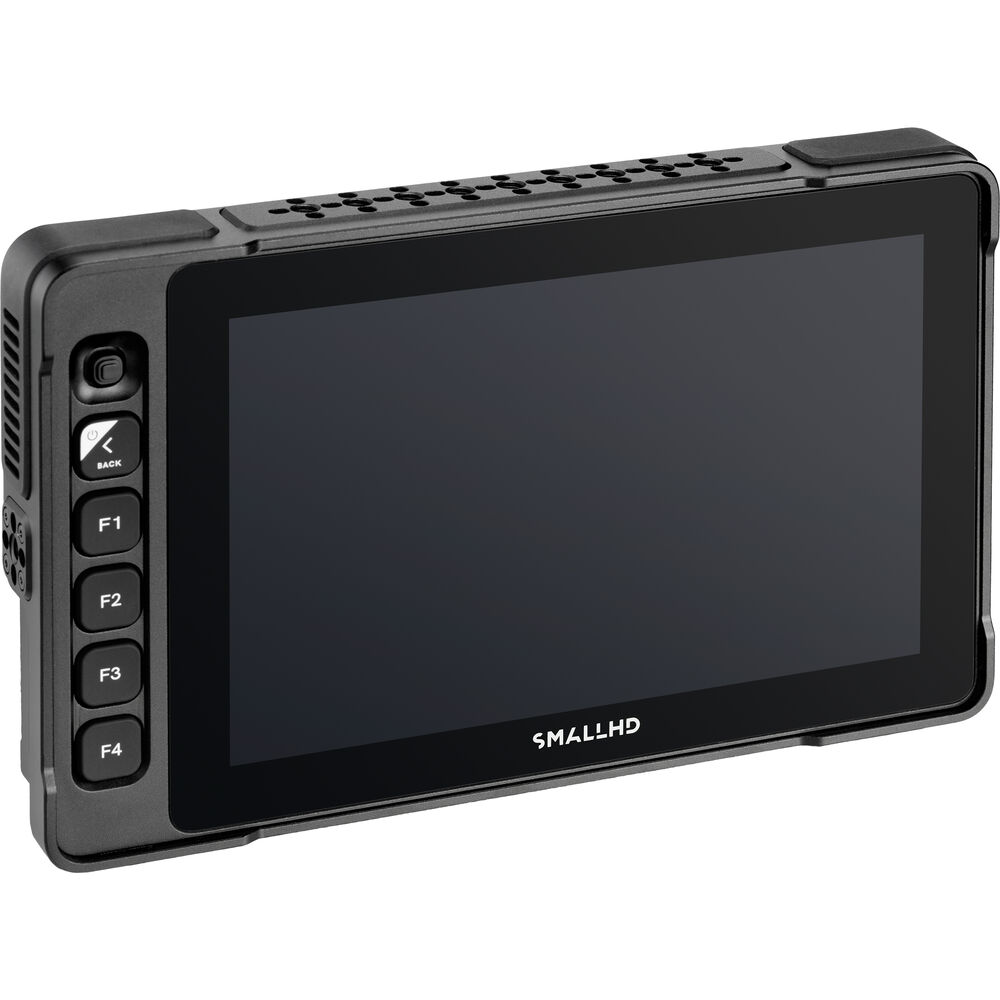

• 7″ 1920 x 1200 Touchscreen, 2300 nits
• IP53 Dust and Water Resistance

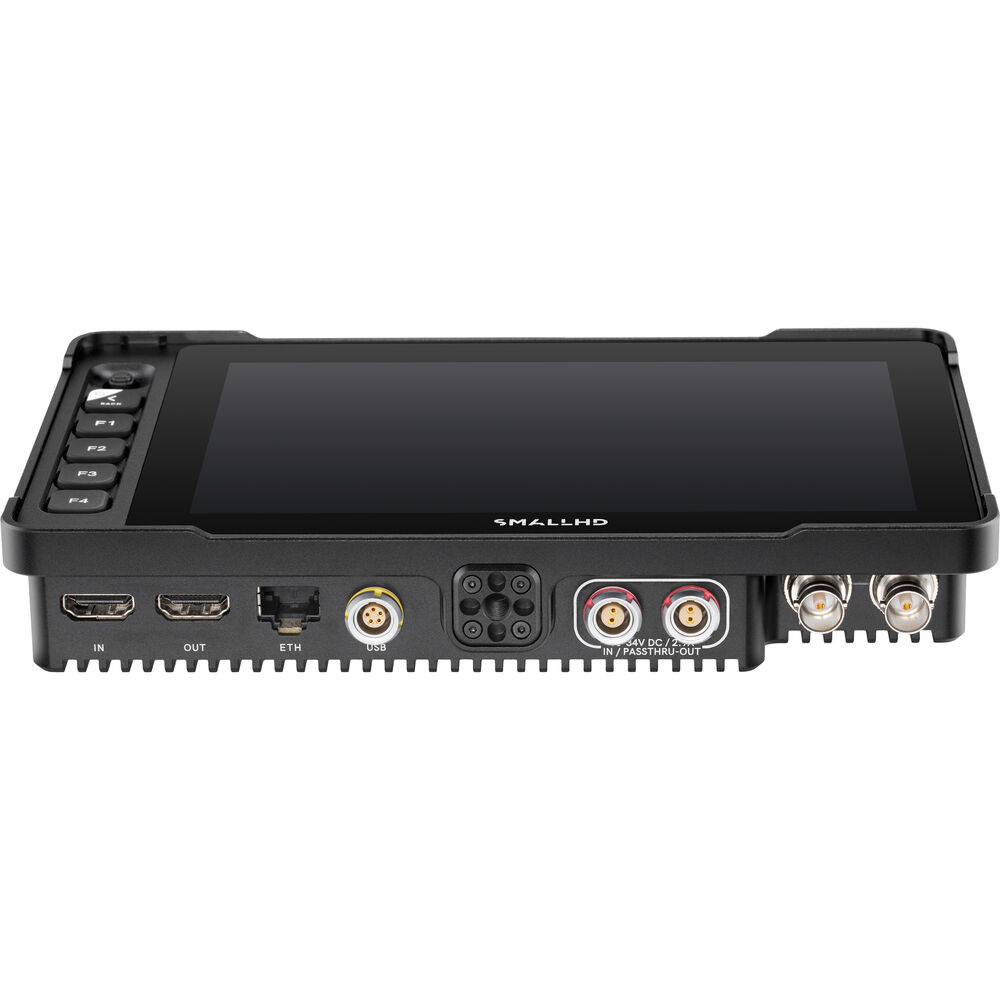

• 6G-SDI and HDMI Inputs, Cross-Conversion
• Includes two director-style side handles
• Front-Facing Custom Function Buttons

• Screen Size: 7.02″ / 17.83 cm
• Resolution: 1920 x 1200
• Brightness: 2300 nits
• Contrast Ratio: 1000:1
• Color: 10-Bit Processing (8-Bit Panel); 95% DCI-P3, 98% Rec.709
• Panel: IPS LCD, LED Edge-Lit, Touchscreen
• SDI: 1x 6G-SDI In, 1x 6G-SDI In/Out (12G BNC Compatible)
• HDMI: 1x In, 1x Out (Full-Size Type-A)
• Cross-Conversion: HDMI to SDI, SDI to HDMI
• Data I/O: 1x RJ45 Ethernet, USB (Camera Control)
• Audio: 1x 3.5 mm Headphone Jack
• Wireless Receiver: Teradek Bolt 6 RX 1500
• Wireless Range: Up to 1,500′ / 457 m Line of Sight
• Latency: <0.001 Second
• Frequencies: 5.190 to 5.230 GHz, 5.755 to 5.795 GHz, 5.945 to 6.425 GHz (Non-DFS); 5.270 to 5.670 GHz (DFS)
• Supported Wireless Resolutions: Up to 4K30, 1080p60
• Encryption: AES-256
• Compatibility: Bolt 4K XT and Bolt 4K LT Transmitters (Limited by Shortest-Range Device); Up to 6 Systems in One Location
• Power Input: 2-Pin Locking, 10 to 34 VDC; Battery Plate 6.0 to 16.8 VDC
• Battery Plate: Gold Mount
• Environmental: IP53; Operating 32 to 104°F / 0 to 40°C
• Dimensions: 8.23 x 5.12 x 1.36″ / 209 x 130 x 35 mm
• Weight: 2 lb / 907 g

• Ultra 7 Bolt 6 Monitor
• Micro Gold Mount Plate
• (2) Handle Grips
• (2) Handle Grip Extensions
• (2) Long Handle Grip Screws
• 3/16 Allen Wrench
• 5mm Allen Wrench
• (2) 2pin Lemo to DTap Power Cable
• Hyperthin HDMI Type (A) – (A) Cable
• Noga Arm
• Rapid Adapter 1/4-20
• Sun Hood & Bottom Flag
• (2) Neck Strap Quick Release
• SmallHD Cushioned Neck Strap
