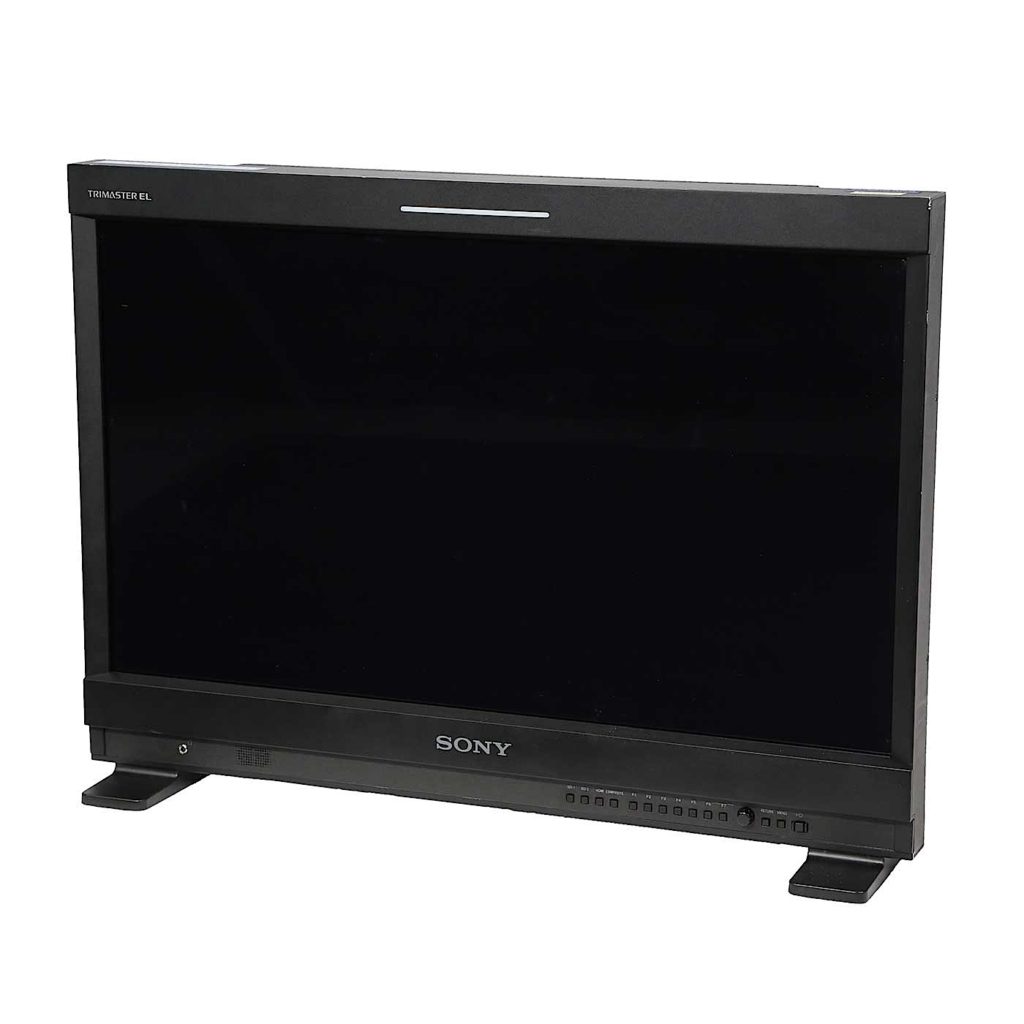

Sony PVM 2541 OLED 25″

The PVM-2541 “All in one” OLED picture monitor delivers outstanding, full-HD RGB 10-bit driver picture quality and professional features in a lightweight, compact design. Flexible mount options make the 25-inch monitor ideal for desktop editing, office viewing, studio monitor walls and OB vans.

The Super Top Emission OLED display panel benefits from TRIMASTER EL technology. It offers superb black performance, wide colour gamut and quick response with virtually no motion blur. By combining the Sony OLED display panel (Full HD, 10-bit driver) and Sony’s OLED processing technologies, the PVM-2541 OLED monitor delivers incredible picture quality.

Picture Performance
Panel: OLED panel
Picture Size (Diagonal): 623.4 mm, 24 5/8 inches
Effective Picture Size (H x V): 543.4 x 305.6 mm
21 1/2 x 12 1/8 inches
Resolution (H x V): 1920 x 1080 pixels (Full HD)
Aspect: 16:9
Pixel Efficiency: 0.9999
Panel Drive: RGB 10-bit
Viewing Angle: (Panel Specification) 89°/89°/89°/89° (typical) (up/down/left/right contrast 10:1)
Normal Scan: 0% scan
Over Scan: 5% over scan
Color Temperature: D65, D93, User
Warm-up Time: Approx. 30 minutes

Composite Input: BNC (x1), 1.0 Vp-p ±3dB sync negative
SDI Input: BNC (x2)
HDMI Input: HDMI (x1) (HDCP correspondence)
Audio Input: Stereo mini jack (x1), -5 dBu 47 kΩs or higher
Parallel Remote: Modular connector 8-pin (x1), (Pin-assignable)
Serial Remote: (LAN) RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)

Composite Output: BNC (x1), Loop-through, with 75 Ω automatic termination
SDI Output: BNC (x1)
Output signal amplitude: 800 mVp-p ±10%
Output impedance: 75 Ω unbalanced
Audio Monitor: Output Stereo mini jack (x1)
Speaker (Built-in) Output: 1.0 W (mono)
Headphone Output: Stereo mini jack (x1)

Power Requirements: 100 V to 240 V AC, 1.4 A to 0.6 A, 50/60 Hz
Power Consumption: Approx. 130 W (max.)
Approx.: 88 W (average power consumption in the default status)
Inrush Current: (1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 40 A peak, 8 A r.m.s. (240V AC), (2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 40 A peak, 8 A r.m.s. (240V AC)
Operating Temperature: 0°C to 35°C (Recommended: 20°C to 30°C), 32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity: 30% to 85% (no condensation)
Storage/Transport Temperature: -20°C to +60°C, -4°F to +140°F
Storage/Transport Humidity: 0% to 90%
Operating/Storage/Transport Pressure: 700 hPa to 1060 hPa
Dimensions (W x H x D): *1 576.0 x 408.8 x 110.0 mm
576.0 x 424.8 x 171.4 mm (with stand)
22 3/4 x 16 1/8 x 4 3/8 inches
22 3/4 x 16 3/4 x 6 3/4 inches (with stand)
