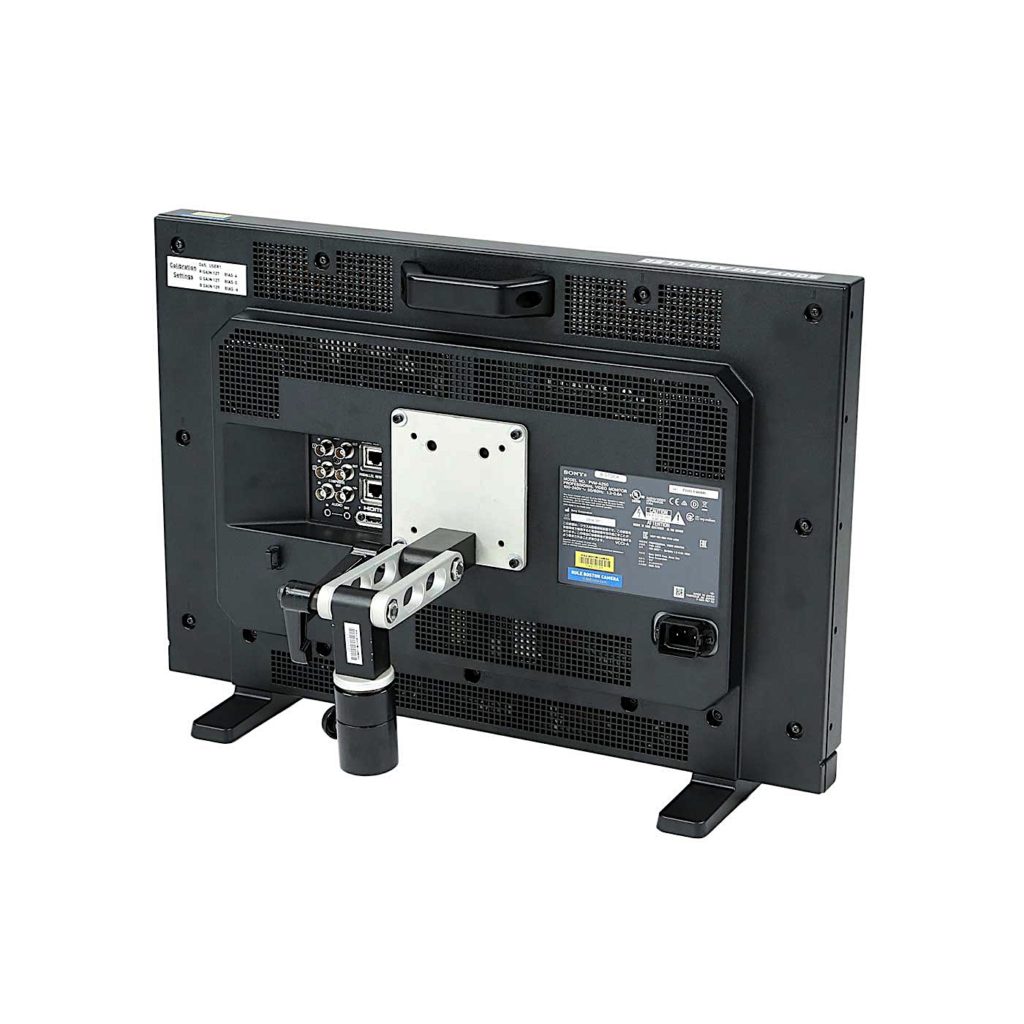

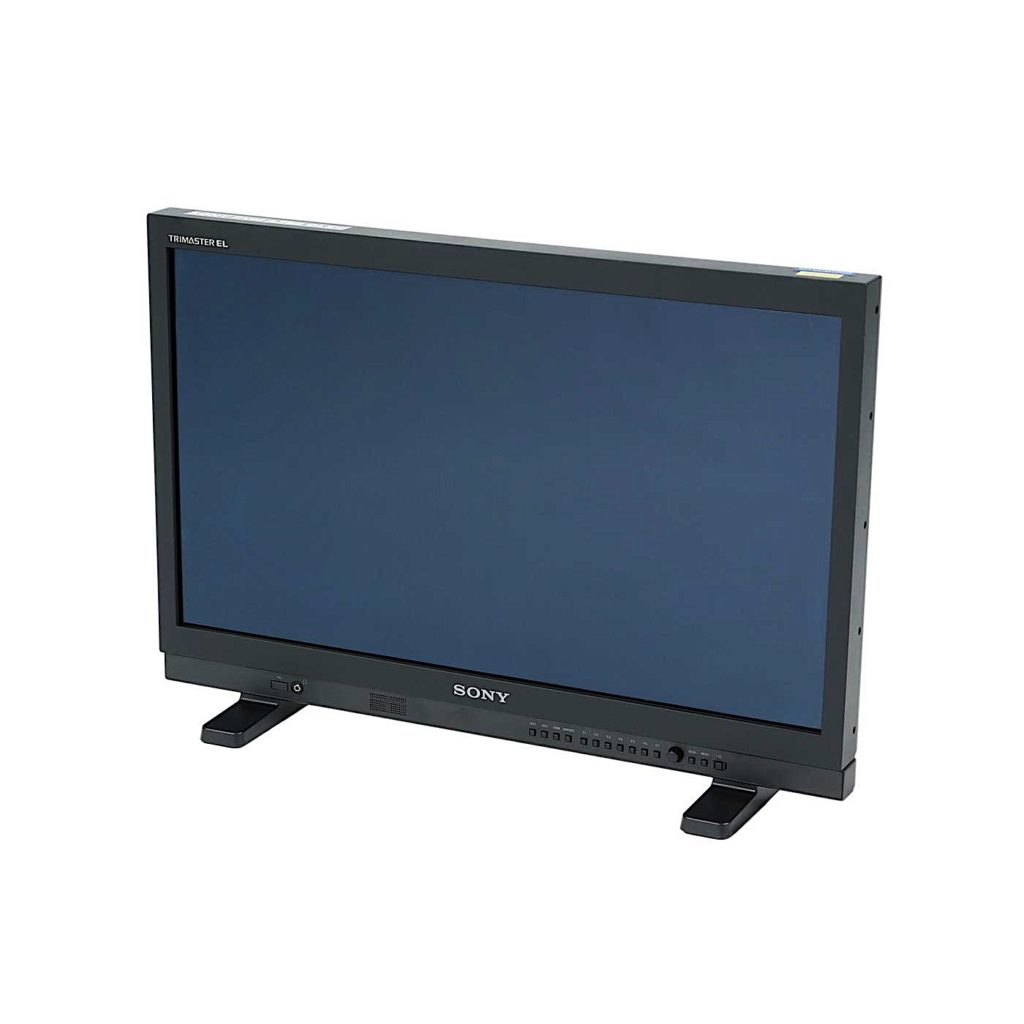

Sony PVM-A250 OLED 25″

The Sony PMW-A250 is a 25″ professional video monitor for on-set HD monitoring.

  • The PVM-A250 and PVM-A170 incorporate the TRIMASTER EL OLED panel, and offer the industry-leading wide viewing angles in the professional flat panel market. And it enables group monitoring – for example, video engineers or colorists can view the display properly from many different angles – and hence allows more efficient content creation activities.
  • New video processing engine with better image accuracy
  • Internal Waveform monitor with zoom and line select features
  • Internal Vectorscope with zoom
  • Both EIA 608 analog and EIA 708 digital closed caption decoder
    Uses the same control system as the PVM 741, PVM 1741A, and PVM 2541A o7 “F” key design for instant access to menu selections
    3G/HDSDI/SDI, HDMI, and composite inputs
  • Multi format input signal support including 480i, 720p, 1080i, and 1080p
  • Frame rates from 23.98 to 60

Picture Performance
Panel: OLED panel

Picture Size (Diagonal): 623.4 mm (24 5/8 inches)

Effective Picture Size (H x V): 543.4 x 305.6 mm (21 1/2 x 12 1/8 inches)

Resolution (H x V): 1920 x 1080 pixels (Full HD)

Aspect: 16:9

Panel Drive: RGB 10-bit

Viewing Angle (Panel Specification) 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)

Composite Input: BNC (x1), 1.0 Vp-p ±3dB sync negative

SDI: Input BNC (x2)

HDMI Input: HDMI (x1) (HDCP correspondence)

Audio Input: Stereo mini jack (x1), -5 dBu 47 kΩ or higher

Parallel Remote: RJ-45 modular connector 8-pin (x1) (Pin-assignable)

Serial Remote (LAN): RJ-45 modular connector (x1) (Ethernet, 10BASE-T/100BASE-TX)

Composite Output: BNC (x1), Loop-through, with 75 Ω automatic termination

SDI Output: BNC (x2)

Output signal amplitude: 800 mVp-p ±10%

Output impedance: 75 Ω unbalanced

Audio Monitor Output : Stereo mini jack (x1)

Speaker (Built-in) Output: 1.0 W (mono)

Headphone Output: Stereo mini jack (x1)

Power Requirements: AC 100 V to 240 V, 1.3 A to 0.6 A, 50/60 Hz

Power Consumption: Approx. 115 W (max.) Approx. 80 W (average power consumption in the default status)

Operating Temperature: 0°C to 35°C (32°F to 95°F)

Recommended: 20°C to 30°C (68°F to 86°F)

Operating Humidity: 30% to 85% (no condensation)

Storage / Transport Temperature: -20°C to +60°C (-4°F to +140°F)

Storage / Transport Humidity: 0% to 90%

Operating / Storage / Transport Pressure: 700 hPa to 1060 hPa

Dimensions (W x H x D): 581.0 x 386.6 x 65.5 mm* (22 7/8 x 15 1/4 x 2 5/8 inches) (without monitor feet)
581.0 x 409.1 x 165.0 mm (22 7/8 x 16 1/8 x 6 1/2 inches) (with monitor feet)

Mass: Approx. 6.1 kg (13 lb 7.2 oz)

Sony PVM-A250 OLED 25″
