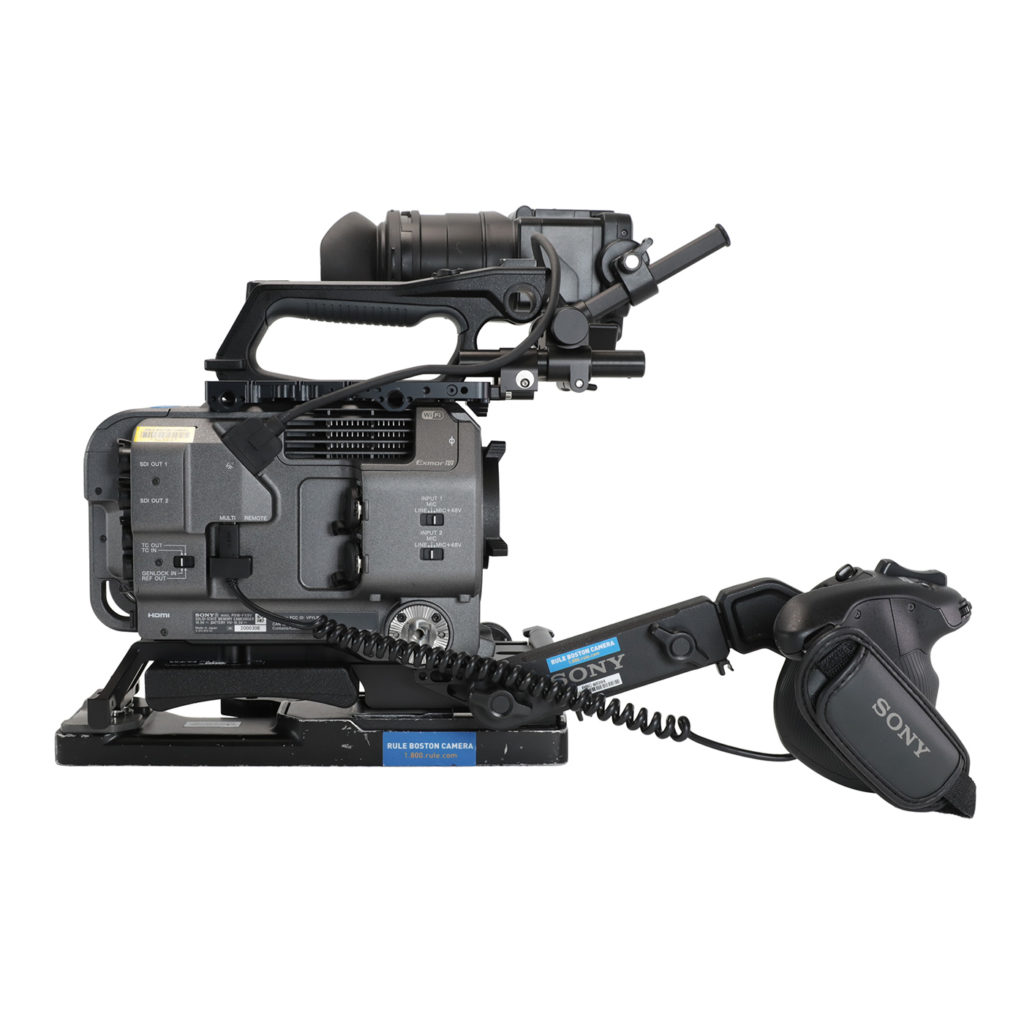

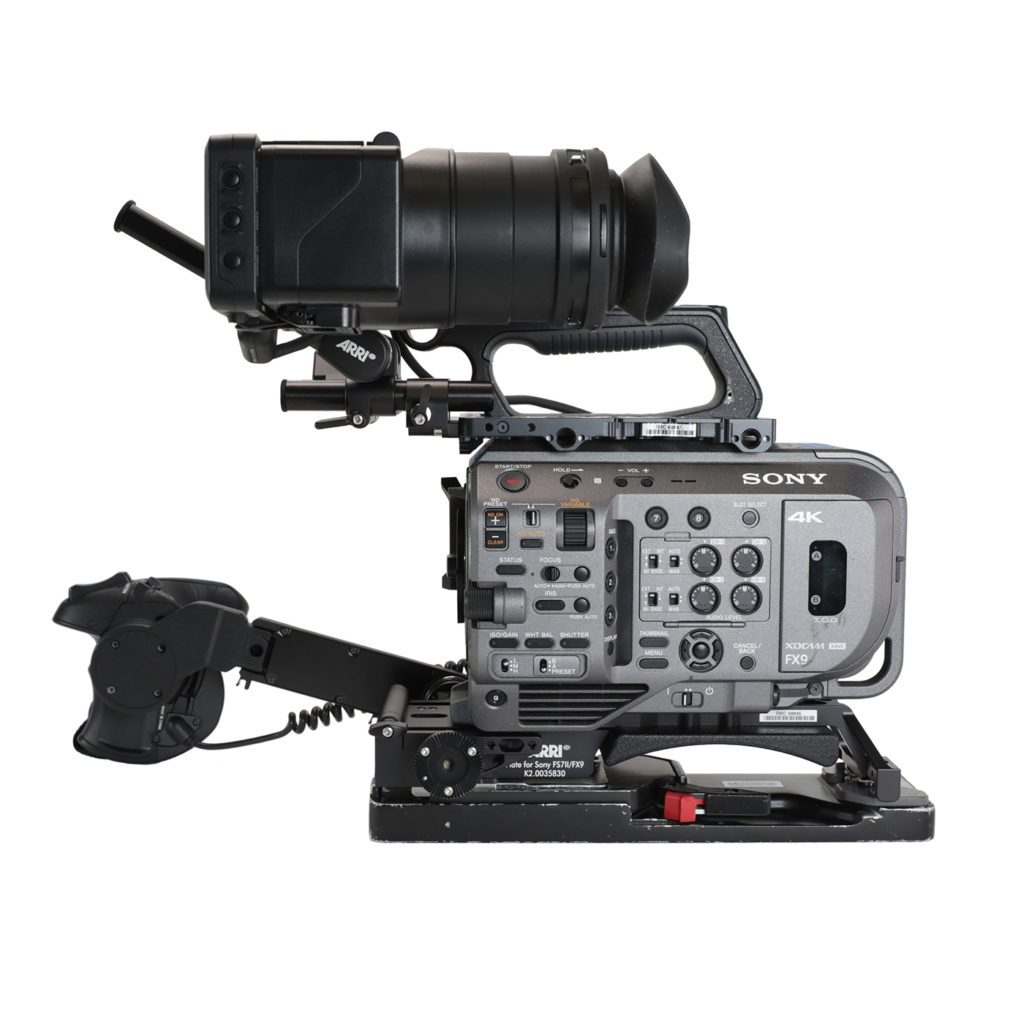

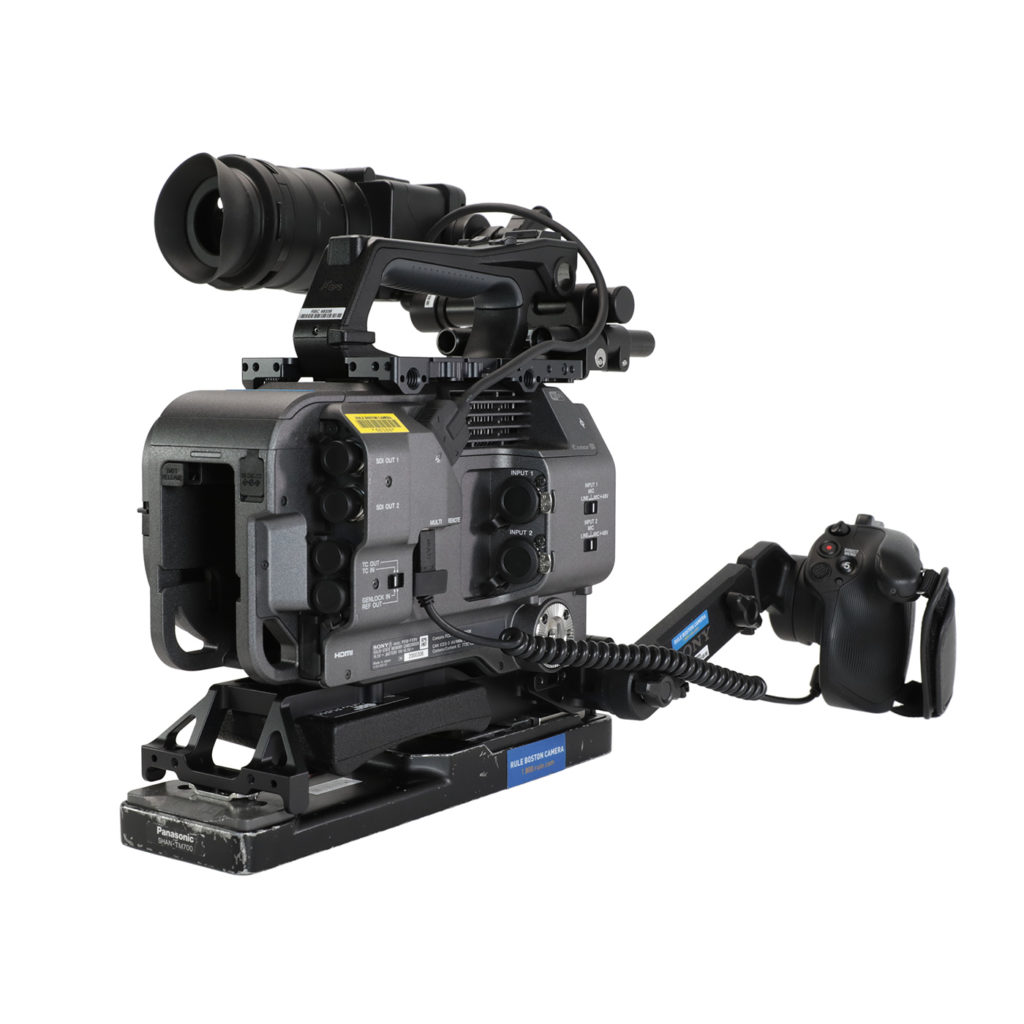

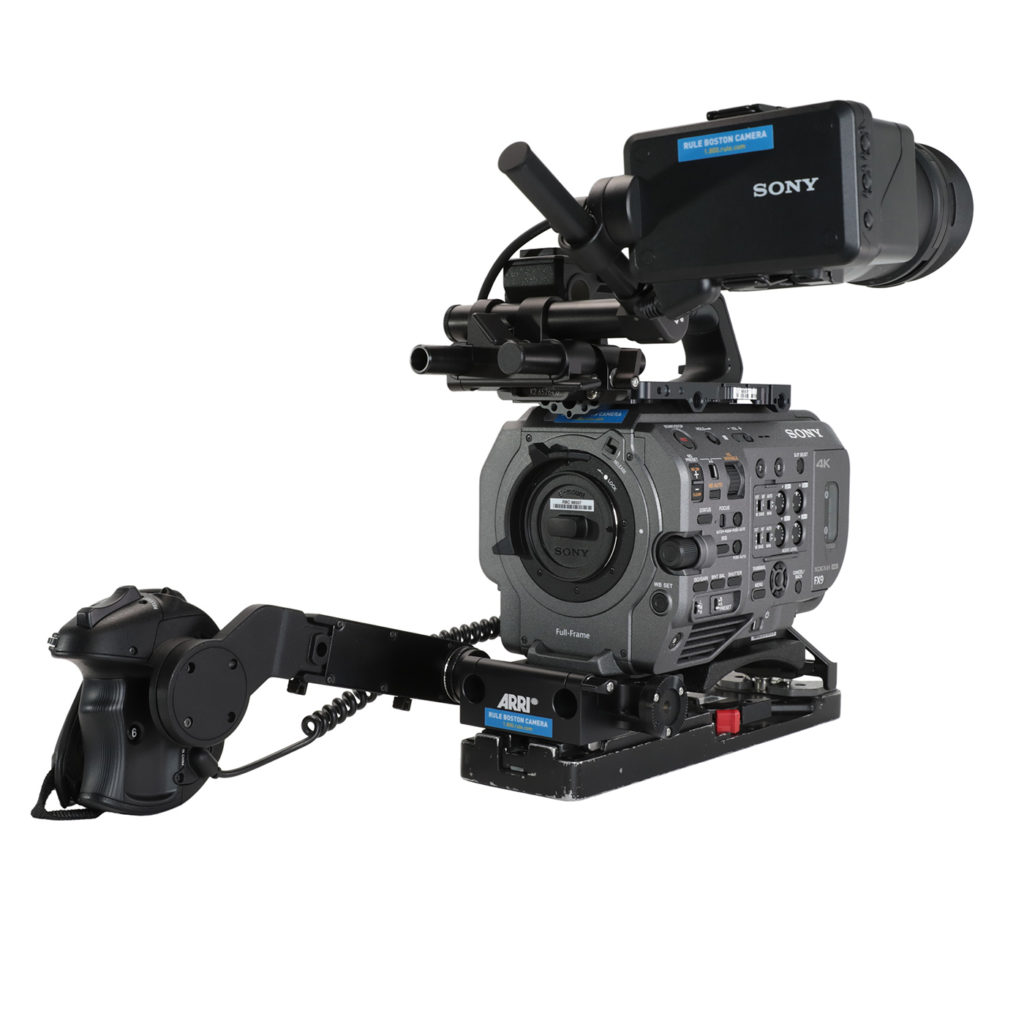

Sony PXW-FX9
The PXW-FX9 Full-Frame 6K sensor camera from Sony includes Fast Hybrid AF, Dual Base ISO and S-Cinetone™ color science. The Full-Frame 6K sensor records in DCI 4K* Ultra with 6K Full-Frame Exmor R sensor for exceptional picture quality.
Features include 15+ stop wide dynamic range with high sensitivity and low noise, 180fps full-HD HFR image from full-frame scanning, enhanced fast hybrid auto focus with 96% x 94% coverage, full-frame electronic variable ND filter, a wide range of exposure adjustment, auto ND, and multiple recording formats.
Equipped with wireless monitoring, control and more via built-in Wi-Fi and free CMB mobile application allows you to upload clips to FTP, FTPS, or other servers, and download clips to mobile devices
Download Manual- 6K Full-Frame Exmor R sensor for stunning picture quality
- 15+ stop wide dynamic range with high sensitivity and low noise
- S-Cinetone inherited from VENICE digital cinema camera
- 180*fps full-HD HFR image from full-frame scanning
- Enhanced Fast Hybrid Auto Focus with 96% x 94% coverage
- E-mount and various choice of e-mount lenses
- Full-Frame Power Zoom Lens comes with FX9K kit in 28-135mm (6.1x zoom), F4 Constant
- Full-Frame Electronic Variable ND Filter
- Wide Range of Exposure Adjustment
- Auto ND
- Multiple recording formats: DCI 4K* / QFHD: XAVC Intra 4:2:2 10bit, XAVC Long 4:2:0 8bit and Full HD: XAVC Intra/Long 4:2:2 10bit, MPEG2-HD 4:2:2 8bit
- Extension Unit XDCA-FX9 with 16bit uncompressed RAW output, Dual Link mobile dongle ports, DWX wireless audio slot, V-lock battery shoe, D-Tap power supply, Ethernet
- Wireless monitoring, control and more with built-in Wi-Fi and free CMB mobile application enable for wireless monitoring and control, uploading clips to FTP, FTPS, or other servers, and downloading clips to mobile devices
- Network Solution with Dual-link reliable network connection, speedy news workflow with XDCAM air cloud service, and high quality Sony QoS live streaming
- Newly designed hand-grip for more comfortable handling
- New HD resolution EVF bundle
*available in future firmware update
Image Sensor
| Sensor Size | 35.7 x 18.8 mm (Full-Frame) |
| Sensor Type | CMOS |
| Sensor Resolution | Actual: 20.5 Megapixel
Effective: 19.0 Megapixel |
| Color Filter | Bayer |
| Shutter Type | Rolling Shutter |
| ISO | 800 to 4000 (Native)
320 to 102,400 (Expanded) |
| Gain | -3 to 18 dB |
| Advertised Dynamic Range | 15 Stops |
| Signal-to-Noise Ratio | 57 dB |
Camera
| Lens Mount | Sony E-Mount |
| Lens Communication | Yes |
| Interchangeable Lens Mount | None |
| Shutter Speed | 1/1 to 1/8000 sec |
| Shutter Angle | 6 to 360° |
| Built-In ND Filter | 4 to 128 Stop Electronic ND Filter |
| Built-In Microphone Type | Mono |
| Media/Memory Card Slot | Slot 1: XQD
Slot 2: XQD Dual Slot: SD/SDHC/SDXC/Memory Stick Duo Hybrid |
| Variable Frame Rates | DCI 4K: 1 to 60 fps
UHD: 1 to 60 fps 1080p: 1 to 180 fps 1080p (Windowed): 1 to 120 fps |
Internal Recording
| Recording Modes | XAVC-I 4:2:2 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (240 to 600 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps (89 to 222 Mb/s) 1920 x 1080i at 50/59.94 fps (112 Mb/s) XAVC-L 4:2:2 10-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps (25 to 50 Mb/s) 1920 x 1080i at 50/59.94 fps (50 Mb/s) MPEG HD422 4:2:2 10-Bit: 1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s) 1920 x 1080i at 50/59.94 fps (50 Mb/s) XAVC Proxy 4:2:0 10-Bit: 1920 x 1080p (9 Mb/s) 1280 x 720p (6 to 9 Mb/s) 640 x 360p (3 Mb/s) |
| Gamma Curve | HDR-HLG, S Cinetone, Sony S-Log 3 |
| Audio Recording | XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
Proxy: 2-Channel AAC Audio |
| Still Image Support | Not Specified by Manufacturer |
External Recording
| Raw Output | External Recorder:
3840 x 2160 2048 x 1080 |
Interfaces
| Video Connectors | 1 x BNC (12G-SDI) Output
1 x BNC (3G-SDI) Output 1 x HDMI (HDMI 2.0) Output |
| Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8″ / 3.5 mm Stereo Headphone Output |
| Other I/O | 1 x BNC Genlock Data Input
1 x BNC Timecode Data Input/Output 1 x 2.5 mm LANC Control 1 x USB Micro-B USB 3.1 Gen 1 Data |
| Wireless Interfaces | 2.4 GHz, 5 GHz Wi-Fi |
Display
| Display Type | Included External Touchscreen LCD |
| Size | 3.5″ |
| Resolution | 2,760,000 Dot |
EVF
| EVF | Optional, Not Included |
Power
| Battery Type | Sony BP-U Series |
| Power Connectors | 1 x Barrel (18 to 20.5 VDC) Input |
| Power Consumption | 35.2 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Accessory Mount | 1 x Multi-Interface Shoe
1 x Cold Shoe Mount 2 x 3/8″-16 Female 6 x 1/4″-20 Female |
| Tripod Mounting Thread | 3/8″-16 Female (Bottom)
1/4″-20 Female (Bottom) |
| Dimensions | 5.75 x 5.61 x 9.02″ / 146 x 142.5 x 229 mm (Without Protrusions) |
