Description

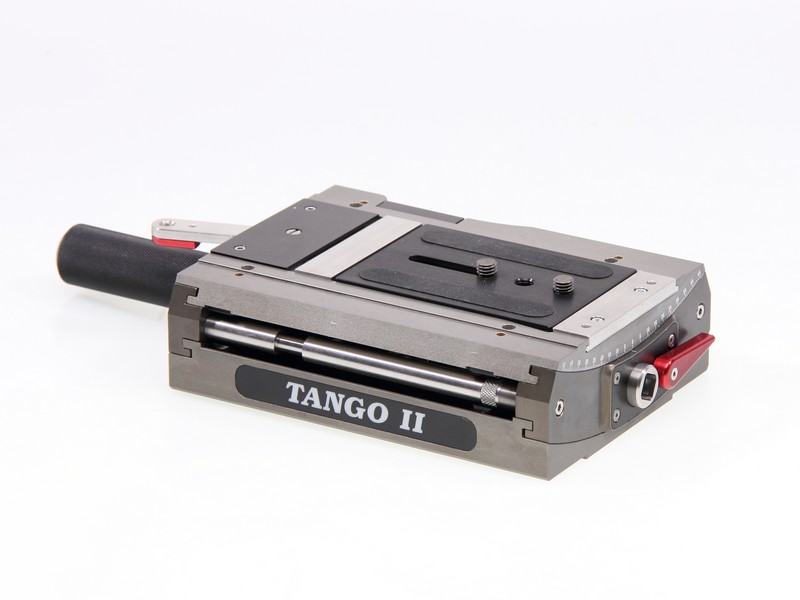

The Tango II swing head allows for quick and easy third axis or “dutch” angle horizon adjustment while on a fluid or geared head. A camera mounts via a large O’Connor-style quick release plate and can swing and lock up anywhere to 90 degrees along the optical axis.
Features
• Large Rotation Angle
• Standard Large Quick Release Plate
• Locking Handle
Specifications
Swing Angle: 90 Degrees (+45 Degree to -45 Degree)
Max Load: 110 lbs. (50 Kg)
Rotation Center Height: 5.7 in. (145mm)
Thickness: 2.24 in. (5.7 cm)
Weight: 7.2 lbs. (3.27 Kg)
Includes
• Tango II Head
• Quick Release Plate
• (2) 3/8-16 Plate Screws
