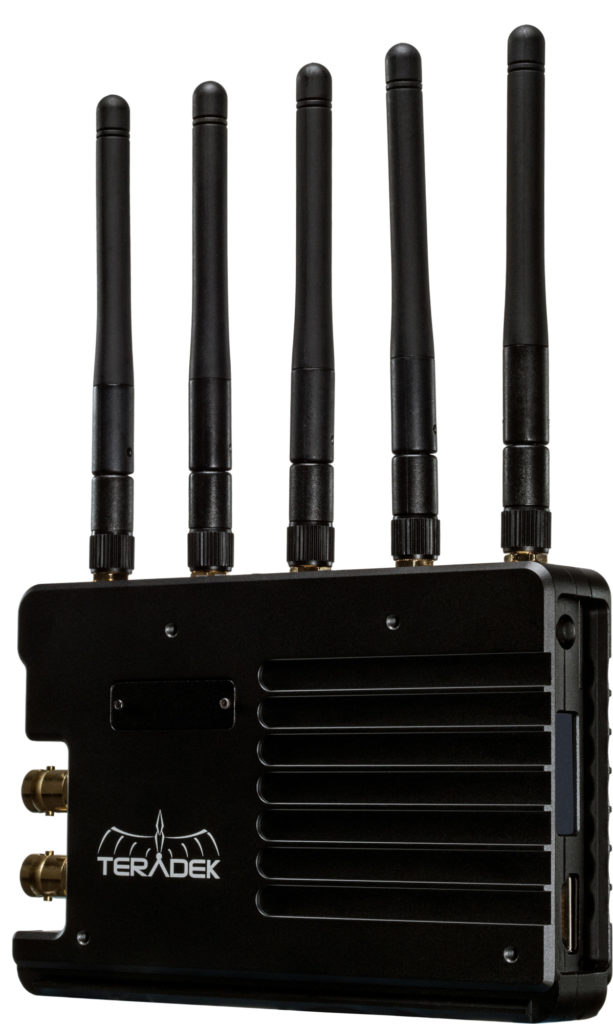

Teradek Bolt 1000 XT Receiver

The Teradek Bolt XT Wireless Transmitters and Receivers send visually lossless video with zero perceptible latency. The Bolt 1000XT series transmits and receives at a distance of up to 1000 feet line of sight.

The Bolt XT lineup is compatible with all 3rd generation Bolts including the Sidekick II, 703 Bolt, and the Bolt LT line. Transmitters and receivers are easily mounted to articulating arms or plates and are powered via 2-pin Lemo to a 12V source. Receivers additionally have an attached gold mount pass through plate for easy powering and mounting on accessories like monitors.

Each transmitter supports up to four receivers. Built-in AES 128 encryption protects your video from prying eyes, while a built in spectrum analyzer and noise rejection help keep your video clean even when working around 2.4 and 5.8 GHz wireless signals.

Support for custom 3D LUTs, format conversion, time code, and start stop triggers make the whole XT line up very production friendly.

  • Compatibility with Bolt XT, LT, Sidekick II, and 703 Bolt
  • The receiver includes built-in cross conversion and Teradek’s proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5 GHz spectrum analyzer to help you find a clean signal pathway.
  • SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers.
  • OLED Screen with Menu Joystick Navigation.
  • 1/4″-20 and M3 mounting points
  • 3G SDI Input/Output
  • HDMI Input/Output
  • SDI Data Support: metadata, timecode, and start/stop flags from select camera manufacturers.
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled), HDMI: RGB 4:4:4, 8-bit
  • Latency: <0.001 seconds (Tx to Rx without format conversion)
  • Supported Resolutions: 1080p, 1080PsF, 1080i, 720p, 576P (via HDMI), 480p(via HDMI), 576i, 480i:
  • Color Correction: CDL/1024 1D LUT (supports 10-bit color), 33x33x33 3D LUT (supports 10-bit color)
  • Audio Compression: 48 kHz, 24-bit PCM
  • Encryption: AES-128
  • Range: Up to 1000′ line of sight
  • Power Input: 2-pin connector, gold mount pass through plate (receiver only)
  • Power Consumption: Nominal 9 W (measured at 1080p60)
  • 1/4″-20 threaded mounting hole (TX)
  • 3/8″-16 threaded mounting hole (RX)
  • Dimensions: 3.5 x 5.4 x 0.95″ / 8.89 x 13.72 x 2.41 cm
  • Weight: 13.3 oz / 377 g

Teradek Bolt 1000 XT Receiver
RX Antennas (5)
AC Power Supply
A/B DTap to 2 Pin Lemo Cable
Articulating Arm
NATO Clamp
3/8” to Baby Pin Rapid Adapter
