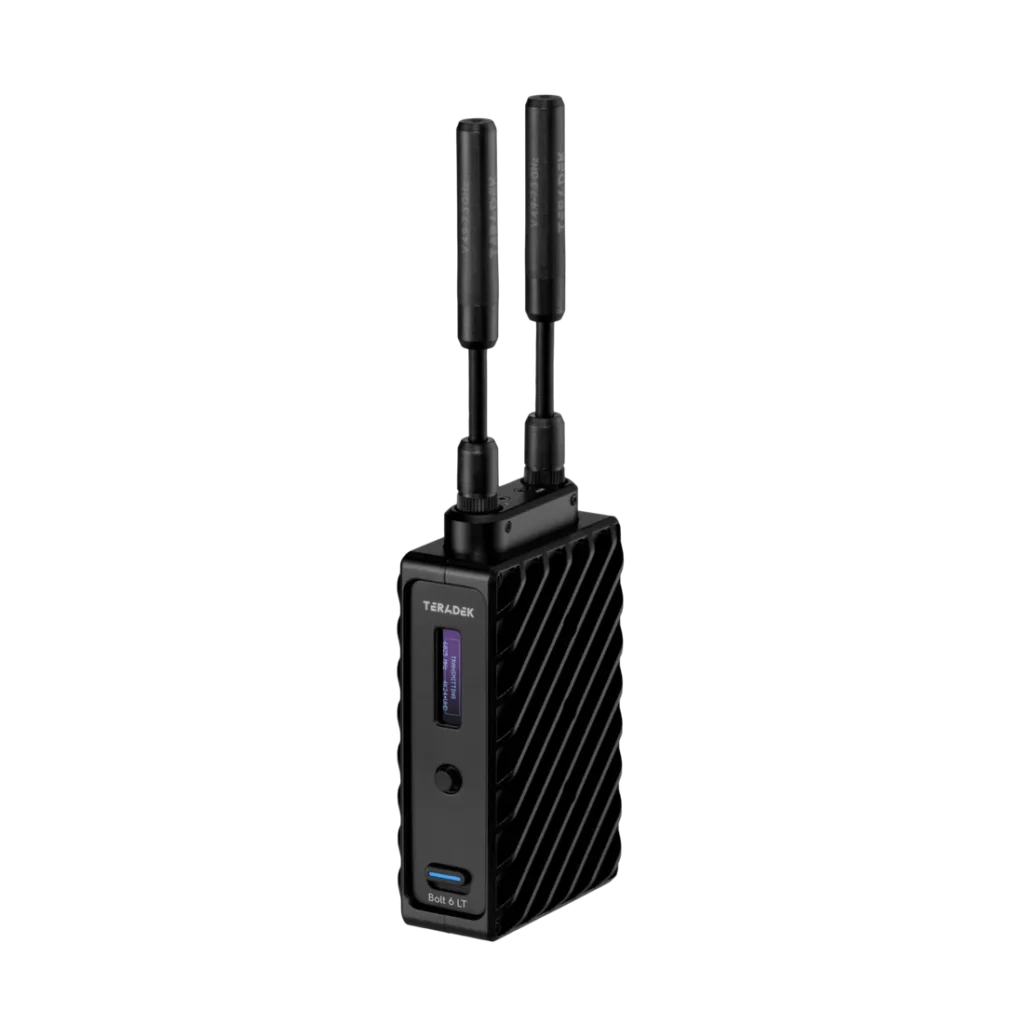

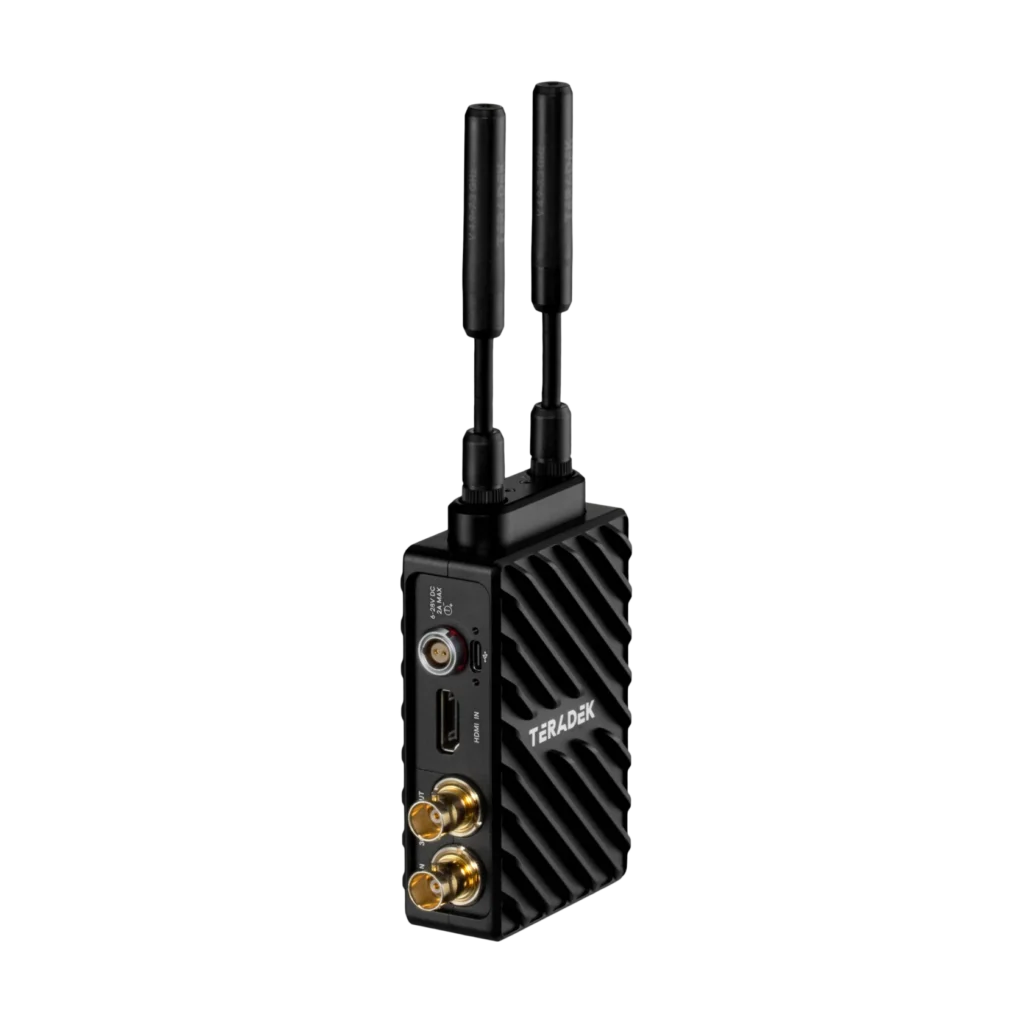

The Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter sends lossless HD video up to 1500′ . With the same form factor as the Bolt 4K LT 1500, this transmitter can take video in from HDMI or 3G-SDI sources with 10-bit HDR support. It operates in the 6 GHz wireless band. The transmitter unit provides a powerful signal that can travel up to 1500′ line of sight. It also features a bright OLED display and an SDI loop output.

The transmitter supports transmission of up to UHD 4K30 video to up to six receivers. Built-in AES-256 encryption keeps your video secure, while noise rejection and improved long-range mode keeps the transmission clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it does require a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4″-20 and M3 mounting threads to mount the device on a variety of cameras, cages, or rigs.

• Supports 6 GHz Frequency Band
• Transmit Video up to 1500′ Line of Sight
• 3G-SDI and HDMI Input, SDI Output
• Transmit to up to (6) receivers
• UHD 4K30 10-Bit 4:2:2 HDR Support
• Compatible with all Bolt 4K 5G Devices
• AES-256 Encryption, 2 x Antennas
• Bluetooth Mobile App, Spectrum Analyzer
