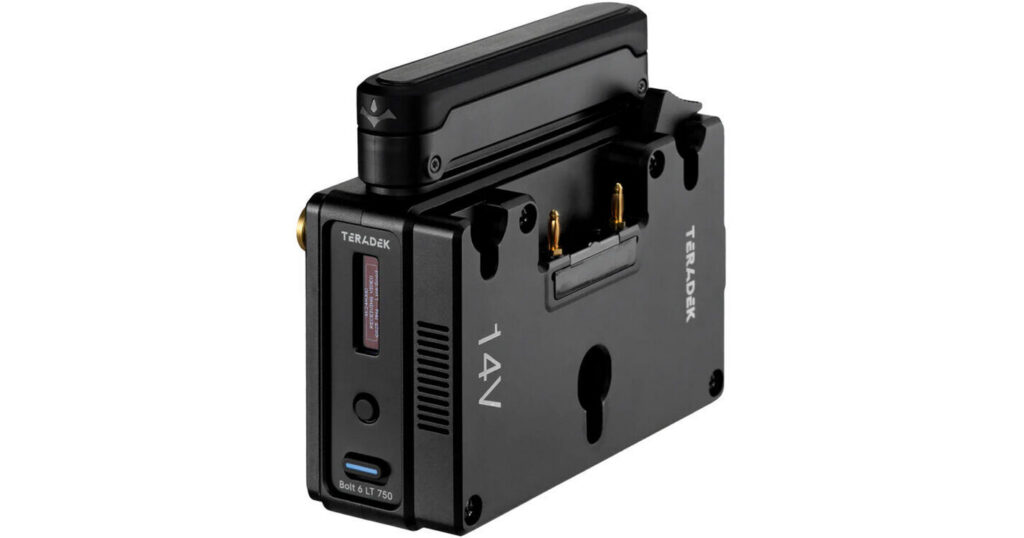

Teradek Bolt 6 750 LT Receiver

description features specifications includes

Receive lossless HD video from up to 750′ away along the line of sight with the Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver with Internal Antennas. This unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR and output video via an HDMI or 3G-SDI port. It comes in a sleek form with all antennas tucked inside. It features a bright OLED display and support for the 6 GHz wireless band. The receiver comes with a Gold mount battery plate.

This receiver is cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum and works with Bolt 6 series devices using the 6 GHz frequency band. It also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

  • Sleek Design with Internal Antennas
  • Supports 6 GHz Frequency Band
  • Receive Video from up to 750′ Away
  • SDI and HDMI Outputs, Zero Delay
  • Receive 4K30 Video, 10-Bit 4:2:2
  • Compatible with All Bolt 4K Transmitters
  • AES-256 Encryption
  • Bluetooth Mobile App, Spectrum Analyzer
Video Outputs: 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle
SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx: <0.001sec
Output Video Scaling: No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 6 XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Audio Output: Embedded SDI/HDMI Audio Input (2 Channel)
Dimensions: 4.8″ x 4.2″ x 1″ (122.4mm x 106.2mm x 27.1mm)
Weight: 10.7 oz (304 g)
  • Bolt 6 750 LT Receiver
  • Bolt 6 LT 1.5A Power Supply
  • (2) DTap To 2Pin Lemo Power Cable
  • Noga Swing Arm
  • Rapid Adapter 1/4-20
