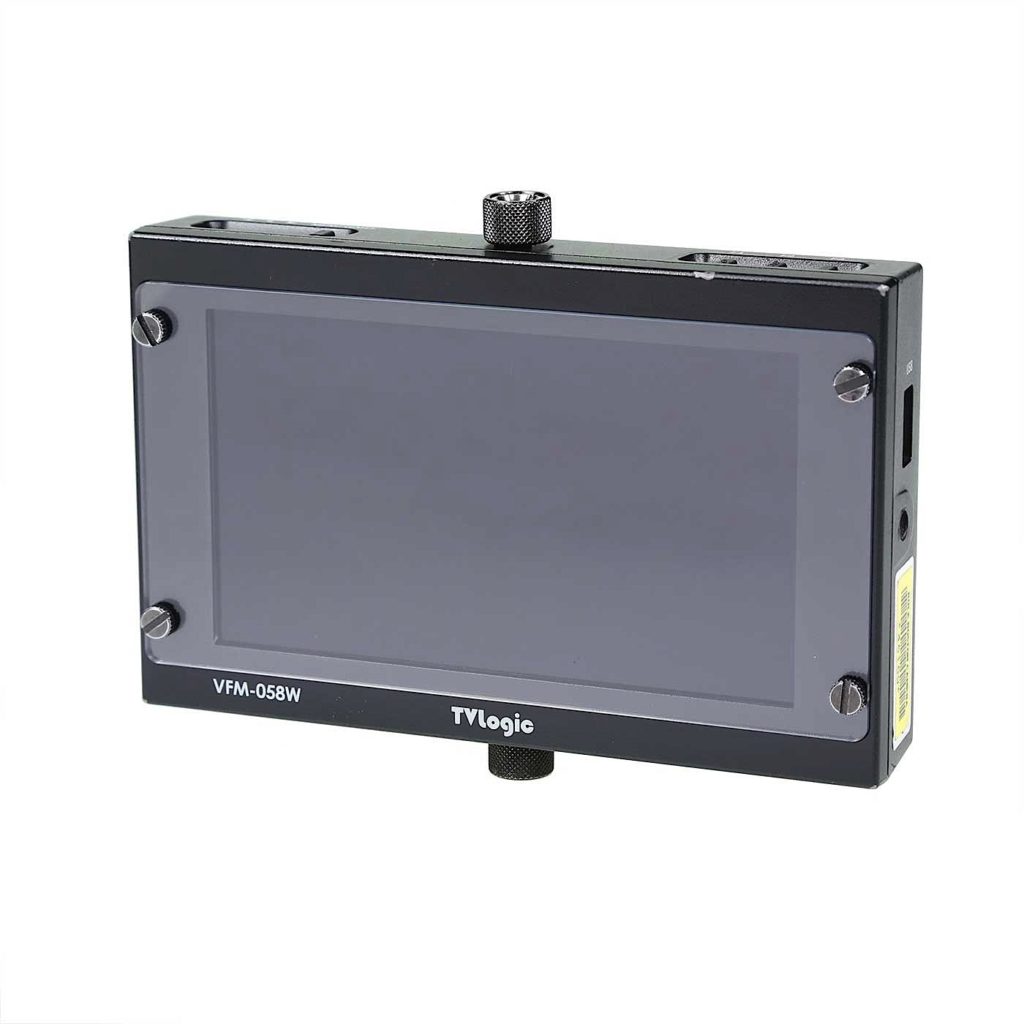

TVLogic VFM-058W 5.5″

The VFM-058W, the lightweight viewfinder monitor, offers an outstanding picture quality with 5.5” LCD, and Full HD resolution of 1920 x 1080. Innovative and ergonomic design of VFM-058W makes you comfortable in the shooting environment and its light solid magnesium case achieves the highest efficiency of ventilation. The VFM-058W supports multi-formats including 3G/HD/SD-SDI and HDMI that offers a wide application range from DSLR cameras to Pro camcorder for broadcasting and movie shooting.

Download Manual
  • 5.5”1920×1080 (16:9) Resolution
  • HDMI SDI cross conversion
  • Audio Level Meter Display
  • Max Brightness On / Off
  • Temperature Adaptive Color
  • Luma(Y’) Zone Check
  • 3G-SDI Level A/B
  • Tools include: Focus Assist, H/V Flip, Marker, Time Code, User Aspect, Various Scan modes, Waveform/Vectorscope, LUT, amongst others

Size 5.5″
Resolution 1920 X 1080 (16 : 9)
Pixe Pitch 0.063mm
Color Depth 16.7M
Viewing Angle 160°(H) / 160°(V)
Luminance 450cd/m2
Contrast Ratio 1000:1
Display Area 121(H) × 68(V) mm

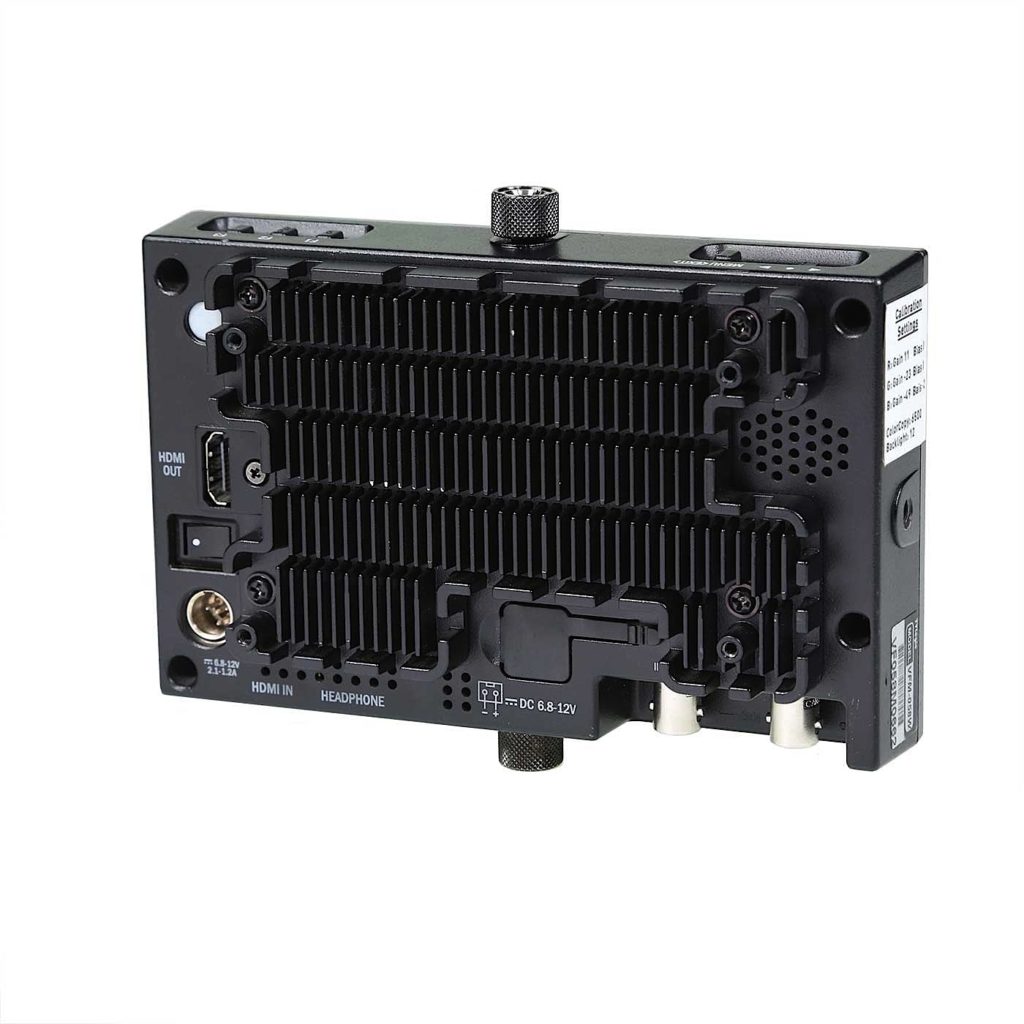

1 X BNC 3G-SDI A Channel Input
1 X BNC 3G-SDI Output
1 X HDMI HDMI Output
Audio In Embedded Audio/Analog Stereo (Phone Jack)
Audio Out Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Temperature Adaptive Color, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom

TVLogic Monitor
Noga Articulating Arm
UL2 Hotshoe Wedge
(2) TA4F to A/B DTap Power Cable
HDMI Type (A) – (A) Cable
(2) HDMI Type (A) – Mini (C) Cable
